步进电机
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 线圈类型 | 额定电压 | 电流额定值（安培） | 每转步数 | 步进角度 | 精度 | 保持扭矩（oz-in / mNm） | 尺寸 / 尺寸 | NEMA 框架尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 工作温度 | 线圈电阻 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X8718-097-50-ROSTEPPER MOTOR - NEMA 34 Lin Engineering |
5 |
|
规格书 |
X8718 | Box | Active | Hybrid | Bipolar | 48VDC | 5 A | 200.0 | 1.8° | - | 1275 / 9000 | Square - 3.380" x 3.380" (85.85mm x 85.85mm) | 34 | 0.315" (8.00mm) | 1.250" (31.75mm) | 2.740" (69.60mm) | Wire Leads | -20°C ~ 50°C | 610 mOhms | Shaft Key Included |
|
|
X8718-126-50-ROSTEPPER MOTOR - NEMA 34 Lin Engineering |
2 |
|
规格书 |
X8718 | Box | Active | Hybrid | Bipolar | 48VDC | 5 A | 200.0 | 1.8° | - | 1741.8 / 12300 | Square - 3.380" x 3.380" (85.85mm x 85.85mm) | 34 | 0.315" (8.00mm) | 1.250" (31.75mm) | 2.740" (69.60mm) | Wire Leads | -20°C ~ 50°C | 0.72 Ohms | Shaft Key Included |
|
|
X8718-157-50-ROSTEPPER MOTOR - NEMA 34 Lin Engineering |
5 |
|
规格书 |
X8718 | Box | Active | Hybrid | Bipolar | 48VDC | 5 A | 200.0 | 1.8° | - | 2124.2 / 15000 | Square - 3.380" x 3.380" (85.85mm x 85.85mm) | 34 | 0.315" (8.00mm) | 1.250" (31.75mm) | 2.740" (69.60mm) | Wire Leads | -20°C ~ 50°C | 900 mOhms | Shaft Key Included |
|
5718X-15P-HP10NEMA 23 - 1 STACK STEPPER + 10:1 Lin Engineering |
9 |
|
规格书 |
5718 | Box | Active | Hybrid | Bipolar | 24VDC | - | 4000.0 | - | - | 1,000 / 7,060 | Square - 2.25" x 2.25" (57.20mm x 57.20mm) | 23 | 0.63" (16mm) | 1.16" (29.5mm) | 1.949" (49.50mm) | Wire Leads | -20°C ~ 50°C | 300 mOhms | Shaft Key Included |
|
|
5718L-01P-HP10NEMA 23 - 3 STACK STEPPER + 10:1 Lin Engineering |
9 |
|
规格书 |
5718 | Box | Active | Hybrid | Bipolar | 24VDC | - | 4000.0 | - | - | 2,939 / 20,750 | Square - 2.25" x 2.25" (57.20mm x 57.20mm) | 23 | 0.63" (16mm) | 1.16" (29.5mm) | 1.949" (49.50mm) | Wire Leads | -20°C ~ 50°C | 1.1 Ohms | Shaft Key Included |
|
|
5718M-02P-HP50NEMA 23 - 2 STACK STEPPER + 50:1 Lin Engineering |
8 |
|
规格书 |
5718 | Box | Active | Hybrid | Bipolar | 24VDC | - | 20000.0 | - | - | 8,650 / 61,065 | Square - 2.25" x 2.25" (57.20mm x 57.20mm) | 23 | 0.63" (16mm) | 1.16" (29.5mm) | 1.949" (49.50mm) | Wire Leads | -20°C ~ 50°C | 500 mOhms | Shaft Key Included |
|
|

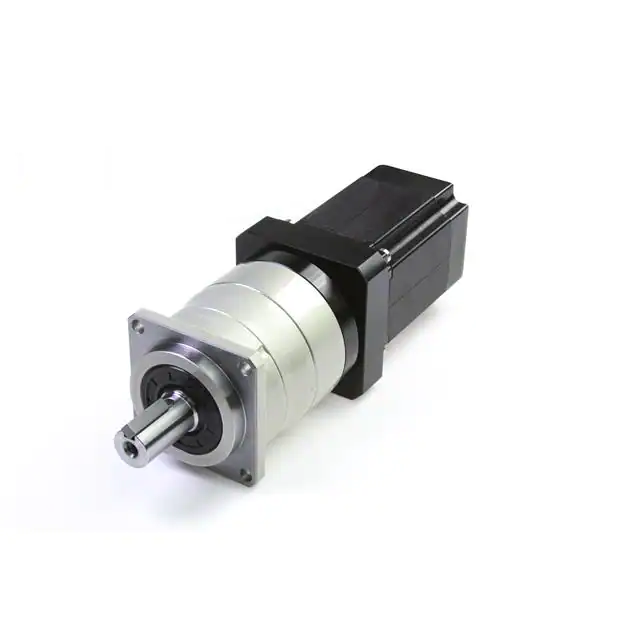

5718L-01P-HP50NEMA 23 - 3 STACK STEPPER + 50:1 Lin Engineering |
9 |
|
规格书 |
5718 | Box | Active | Hybrid | Bipolar | 24VDC | - | 20000.0 | 0.036° | - | 919 / 6488 | Square - 2.25" x 2.25" (57.20mm x 57.20mm) | 23 | 0.63" (16mm) | 1.16" (29.5mm) | 1.949" (49.50mm) | Wire Leads | -20°C ~ 50°C | 1.1 Ohms | Shaft Key Included |
|
|
5718L-01P-HP20NEMA 23 - 3 STACK STEPPER + 20:1 Lin Engineering |
8 |
|
规格书 |
5718 | Box | Active | Hybrid | Bipolar | 24VDC | - | 8000.0 | - | - | 5,878 / 41,500 | Square - 2.25" x 2.25" (57.20mm x 57.20mm) | 23 | 0.63" (16mm) | 1.16" (29.5mm) | 1.949" (49.50mm) | Wire Leads | -20°C ~ 50°C | 1.1 Ohms | Shaft Key Included |
|
|
5718X-15P-HP05NEMA 23 - 1 STACK STEPPER + 5:1 Lin Engineering |
10 |
|
规格书 |
5718 | Box | Active | Hybrid | Bipolar | 24VDC | - | 2000.0 | - | - | 501 / 3,535 | Square - 2.25" x 2.25" (57.20mm x 57.20mm) | 23 | 0.63" (16mm) | 1.16" (29.5mm) | 1.949" (49.50mm) | Wire Leads | -20°C ~ 50°C | 300 mOhms | Shaft Key Included |
|
|
5718M-02P-HP05NEMA 23 - 2 STACK STEPPER + 5:1 Lin Engineering |
10 |
|
规格书 |
5718 | Box | Active | Hybrid | Bipolar | 24VDC | - | 2000.0 | - | - | 866 / 6,114 | Square - 2.25" x 2.25" (57.20mm x 57.20mm) | 23 | 0.63" (16mm) | 1.16" (29.5mm) | 1.949" (49.50mm) | Wire Leads | -20°C ~ 50°C | 500 mOhms | Shaft Key Included |
