特殊用途隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 通道数 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 电流 - 输出/通道 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-4200-000EOPTOISO 3.75KV RECEIVER 8DIP Broadcom Limited |
559 |
|
规格书 |

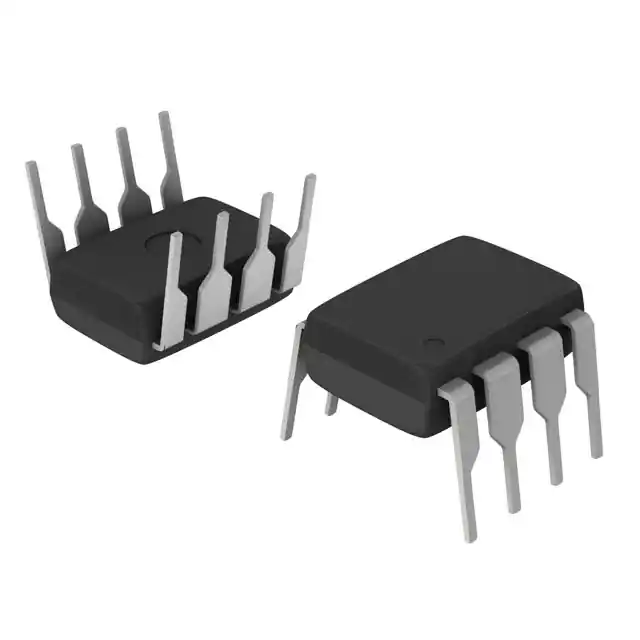

- | 8-DIP (0.300", 7.62mm) | Tube | Active | Current Loop Receiver | 1 | 3750Vrms | 1kV/µs | DC | 25mA | 1.6µs, 1µs | 55ns, 15ns | - | - | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
|
|
HCPL-4100-000EOPTOISO 3.75KV TRANSMITTER 8DIP Broadcom Limited |
196 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Current Loop Transmitter | 1 | 3750Vrms | 1kV/µs | Logic | 30mA | 1.6µs, 1µs | 16ns, 23ns | - | - | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
|
HCPL-4200-500EOPTOISO 3.75KV RECEIVER 8DIP GW Broadcom Limited |
3,872 |
|
规格书 |

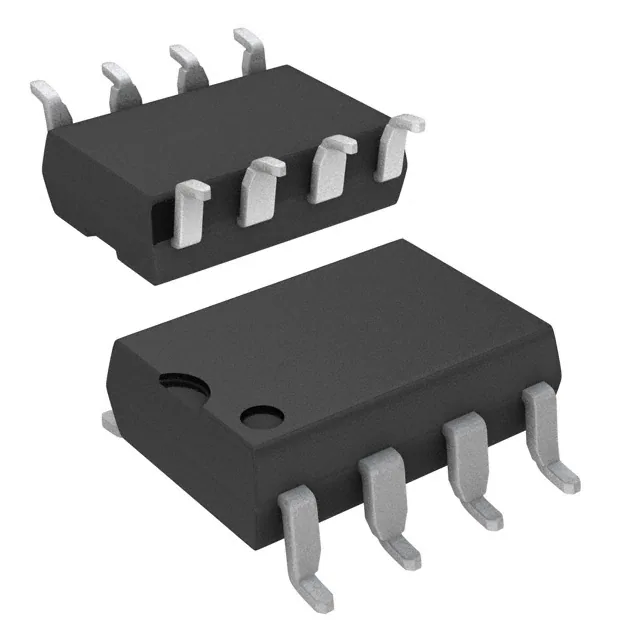

- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Current Loop Receiver | 1 | 3750Vrms | 1kV/µs | DC | 25mA | 1.6µs, 1µs | 55ns, 15ns | - | - | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
|
HCPL-4100-500EOPTOISO 3.75KV TRNSMTR 8DIP GW Broadcom Limited |
1,350 |
|
规格书 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Current Loop Transmitter | 1 | 3750Vrms | 1kV/µs | Logic | 30mA | 1.6µs, 1µs | 16ns, 23ns | - | - | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
|
HCPL-4100-300EOPTOISO 3.75KV TRNSMTR 8DIP GW Broadcom Limited |
375 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | Current Loop Transmitter | 1 | 3750Vrms | 1kV/µs | Logic | 30mA | 1.6µs, 1µs | 16ns, 23ns | - | - | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
|
HSSR-7110#300OPTOISO 1.5KV PWR MOSFET 8SMD GW Broadcom Limited |
302 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | Power MOSFET | 1 | 1500VDC | - | DC | 1.6A | 6ms, 0.25ms | - | 1.24 V | 20 mA | - | -55°C ~ 125°C | Surface Mount | 8-SMD Gull Wing | - |
|
|
HSSR-7111OPTOISO 1.5KV POWER MOSFET 8DIP Broadcom Limited |
47 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Power MOSFET | 1 | 1500VDC | - | DC | 1.6A | 6ms, 0.25ms | - | 1.24 V | 20 mA | - | -55°C ~ 125°C | Through Hole | 8-DIP | - |
|
|
HCPL-2602-300EOPTOISO 3.75KV LINE RX 8DIP GW Broadcom Limited |
668 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | Line Receiver | 1 | 3750Vrms | 1kV/µs | AC, DC | 50mA | 75ns, 75ns | 24ns, 10ns | 2.3 V | 60 mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
|
HCPL-4200OPTOISO 3.75KV RECEIVER 8DIP Broadcom Limited |
305 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Current Loop Receiver | 1 | 3750Vrms | 1kV/µs | DC | 25mA | 1.6µs, 1µs | 55ns, 15ns | - | - | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
|
|
HSSR-7112-300OPTOISO 1.5KV PWR MOSFET 8SMD GW Broadcom Limited |
36 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | Power MOSFET | 1 | 1500VDC | - | DC | 1.6A | 6ms, 0.25ms | - | 1.24 V | 20 mA | - | -55°C ~ 125°C | Surface Mount | 8-SMD Gull Wing | - |
