扬声器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR1511L030UN8GDA11x15mm Loudspeaker with front g |
100 |
|
规格书 |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CR1506L025YN8WPSPEAKR 8OHM 500 MA TOP PORT 70DB |
86 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 950 Hz ~ 1 kHz | 950Hz | 8 Ohms | 70.00 | 1W/1M | Sensitivity | 500 mA | 700 mA | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
|
BO2516S048YN8SPEAKER 8OHM 1W TOP PORT 76DB |
29 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 8 Ohms | 76.00 | 1W/1M | Sensitivity | 1 W | 1.2 W | Top | Oval | Plastic | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.630" W (25.00mm x 16.00mm) |
|
|
A0100008FP12PALoudspeaker, 103 mm ; 8 Ohms, 4W |
40 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose | 500 Hz ~ 5 kHz | 500Hz | 8 Ohms | 93.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 8 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 4.055" L x 4.055" W (103.00mm x 103.00mm) |
|
|
TS121039Loudspeaker 22 Ohms |
46 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 2 kHz | 180Hz | 22 Ohms | 129.00 | 1mW | Sound Pressure Level (SPL) | 10 mW | 20 mW | Top | Rectangular | TPU, PMI | Nd-Fe-B Cr3T N45 | IP54 | IEC 60268-5 | Solder Pads | 0.827" L x 0.472" W (21.00mm x 12.00mm) |
|
TR1813L042YN8SPEAKER 8OHM 700MW TOP PORT 73DB |
100 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 20 kHz | 700Hz | 8 Ohms | 73.00 | 1W/1m | Sensitivity | 700 mW | 1 W | Top | Rectangular | Rubber | Nd-Fe-B | IPX7 | - | Spring Contacts | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
TR1813L042YN8GDAP-2SPEAKER 8OHM 700MW TOP PORT 73DB |
100 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 20 kHz | 700Hz | 8 Ohms | 73.00 | 1W/1m | Sensitivity | 700 mW | 1 W | Top | Rectangular | Rubber | Nd-Fe-B | IPX7 | - | Spring Contacts | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
|
|
D0050008NM162ARLoudspeaker, 50 mm ; 8 Ohms, 2W |
47 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 520 Hz ~ 4 kHz | 520Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.969" Dia (50.00mm) |
|
|
TS121038Loudspeaker 4 Ohms |
50 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 150 Hz ~ 20 kHz | 210Hz | 4 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 5 W | 5 W | Top | Round | TPU, Paper | Nd-Fe-B Cr3T | IPX7 | IEC 60268-5 | Solder Pads | - |
|
BMS1813F-11C-08H4.5-BBS152SPEAKER 8OHM 700MW TOP PORT 93DB |
60 |
|
规格书 |
BMS | Box | Active | Magnetic | General Purpose | 0 Hz ~ 20 kHz | 850Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangle | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
|
A0100008FP199AKRLoudspeaker, 102 mm ; 8 Ohms, 6W |
38 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose | 170 Hz ~ 10 kHz | 170Hz | 8 Ohms | 90.00 | 1W/1m | Sound Pressure Level (SPL) | 6 W | 8 W | Top | Round, Square Frame | - | Ferrite | - | - | Solder Eyelet(s) | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
|
|
TS121043Loudspeaker 4 Ohms |
50 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 95Hz | 4 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 15 W | 20 W | Top | Round | Paper, Rubber | Nd-Fe-B Cr3T | - | IEC 60268-5 | Solder Pads | - |
|
|
BOX1-18082-10CSPEAKER 6OHM 700MW TOP PORT 72DB |
31 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 15000 Hz | 900Hz | 6 Ohms | 72.00 | 1W/1m | Sensitivity | 700 mW | 1.2 W | Top | Rectangular | - | Nd-Fe-B | - | - | Wire Leads with Connector | 1.575" L x 0.472" W (40.00mm x 12.00mm) |
|
|
TS121040Loudspeaker 3 Ohms |
50 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 50 Hz ~ 6 kHz | 90Hz | 3 Ohms | 90.00 | 500mm | Sound Pressure Level (SPL) | 45 W | 50 W | Top | Round | Paper, Rubber | Nd-Fe-B Cr3T | - | IEC 60268-5 | Solder Pads | 3.602" L x 2.310" W (91.50mm x 60.70mm) |
|

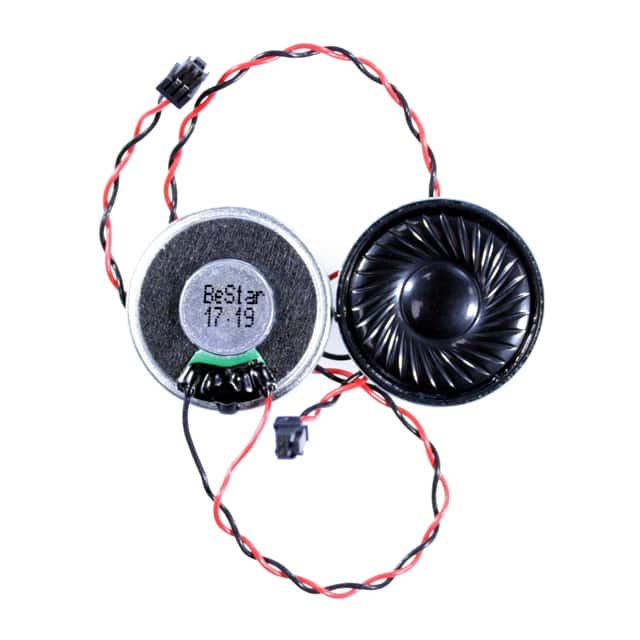

BMS28-12B08H05CW150MSPEAKER 8OHM 800MW TOP PORT 90DB |
61 |
|
规格书 |
BMS | Box | Active | Magnetic | General Purpose | 0 Hz ~ 20 kHz | 650Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1.2 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.102" Dia (28.00mm) |
|
|
A0100008FP09IALoudspeaker, 103 mm ; 8Ohms, 15W |
32 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose | 900 Hz ~ 6 kHz | 900Hz | 8 Ohms | 98.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 30 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 4.055" L x 4.055" W (103.00mm x 103.00mm) |
|
|
D0138004PF001AKRLoudspeaker, 138 mm; 4 Ohms, 30W |
35 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose | 85 Hz ~ 20 kHz | 85Hz | 4 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 30 W | 40 W | Top | Oval, Square Frame | - | Ferrite | - | - | Solder Eyelet(s) | 5.276" L x 5.276" W (134.00mm x 134.00mm) |
|
|
A0200004FP200AKRLoudspeaker, 206 mm ; 4 Ohms, 10 |
31 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose | 70 Hz ~ 5 kHz | 70Hz | 4 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 15 W | Top | Round | - | Ferrite | - | - | Solder Eyelet(s) | 8.110" Dia (206.00mm) |
|

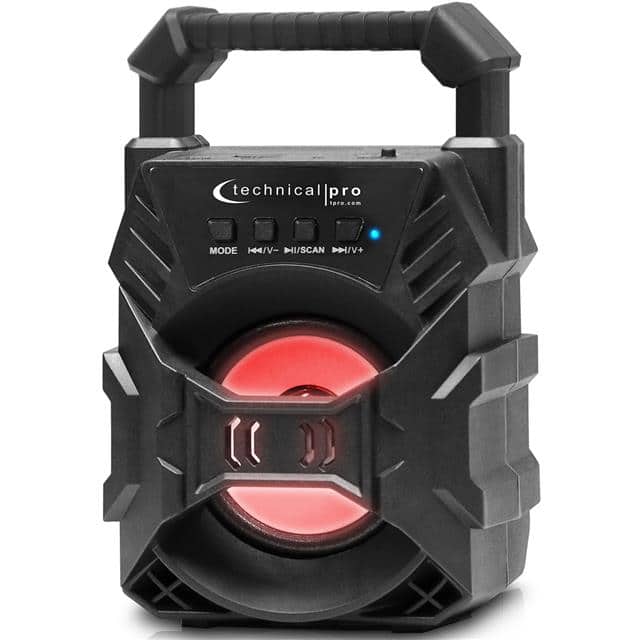

BOOM1TSPEAKER TOP PORT RECHARGABLE |
12 |
|
- |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | Top | - | - | - | - | - | - | - |
|

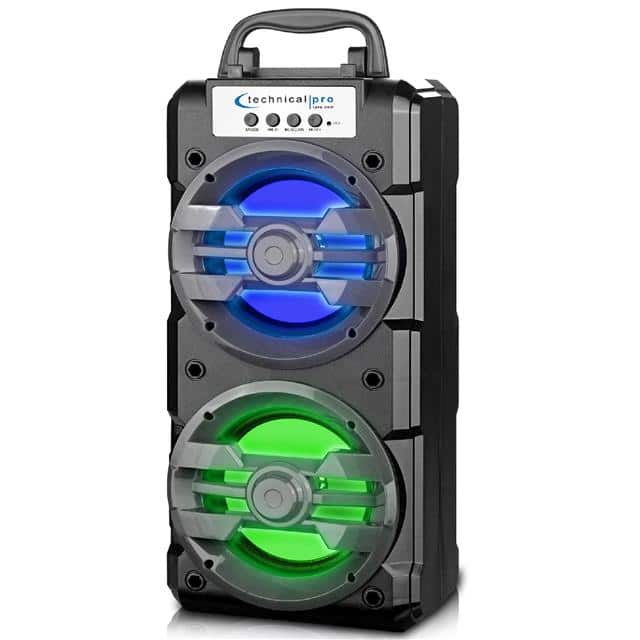

BOOM24TSPEAKER TOP PORT RECHARGABLE |
12 |
|
- |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | Top | - | - | - | - | - | - | - |
