扬声器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HODTEC-31268-000SPEAKER 112OHM TOP PORT 112DB |
100 |
|
规格书 |
- | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 7 kHz | - | 112 Ohms | 112.00 | - | - | - | - | Top | - | - | - | - | - | - | - |
|
|
HODTEC-31323-000SPEAKER 48OHM TOP PORT 120DB |
100 |
|
规格书 |
- | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 7 kHz | - | 48 Ohms | 120.00 | - | - | - | - | Top | - | - | - | - | - | - | - |
|
|
HODTEC-31515-000SPEAKER 41OHM TOP PORT 112DB |
100 |
|
规格书 |
- | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 7 kHz | - | 41 Ohms | 112.00 | - | - | - | - | Top | - | - | - | - | - | - | - |
|
|
GD-31288-000SPEAKER 281OHM 10MW TOP PT 100DB |
100 |
|
规格书 |
GD | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 6.7 kHz | - | 281 Ohms | 100.00 | - | Sound Pressure Level (SPL) | 10 mW | 50 mW | Top | Rectangular | - | - | - | - | Solder Pads | 0.236" L x 0.123" W (5.99mm x 3.12mm) |
|
|
GD-31440-000SPEAKER 223OHM 10MW TOP PT 100DB |
100 |
|
规格书 |
GD | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 6.7 kHz | - | 223 Ohms | 100.00 | - | Sound Pressure Level (SPL) | 10 mW | 50 mW | Top | Rectangular | - | - | - | - | Solder Pads | 0.236" L x 0.123" W (5.99mm x 3.12mm) |
|
|
GD-31475-000SPEAKR 42.9OHM 10MW TOP PT 100DB |
100 |
|
规格书 |
GD | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 6.7 kHz | - | 42.9 Ohms | 100.00 | - | Sound Pressure Level (SPL) | 10 mW | 50 mW | Top | Rectangular | - | - | - | - | Solder Pads | 0.236" L x 0.123" W (5.99mm x 3.12mm) |
|
|
FH-23377-000SPEAKER 1.03 KOHM TOP PORT 103DB |
75 |
|
规格书 |
FH | Bulk | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.3 kHz | - | 1.03 kOhms | 103.00 | - | Sensitivity | - | - | Top | Rectangular | - | Ferrite | - | - | Solder Pads | 0.201" L x 0.111" W (5.09mm x 2.80mm) |
|
|
GD30-31593-000SPEAKER 223OHM 10MW TOP PT 100DB |
100 |
|
规格书 |
GD | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 6.7 kHz | - | 223 Ohms | 100.00 | - | Sound Pressure Level (SPL) | 10 mW | 50 mW | Top | Rectangular | - | - | - | - | Solder Pads | 0.240" L x 0.126" W (6.10mm x 3.20mm) |
|
|
GD30-31527-000SPEAKR 144.4OHM 10MW TOP 100DB |
81 |
|
规格书 |
GD | Tray | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 6.7 kHz | - | 144.4 Ohms | 100.00 | - | Sound Pressure Level (SPL) | 10 mW | 50 mW | Top | Rectangular | - | - | - | - | Solder Pads | 0.240" L x 0.126" W (6.10mm x 3.20mm) |
|
EH-27233-000SPEAKER SIDE PORT RECTANGULAR |
9 |
|
- |
EH | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 8 kHz | - | - | - | - | - | - | - | Side | Rectangular | - | - | - | - | Solder Pads | 0.204" L x 0.140" W (5.18mm x 3.55mm) |
|
|
EF-26708-017SPEAKER 175OHM TOP PORT 127DB |
23 |
|
规格书 |
EF | Bulk | Active | Magnetic | Receiver | 200 Hz ~ 3.35 kHz | - | 175 Ohms | 127.00 | - | Sensitivity | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
-VIEW-A.jpg)
|
WB 13 - 100 V/8 OHM (WHITE)SPEAKER 8OHM 50W 91DB 2-WAY |
3 |
|
规格书 |
- | Bulk | Active | - | General Purpose, Enclosure Included | 95 Hz ~ 20 kHz | - | 8 Ohms | 91.00 | 1W/1M | Sound Pressure Level (SPL) | 50 W | 80 W | User Defined | Rectangular | - | - | IP54 | - | - | 4.803" Dia x 9.449" L (122.00mm x 240.00mm) |
|
DK 8 - 100 V/20 OHMSPEAKER 20OHM TOP PORT 107DB |
6 |
|
规格书 |
- | Bulk | Active | - | General Purpose | 400 Hz ~ 5 kHz | - | 20 Ohms | 107.00 | 1W/1M | Sound Pressure Level (SPL) | - | - | Top | Round | - | - | IP66 - Dust Tight, Water Resistant | - | Wire Leads | 8.425" Dia (214.00mm) |
|
|
AS01506MS-SC15-WP-3-RSPEAKER 6OHM 1W TOP PORT 93DB |
88 |
|
规格书 |
AS | Tray | Active | Magnetic | Receiver | 650 Hz ~ 20 kHz | 650Hz | 6 Ohms | 93.00 | - | Sensitivity | 1 W | 1.2 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

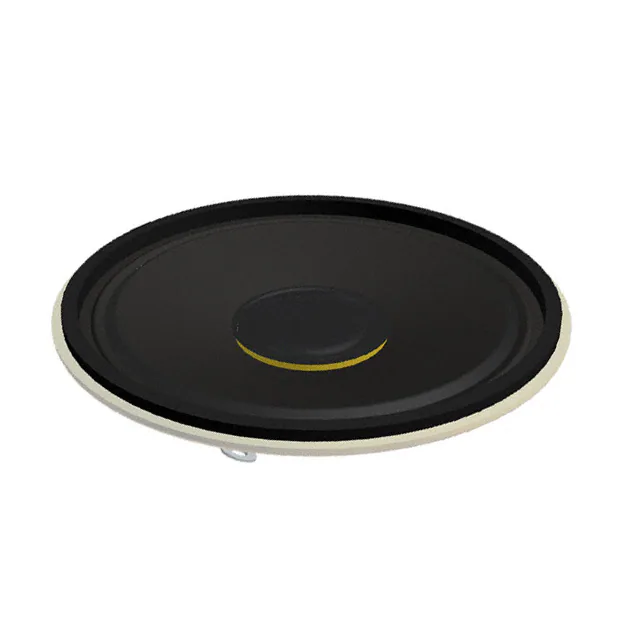

AS05004PR-2-RSPEAKER 4OHM 1.5W TOP PORT 85DB |
81 |
|
规格书 |
AS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 5 kHz | 800Hz | 4 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Round | Paper | N35 | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
AS04008PR-RSPEAKER 8OHM 500MW TOP PORT 94DB |
41 |
|
规格书 |
AS | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 4.8 kHz | 700Hz | 8 Ohms | 94.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Paper | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
AS05008PR-RSPEAKER 8OHM 100MW TOP PORT 81DB |
48 |
|
规格书 |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4.5 kHz | 500Hz | 8 Ohms | 81.00 | 100mW/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
|
CMS-3012-18TSPEAKER, 30MM ROUND, 12.8MM DEEP |
90 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4 kHz | 1.2kHz | 8 Ohms | 105.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.181" Dia (30.00mm) |
|
|
5986MONO ENCLOSED SPEAKER - 1W 8 OHM |
44 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AS07708PS-7-RSPEAKER 8OHM 4W TOP PORT 90DB |
48 |
|
规格书 |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
