扬声器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2087SL 87 WPM, 4 OHM |
0 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 200 Hz ~ 5 kHz | 290Hz | 4 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round, Square Frame | Plastic | - | Waterproof | - | Quick Connect | 3.268" L x 3.268" W (83.00mm x 83.00mm) |
|
2088SL 87 WPM, 8 OHM |
0 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 200 Hz ~ 5 kHz | 290Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round, Square Frame | Plastic | - | Waterproof | - | Quick Connect | 3.268" L x 3.268" W (83.00mm x 83.00mm) |
|
8051SC 4.9 FL 8 OHM |
0 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 120 Hz ~ 20 kHz | 220Hz | 8 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 5 W | Top | Oval, Rectangular Frame | - | - | IP63 - Dust Tight, Water Resistant | - | Quick Connect | - |
|

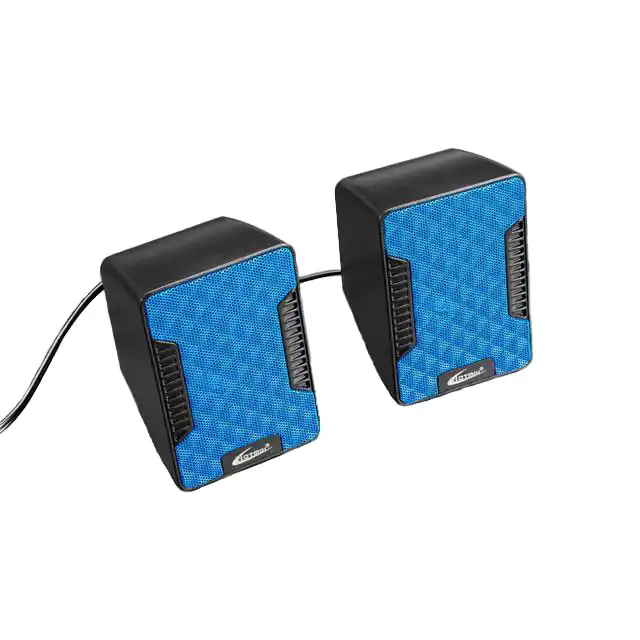

1363SPEAKER USB POWERED |
0 |
|
规格书 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
COM-10917SPEAKER EXCITER 8 OHM 1W |
0 |
|
规格书 |
- | Bulk | Obsolete | - | Exciter | 300 Hz ~ 19 kHz | 16kHz | 8 Ohms | - | - | - | 1 W | 2 W | - | Rectangular | - | - | - | - | - | - |
|
7000-253880SPEAKER |
0 |
|
- |
- | Tray | Obsolete | - | General Purpose | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FRS 7 W - 8 OHMSPEAKER 8OHM 8W TOP PORT 86DB |
0 |
|
规格书 |
- | Bulk | Active | Magnetic | - | 120 Hz ~ 20 kHz | 160Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 8 W | 15 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 5.748" Dia x 2.618" L (146.00mm x 66.50mm) |
|
2802K 20 8 OHM |
0 |
|
- |
- | Retail Package | Active | - | General Purpose | 600 Hz ~ 20 kHz | 860Hz | 8 Ohms | 73.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Plastic | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.787" Dia (20.00mm) |
|
|
RAE-33755-000RECEIVER |
0 |
|
规格书 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PH-143QSPEAKER 8OHM 10W 96.8DB ROUND |
0 |
|
规格书 |
PH | Bulk | Obsolete | - | General Purpose | 500 Hz ~ 7 kHz | - | 8 Ohms | 96.80 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 10 W | User Defined | Round, Rectangular Frame | - | - | - | - | Wire Leads | 4.520" L x 4.094" W (114.80mm x 104.00mm) |
|
2207FRWS 4 ND 8 OHM |
0 |
|
规格书 |
- | Retail Package | Active | - | General Purpose | 150 Hz ~ 20 kHz | - | 8 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round, Square Frame | Paper | - | - | - | Quick Connect | 1.614" L x 1.614" W (41.00mm x 41.00mm) |
|
2040R 10 SC 4 OHM |
0 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 100 Hz ~ 13 kHz | 165Hz | 4 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round, Square Frame | - | - | IP64/IP67 - Dust Tight, Water Resistant, Waterproof | - | Solder Eyelet(s) | 3.937" Dia (100.00mm) |
|
2041R 10 SC 8 OHM |
0 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 100 Hz ~ 13 kHz | - | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round, Square Frame | - | - | Water Resistant | - | Quick Connect | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
|
|
2235FRS 5 X 8 OHM |
0 |
|
规格书 |
- | Retail Package | Active | - | General Purpose | 120 Hz ~ 20 kHz | 190Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Round | - | - | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
SDS-P830878SPEAKER TOP PORT ROUND 4INCH |
0 |
|
规格书 |
SDS | Bulk | Active | - | Passive Radiator | - | - | - | - | 1W/1M | Half Space Sensitivity | - | - | Top | Round | Paper, Coated | - | - | - | None | 4.854" Dia (123.28mm) |
|
|
2018FRS 7 S 8 OHM |
0 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 120 Hz ~ 20 kHz | 150Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 8 W | 15 W | Top | Round, Square Frame | - | - | Waterproof | - | Quick Connect | 5.748" Dia x 2.618" L (146.00mm x 66.50mm) |
|
|
2412FRS 7 A 8 OHM |
0 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 250Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 8 W | 15 W | Top | Round, Square Frame | - | - | - | - | Solder Eyelet(s) | 5.748" Dia x 2.618" L (146.00mm x 66.50mm) |
|
|
2012FRS 7 8 OHM |
0 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 250Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 8 W | 15 W | Top | Round, Square Frame | - | - | Waterproof | - | Quick Connect | 5.748" Dia x 2.618" L (146.00mm x 66.50mm) |
|
|
2011FRS 7 4 OHM |
0 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 250Hz | 4 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 8 W | 15 W | Top | Round, Square Frame | - | - | Waterproof | - | Quick Connect | 5.748" Dia x 2.618" L (146.00mm x 66.50mm) |
|
|
2017FRS 7 W 8 OHM |
0 |
|
规格书 |
- | Retail Package | Active | Magnetic | General Purpose | 120 Hz ~ 20 kHz | 160Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 8 W | 15 W | Top | Round, Square Frame | - | - | - | - | Solder Eyelet(s) | 5.748" Dia x 2.618" L (146.00mm x 66.50mm) |
