滑动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G-1132-0000SWITCH SLIDE SPDT 11A 125V |
0 |
|
规格书 |
G | Bulk | Active | SPDT | Not Specified | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GF-1324-0000SWITCH SLIDE SPDT 13A 125V |
0 |
|
规格书 |
GF | Bulk | Active | SPDT | Not Specified | On-On | 13A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GF-323-0093SWITCH SLIDE SPST 3A 125V |
0 |
|
规格书 |
GF | Bulk | Active | SPST | Not Specified | On-Off | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 15.88mm | Copper | Silver | Panel Mount | Wire Wrap | - |
|
|
G-128L-0078SWITCH SLIDE DP3T 500MA 125V |
0 |
|
规格书 |
G | Bulk | Active | DP3T | Not Specified | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 3.18mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
EGJ1210AAG1RSLIDE,300MA / 500MA,24VDC / 12VD |
0 |
|
规格书 |
EGJ1210 | Box | Active | SPDT | Non-Shorting (BBM) | On-On | 300mA (DC) | - | 24 V | Standard | 1.40mm | - | - | Surface Mount | Gull Wing | - |
|

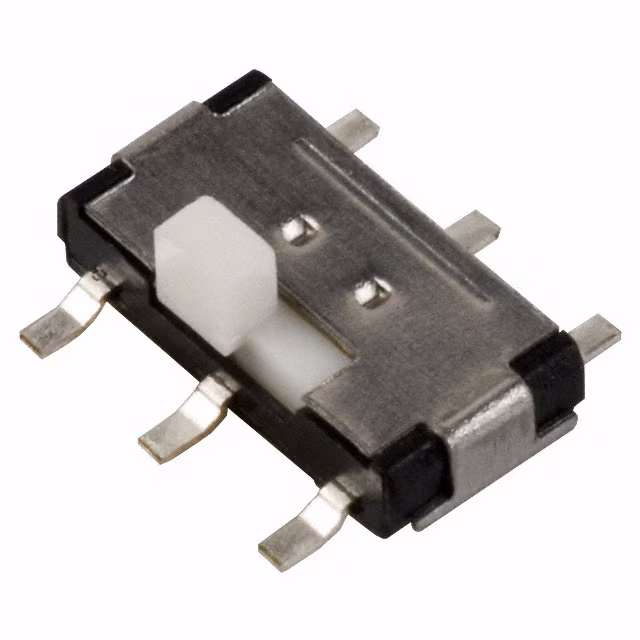

AYZ0202AGRLSWITCH SLIDE DPDT 100MA 12V |
0 |
|
规格书 |
AYZ | Tape & Reel (TR) | Obsolete | DPDT | Not Specified | On-On | 100mA (DC) | - | 12 V | Standard | 1.00mm | Copper Alloy | Silver | Surface Mount | Gull Wing | - |
|
|
GF-126-0008SWITCH SLIDE DPDT 500MA 125V |
0 |
|
规格书 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 8.33mm | Copper | Silver | Through Hole | PC Pin | - |
|
|
G-2011-0038SWITCH SLIDE SPST 13A 125V |
0 |
|
规格书 |
2000 | Bulk | Active | SPST | Not Specified | On-Off | 13A (AC) | 125 V | - | Standard | 12.70mm | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | White Actuator and Housing |
|
|
G-2012-0000SWITCH SLIDE SPDT 13A 125V |
0 |
|
规格书 |
2000 | Bulk | Active | SPDT | Not Specified | On-On | 13A (AC) | 125 V | - | Standard | 6.60mm | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | Black Actuator and Housing |
|
|
G-2012-1600SWITCH SLIDE SPDT 16A 125V |
0 |
|
规格书 |
2000 | Bulk | Active | SPDT | Not Specified | On-On | 16A (AC) | 125 V | - | Standard | 6.60mm | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | Black Actuator and Housing |
|
SLS121RASWITCH SLIDE SPDT 250MA 125V |
0 |
|
规格书 |
SLS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
G-107-0002SWITCH SLIDE SPDT 0.5A 125V |
0 |
|
规格书 |
G | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 3.56mm | - | - | Through Hole | PC Pin | - |
|
|
GF-1324-0001SWITCH SLIDE SPDT 13A 125V |
0 |
|
规格书 |
GF | Bulk | Active | SPDT | Not Specified | On-On | 13A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | PC Pin | - |
|
|
GF-323-0098SWITCH SLIDE SPST 3A 125V |
0 |
|
规格书 |
GF | Bulk | Active | SPST | Not Specified | On-Off | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 19.05mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
GI-159-0004SWITCH SLIDE DP4T 500MA 125V |
0 |
|
规格书 |
GI | Bulk | Active | DP4T | Not Specified | On-On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 11.50mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
MHS133SWITCH SLIDE SP3T 300MA 125V |
0 |
|
- |
MHS | Bulk | Obsolete | SP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 4.50mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

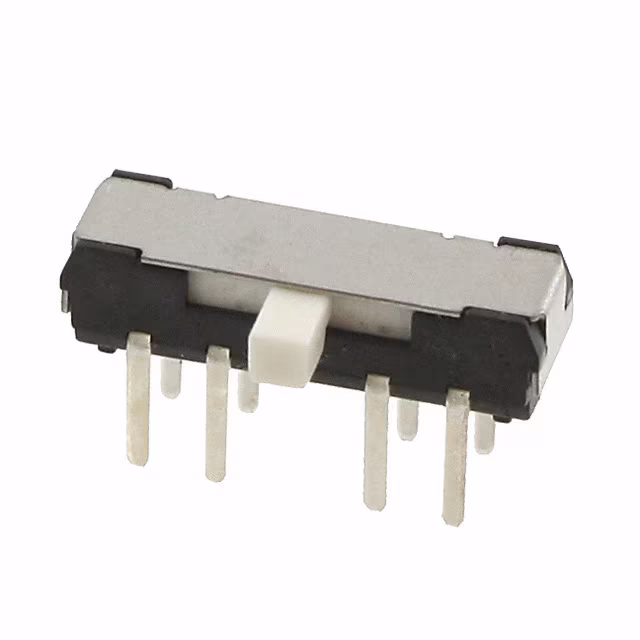

CL-SB-23C-11SWITCH SLIDE DP3T 200MA 12V |
0 |
|
规格书 |
CL-SB | Bulk | Active | DP3T | Non-Shorting (BBM) | On-On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
CL-SB-13A-12TSWITCH SLIDE SP3T 200MA 12V |
0 |
|
规格书 |
CL-SB | Tape & Reel (TR) | Active | SP3T | Non-Shorting (BBM) | On-On-On | 200mA (DC) | - | 12 V | Standard | 2.00mm | Copper | Gold | Surface Mount, Right Angle | J Lead | - |
|
|
G-1129L-0000SWITCH SLIDE SP3T 11A 125V |
0 |
|
规格书 |
G | Bulk | Active | SP3T | Not Specified | On-On-On | 11A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
|
JS102011JCBNSWITCH SLIDE SPDT 0.3A 6V |
0 |
|
规格书 |
JS | Tape & Reel (TR) | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | Copper Alloy | Gold | Surface Mount | J Lead | - |
