滑动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

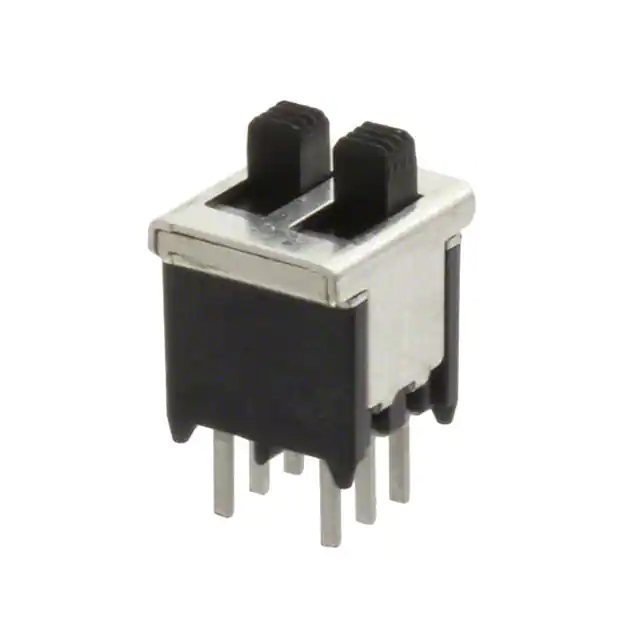

1825015-1SWITCH SLIDE SPDTX2 0.4VA 20V |
0 |
|
规格书 |
TSS | Bulk | Obsolete | SPDT x 2 | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825073-2SWITCH SLIDE SP3T 250MA 125V |
0 |
|
规格书 |
SL | Bulk | Active | SP3T | Non-Shorting (BBM) | On-On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 14.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825073-4SWITCH SLIDE SP6T 250MA 125V |
0 |
|
规格书 |
SL | Bulk | Active | SP6T | Non-Shorting (BBM) | - | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 14.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825074-1SWITCH SLIDE SPDT 500MA 125V |
0 |
|
规格书 |
SLS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 500mA (AC) | 125 V | - | Standard | 4.90mm | Copper Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
1825075-1SWITCH SLIDE SPDT 500MA 125V |
0 |
|
规格书 |
SLS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 500mA (AC) | 125 V | - | Standard | 4.90mm | Copper Alloy | Silver | Through Hole | Solder Lug | Epoxy Sealed Terminals |
|

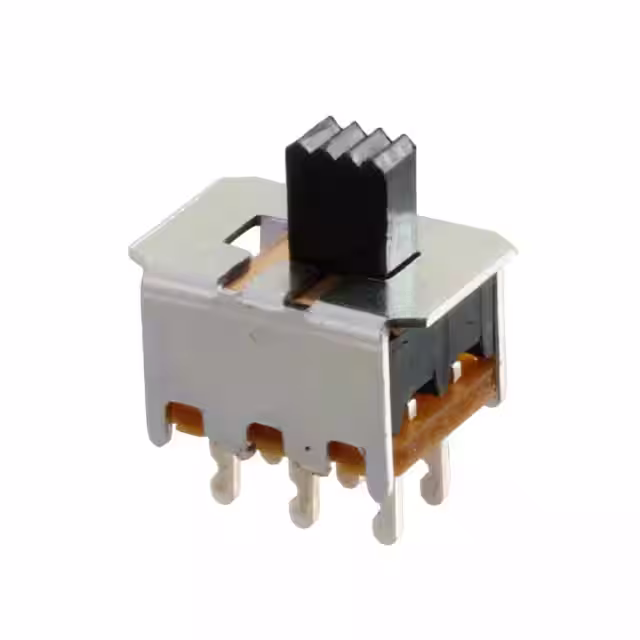

1825079-1SWITCH SLIDE DPDT 500MA 125V |
0 |
|
规格书 |
SLS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 500mA (AC) | 125 V | - | Standard | 4.80mm | Copper Alloy | Silver | Through Hole | Solder Lug | Epoxy Sealed Terminals |
|
1825080-1SWITCH SLIDE DPDT 250MA 125V |
0 |
|
规格书 |
SLS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825080-2SWITCH SLIDE DP3T 250MA 125V |
0 |
|
规格书 |
SLS | Bulk | Obsolete | DP3T | Non-Shorting (BBM) | On-On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825080-3SWITCH SLIDE DP4T 250MA 125V |
0 |
|
规格书 |
SLS | Bulk | Obsolete | DP4T | Non-Shorting (BBM) | On-On-On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825080-5SWITCH SLIDE DP6T 250MA 125V |
0 |
|
规格书 |
SLS | Bulk | Active | DP6T | Non-Shorting (BBM) | - | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825081-1SWITCH SLIDE SPDT 500MA 125V |
0 |
|
规格书 |
SLSA | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 500mA (AC) | 125 V | - | Standard | 3.20mm | Copper Alloy | Silver | Panel Mount | Solder Turret | Epoxy Sealed Terminals |
|
|
1825087-1SWITCH SLIDE DPDT 500MA 125V |
0 |
|
规格书 |
SLSA | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 500mA (AC) | 125 V | - | Standard | 4.80mm | Copper Alloy | Silver | Through Hole | Solder Turret | Epoxy Sealed Terminals |
|
1825115-1SWITCH SLIDE SPDT 250MA 125V |
0 |
|
规格书 |
SLS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825116-1SWITCH SLIDE SPDT 250MA 125V |
0 |
|
规格书 |
SLS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1825117-1SWITCH SLIDE SP3T 250MA 125V |
0 |
|
规格书 |
SLS | Bulk | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825118-1SWITCH SLIDE SP3T 250MA 125V |
0 |
|
规格书 |
SLS | Bulk | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1825119-1SWITCH SLIDE SP4T 250MA 125V |
0 |
|
规格书 |
SLS | Bulk | Active | SP4T | Non-Shorting (BBM) | On-On-On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825120-1SWITCH SLIDE SP4T 250MA 125V |
0 |
|
规格书 |
SLS | Bulk | Active | SP4T | Non-Shorting (BBM) | On-On-On-On | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1825122-1SWITCH SLIDE SP5T 250MA 125V |
0 |
|
规格书 |
SLS | Bulk | Obsolete | SP5T | Non-Shorting (BBM) | - | 250mA (AC), 150mA (DC) | 125 V | 12 V | Standard | 5.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1825161-1SWITCH SLIDE SP3T 300MA 125V |
0 |
|
规格书 |
STS | Bulk | Obsolete | SP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
