滑动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GH39Y000001SLIDE SWITCH G TELECOM GRADE |
0 |
|
规格书 |
G | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Brass | Gold | Through Hole | PC Pin | - |
|
|
25346NASWITCH SLIDE DPDT 4A 125V |
0 |
|
规格书 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.30mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25546NA6X693ULSLIDE SWITCH 25000N PCB MOUNT |
0 |
|
规格书 |
25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 6.00mm | Silver | - | Through Hole, Right Angle | PC Pin | - |
|
|
MSN22BSW13SWITCH SLIDE |
0 |
|
- |
MS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.11mm | Silver Alloy | Silver | Through Hole | PC Pin | - |
|
|
MSN22ASW13MINIATURE SLIDE |
0 |
|
- |
M | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 3A (AC) | 125 V | - | Standard | 5.10mm | Copper | Silver | Through Hole | PC Pin | - |
|
|
25446NABSWITCH SLIDE DPDT 4A 125V |
0 |
|
规格书 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | - | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
25546NASWITCH SLIDE DPDT 4A 125V |
0 |
|
规格书 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.30mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25446NAHSWITCH SLIDE DPDT 4A 125V |
0 |
|
规格书 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.80mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
25346NLD6SWITCH SLIDE DPDT 100MA 30V |
0 |
|
规格书 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Standard | 6.00mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25146NLDBSWITCH SLIDE DPDT 100MA 30V |
0 |
|
规格书 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Flush | - | Brass | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

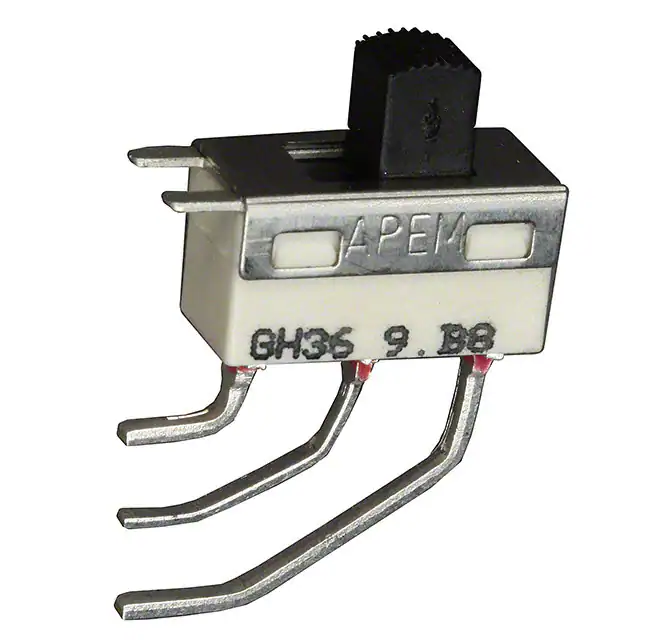

GH36WW10001SWITCH SLIDE SPDT 3A 30V |
0 |
|
规格书 |
G | Bulk | Active | SPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 4.70mm | Silver (Ag) | - | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
ASF22SWITCH SLIDE DPDT 300MA 115V |
0 |
|
规格书 |
ASF | Tube | Active | DPDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Screwdriver Slot | Flush | Copper Alloy | Silver | Through Hole | PC Pin | Tape Seal |
|
|
25546NLDSWITCH SLIDE DPDT 100MA 30V |
0 |
|
规格书 |
25000N | Tube | Active | DPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Standard | 2.30mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
56206L1XSWITCH SLIDE DPDT 500MA 125V |
0 |
|
规格书 |
56200 | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
GL36W000001SWITCH SLIDE SPDT 0.4VA 20V |
0 |
|
规格书 |
G | Tube | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 6.00mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1201M2S6AGE2SWITCH SLIDE DPDT 6A 120V |
0 |
|
规格书 |
1000 | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 11.96mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
6-1825011-4SWITCH SLIDE 6PDT 0.4VA 20V |
0 |
|
规格书 |
ASF | Tube | Active | 6PDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
1201M2S3V3GE2SWITCH SLIDE DPDT 6A 120V |
0 |
|
规格书 |
1000 | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|

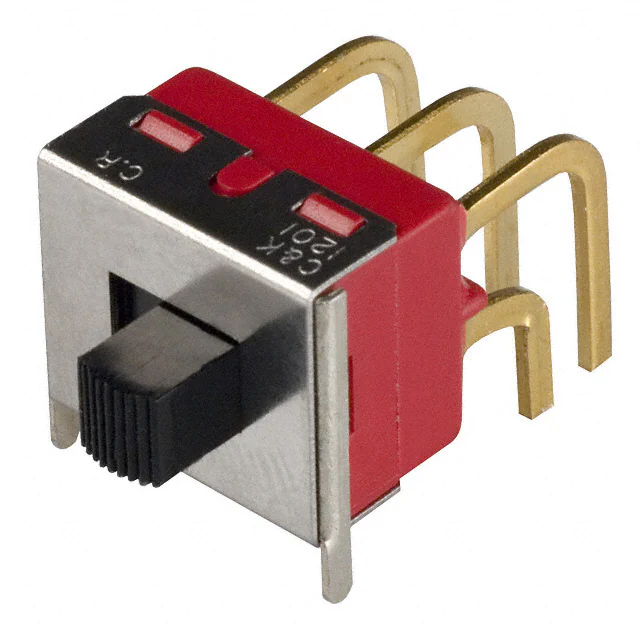

1201M2S3AV2GE2SWITCH SLIDE DPDT 6A 120V |
0 |
|
规格书 |
1000 | Bulk | Obsolete | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
GB36W000001SWITCH SLIDE SPDT 0.4VA 20V |
0 |
|
规格书 |
G | Tube | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 7.25mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
