滑动开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS24BWSWITCH SLIDE SP3T 0.4VA 28V |
0 |
|
规格书 |
AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Jumper needed to achieve triple throw |
|
|
4M1-SDP3-S1/2-M3QESWITCH SLIDE DPDT 5A 125V |
0 |
|
- |
4M | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard | 5.10mm | Copper Alloy | Silver | Panel Mount | Quick Connect - 0.062" (1.5mm) | - |
|
|
SS210N-ZSWITCH SLIDE DPDT 10A 125V |
0 |
|
规格书 |
SS | Bulk | Obsolete | DPDT | Not Specified | On-On | 10A (AC) | 125 V | - | Standard | 9.00mm | - | - | Panel Mount | Solder Lug | - |
|
|
TG39Y000000SWITCH SLIDE SPDT 0.4VA 20V |
0 |
|
规格书 |
TG | Tray | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.00mm | Brass | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1101M2S4AGE2SWITCH SLIDE SPDT 6A 120V |
0 |
|
规格书 |
1000 | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 6.88mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
TG36Y000050SWITCH SLIDE SPDT 0.4VA 20V |
0 |
|
规格书 |
TG | Tray | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.00mm | Brass | Gold | Through Hole | PC Pin | Washable |
|
1103M2S3CGE2SWITCH SLIDE SPDT 6A 120V |
0 |
|
规格书 |
1000 | Bulk | Active | SPDT | Not Specified | On-Off-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
1201M1S3Z3QE2SWITCH SLIDE DPDT 6A 120V |
0 |
|
规格书 |
1000 | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Quick Connect - 0.062" (1.5mm) | Black Actuator, Epoxy Sealed Terminals |
|
|
1825031-2SWITCH SLIDE SPDT 0.4VA 20V |
0 |
|
规格书 |
SE | Bulk | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.50mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof |
|
V80212SL08QSWITCH SLIDE DPDT 10A 125V |
0 |
|
规格书 |
V | Tray | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 10A (AC), 4A (DC) | 125 V | 30 V | Screwdriver Slot | Flush | Copper | Silver | Panel Mount, Right Angle | PC Pin | 115V-230V Marking |
|
|
TG39P005000SLIDE SWITCH TG PCB MOUNT |
0 |
|
- |
TG | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.50mm | Brass | Gold | Through Hole | PC Pin | - |
|
TS01CSESWITCH SLIDE SPDT 3A 120V |
0 |
|
规格书 |
TS | Bulk | Active | SPDT | Not Specified | On-On | 3A (AC/DC) | 120 V | 28 V | Standard | 3.10mm | Silver (Ag) | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS24BBSWITCH SLIDE SP3T 0.4VA 28V |
0 |
|
规格书 |
AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | PC Pin | Jumper needed to achieve triple throw |
|
|
TG39Y010000SWITCH SLIDE SPDT 500MA 48V |
0 |
|
规格书 |
TG | Tray | Active | SPDT | Not Specified | On-Off-On | 500mA (AC/DC) | 48 V | 48 V | Standard | 3.00mm | Brass | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

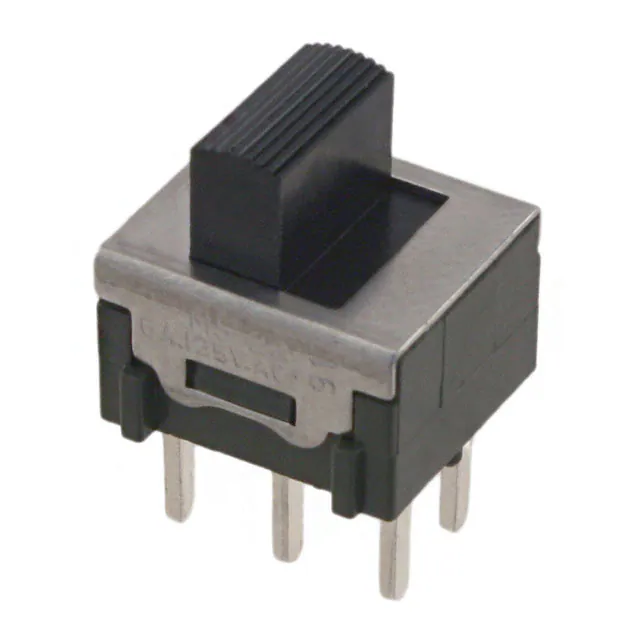

MS22BNW03SWITCH SLIDE DPDT 6A 125V |
0 |
|
规格书 |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
L103011TS03BSWITCH SLIDE SP3T 0.4VA 20V |
0 |
|
规格书 |
L | Bulk | Active | SP3T | Not Specified | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Copper | Gold | Panel Mount | Solder Lug | - |
|
1825031-4SWITCH SLIDE DPDT 0.4VA 20V |
0 |
|
规格书 |
SE | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.50mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof |
|
|
AS24BHSWITCH SLIDE SP3T 0.4VA 28V |
0 |
|
规格书 |
AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Jumper needed to achieve triple throw |
|
|
AS24BVSWITCH SLIDE SP3T 0.4VA 28V |
0 |
|
规格书 |
AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Jumper needed to achieve triple throw |
|
|
SS210P-ZSWITCH SLIDE DPDT 10A 125V |
0 |
|
规格书 |
SS | Bulk | Obsolete | DPDT | Not Specified | On-Off-On | 10A (AC) | 125 V | - | Standard | 9.00mm | - | - | Panel Mount | Solder Lug | - |
