信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HFW1230K06PRELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
规格书 |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
R10-E1Z6-V430RELAY GEN PURPOSE 6PDT 2A 24V |
0 |
|
规格书 |
R10 | Bulk | Active | Socketable | 24VDC | 6PDT (6 Form C) | 2 A | 120VAC, 30VDC - Max | 240VA, 60W | 55.8 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|

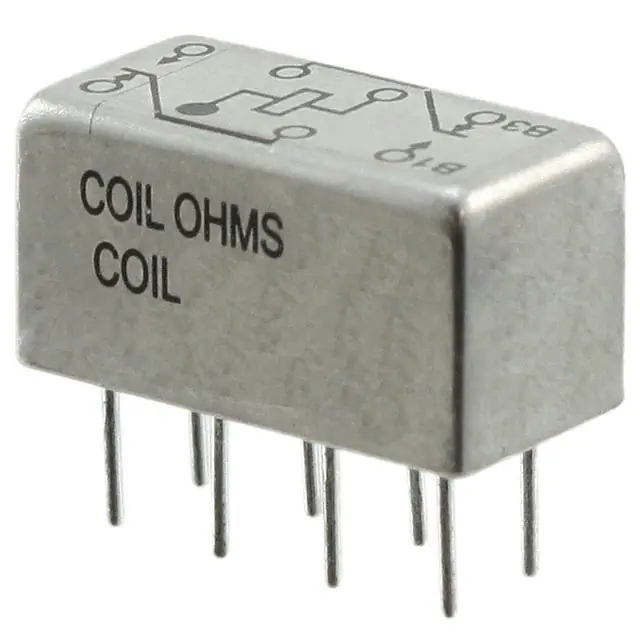

3SBC1518A2RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
规格书 |
3SBC, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 8.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/13 |
|
AZ822-2C-9DSERELAY GENERAL PURPOSE DPDT 2A 9V |
0 |
|
规格书 |
AZ822 | Tray | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.45 VDC | 5 ms | 2 ms | -55°C ~ 90°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
EE2-12SNU-LRELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
规格书 |
EE2 | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 9 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
UB2-3SNUN-LRELAY GENERAL PURPOSE DPDT 1A 3V |
0 |
|
规格书 |
UB2 | Tape & Reel (TR) | Not For New Designs | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 33.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
6-1462037-4RELAY TELECOM DPDT 2A 9V |
0 |
|
规格书 |
IM, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 11.1 mA | Latching, Single Coil | - | Gull Wing | Sealed - Hermetically | - | 6.75 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
|
AGQ21024RELAY TELECOM DPDT 2A 24V |
0 |
|
规格书 |
AGQ | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 5 mA | Latching, Single Coil | - | PC Pin | - | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
TX2SS-24V-ZRELAY TELECOM DPDT 2A 24V |
2 |
|
规格书 |
TX | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 5.8 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 18 VDC | 2.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TQ2SA-1.5VRELAY TELECOM DPDT 2A 1.5V |
0 |
|
规格书 |
TQ-SMD | Tube | Active | Surface Mount | 1.5VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 93.8 mA | Non Latching | - | Gull Wing | - | - | 1.13 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
TX2SA-LT-5VRELAY TELECOM DPDT 2A 5V |
0 |
|
规格书 |
TX | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 40 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 3.75 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TX2-12V-1RELAY TELECOM DPDT 1A 12V |
21 |
|
规格书 |
TX | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 220VDC - Max | 220VA | 11.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
TXS2SA-L-4.5VRELAY GEN PURPOSE DPDT 1A 4.5V |
0 |
|
规格书 |
TX-S | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 7.8 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 3.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TQ2SA-L2-24V-XRELAY TELECOM DPDT 2A 24V |
12 |
|
规格书 |
TQ-SMD | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 8.3 mA | Latching, Dual Coil | - | Gull Wing | - | - | 18 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
IM02TSRELAY TELECOM DPDT 2A 4.5V |
0 |
|
规格书 |
IM, AXICOM | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.38 VDC | 0.45 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
|
|
TX2SA-L-4.5VRELAY TELECOM DPDT 2A 4.5V |
0 |
|
规格书 |
TX | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 22.2 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 3.38 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
TX2SA-L2-9V-ZRELAY TELECOM DPDT 2A 9V |
0 |
|
规格书 |
TX | Tape & Reel (TR) | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 22.2 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 6.75 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
TXS2SA-L-4.5V-XRELAY GEN PURPOSE DPDT 1A 4.5V |
0 |
|
规格书 |
TX-S | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 7.8 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 3.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TXS2-6VRELAY GENERAL PURPOSE DPDT 1A 6V |
0 |
|
规格书 |
TX-S | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 110VDC - Max | 110W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TX2SA-LT-12VRELAY TELECOM DPDT 2A 12V |
0 |
|
规格书 |
TX | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 16.7 mA | Latching, Dual Coil | - | Gull Wing | Sealed - Fully | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
