信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASX22024RELAY TELECOM DPDT 10MA 24V |
0 |
|
规格书 |
ASX | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 6.3 mA | Latching, Dual Coil | - | PC Pin | - | - | 19.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX2204HRELAY TELECOM DPDT 10MA 4.5V |
0 |
|
规格书 |
ASX | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 15.6 mA | Latching, Dual Coil | - | PC Pin | - | - | 3.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|

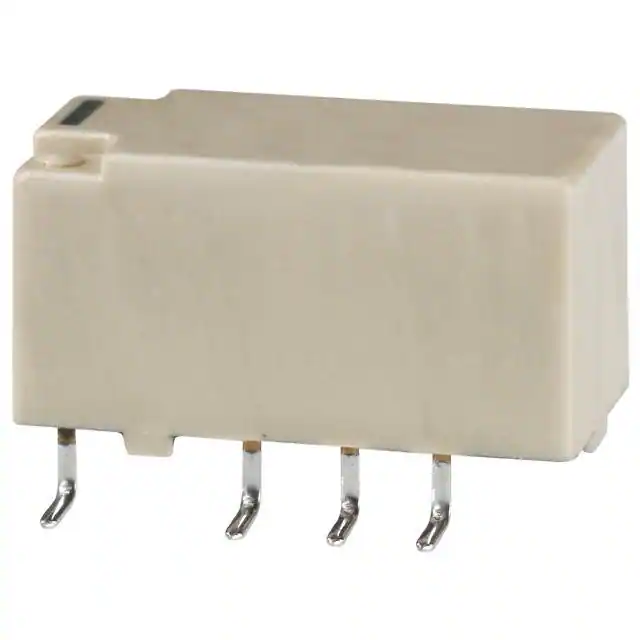

ASX220A03RELAY TELECOM DPDT 10MA 3V |
0 |
|
规格书 |
ASX | Tube | Obsolete | Surface Mount | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 23.3 mA | Latching, Dual Coil | - | Gull Wing | - | - | 2.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX220A12RELAY TELECOM DPDT 10MA 12V |
0 |
|
规格书 |
ASX | Tube | Obsolete | Surface Mount | 12VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 5.8 mA | Latching, Dual Coil | - | Gull Wing | - | - | 9.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX220A24RELAY TELECOM DPDT 10MA 24V |
0 |
|
规格书 |
ASX | Tube | Obsolete | Surface Mount | 24VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 6.3 mA | Latching, Dual Coil | - | Gull Wing | - | - | 19.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX220A4HRELAY TELECOM DPDT 10MA 4.5V |
0 |
|
规格书 |
ASX | Tube | Obsolete | Surface Mount | 4.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 15.6 mA | Latching, Dual Coil | - | Gull Wing | - | - | 3.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
DS2E-S-DC6VRELAY GENERAL PURPOSE DPDT 2A 6V |
0 |
|
规格书 |
DS | Tray | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

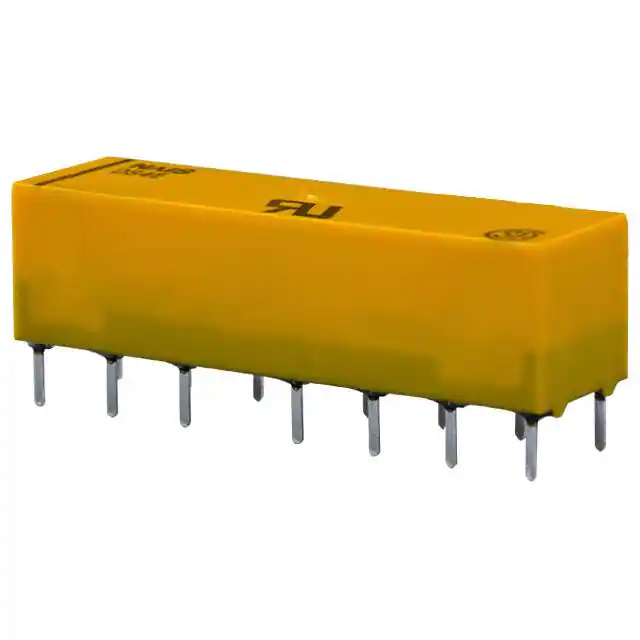

DS4E-M-DC12VRELAY GEN PURPOSE 4PDT 2A 12V |
0 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS4E-M-DC24VRELAY GEN PURPOSE 4PDT 2A 24V |
0 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 24VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS4E-M-DC48VRELAY GEN PURPOSE 4PDT 2A 48V |
0 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 48VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS4E-M-DC5VRELAY GENERAL PURPOSE 4PDT 2A 5V |
0 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 5VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS4E-ML2-DC5VRELAY GENERAL PURPOSE 4PDT 2A 5V |
0 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 5VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 72 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS4E-S-DC24VRELAY GEN PURPOSE 4PDT 2A 24V |
0 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 24VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS4E-SL2-DC24VRELAY GEN PURPOSE 4PDT 2A 24V |
0 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 24VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 7.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
HD1E-M-DC12VRELAY GEN PURPOSE SPDT 1A 12V |
0 |
|
规格书 |
HD | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 23.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 10 ms | 5 ms | -25°C ~ 60°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HD1E-M-DC24VRELAY GEN PURPOSE SPDT 1A 24V |
0 |
|
规格书 |
HD | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 11.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 10 ms | 5 ms | -25°C ~ 60°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HD1E-M-DC6VRELAY GENERAL PURPOSE SPDT 1A 6V |
0 |
|
规格书 |
HD | Tube | Obsolete | Through Hole | 6VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 46.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 10 ms | 5 ms | -25°C ~ 60°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TK1-3VRELAY GENERAL PURPOSE SPDT 2A 3V |
0 |
|
规格书 |
TK | Tube | Obsolete | Through Hole | 3VDC | SPDT (1 Form C) | 2 A | 220VDC - Max | 440VA | 46.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 3 ms | 2 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TK1-4.5VRELAY GEN PURPOSE SPDT 2A 4.5V |
0 |
|
规格书 |
TK | Tube | Obsolete | Through Hole | 4.5VDC | SPDT (1 Form C) | 2 A | 220VDC - Max | 440VA | 31.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.38 VDC | 0.45 VDC | 3 ms | 2 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TK1-9VRELAY GENERAL PURPOSE SPDT 2A 9V |
0 |
|
规格书 |
TK | Tube | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 2 A | 220VDC - Max | 440VA | 15.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 3 ms | 2 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
