信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2823777RELAY GEN PURPOSE SPST 500MA 24V |
0 |
|
规格书 |
- | Bulk | Obsolete | Socketable | 24VAC/DC | SPST-NC (1 Form B) | 500 mA | 30VAC, 36VDC - Max | - | 21 mA | Non Latching | Varistor | Plug In | - | - | - | - | 7 ms | 11 ms | -20°C ~ 50°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMACD-5XPSRELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
- |
MAC | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMACD-5XPS2RELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
- |
MAC | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617542-1RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
规格书 |
MAC | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMGACDD-5LWRELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
- |
MGADD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 128.2 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.2 VDC | 0.6 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/19 |
|
|
J1MAP-12XPRELAY GEN PURPOSE SPDT 1A 12V |
0 |
|
- |
1MA, CII | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 24 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
5-1617540-0RELAY GEN PURPOSE SPDT 1A 18V |
0 |
|
规格书 |
1MA, CII | Bulk | Active | Through Hole | 18VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 15.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
7-1617540-4RELAY GENERAL PURPOSE SPDT 1A 6V |
0 |
|
规格书 |
1MA, CII | Bulk | Active | Through Hole | 6VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 48 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.28 VDC | 2 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMGACD-12PWRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
MGAD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
|
|
PRMAC-26YSRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
规格书 |
PRMAC | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
2948416RELAY GEN PURPOSE SPDT 24V |
0 |
|
规格书 |
EMG17-REL | Bulk | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 0.5 A | 30VAC, 36VDC - Max | 15VA, 18W | - | Non Latching | Socket Included | - | - | - | - | - | 8 ms | 10 ms | - | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|

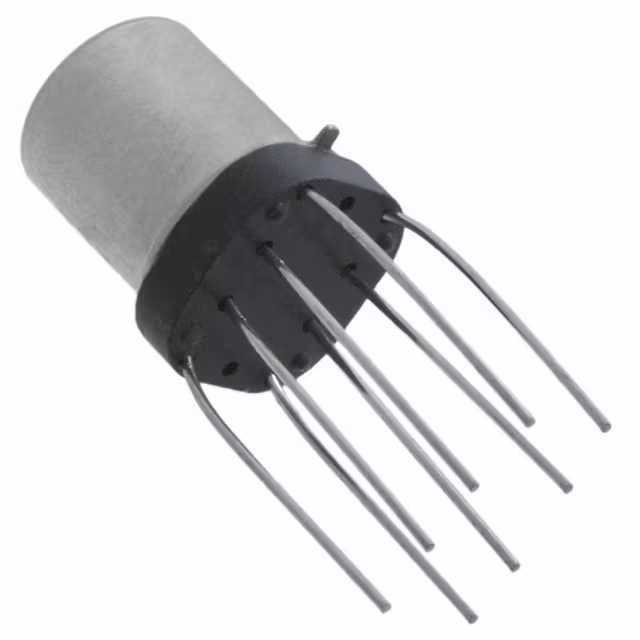

JMSCD-26XPSRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
规格书 |
MSD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/16 |
|
|
JMAPDD-26XLRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
- |
MADD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 18.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/20 |
|
|
JMACDG-18XPRELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
- |
MAC | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
3-1617122-1RELAY GENERAL PURPOSE DPDT 1A 6V |
0 |
|
规格书 |
MAC | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 61.2 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.28 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
2-1617150-0RELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
规格书 |
MGS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 15 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7.8 VDC | 1.3 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
3-1617352-8RELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
规格书 |
MGS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.7 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
2-1617150-8RELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
规格书 |
MGS, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 78.1 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.9 VDC | 0.8 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMACDD-26XLRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
- |
MAC | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
9-1617351-2RELAY GEN PURPOSE SPDT 1A 12V |
0 |
|
规格书 |
1MS, CII | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | 11.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 4 ms | 2.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
