上传BOM
信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AGQ210S4HRELAY TELECOM DPDT 2A 4.5V |
4,284 |
|
规格书 |
AGQ | Box | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 22.2 mA | Latching, Single Coil | - | Gull Wing | - | - | 3.38 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
AGQ21003RELAY TELECOM DPDT 2A 3V |
447 |
|
规格书 |
AGQ | Box | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Single Coil | - | PC Pin | - | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
UA2-3NURELAY GENERAL PURPOSE DPDT 1A 3V |
4,178 |
|
规格书 |
UA2 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
AGQ2001HRELAY TELECOM DPDT 2A 1.5V |
942 |
|
规格书 |
AGQ | Tube | Active | Through Hole | 1.5VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 93.8 mA | Non Latching | - | PC Pin | - | - | 1.13 VDC | 0.15 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
UA2-5SNURELAY GENERAL PURPOSE DPDT 1A 5V |
3,259 |
|
规格书 |
UA2 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 20 mA | Latching, Single Coil | - | PC Pin | - | - | 3.75 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
AGN210A06RELAY TELECOM DPDT 1A 6V |
790 |
|
规格书 |
AGN | Tube | Active | Surface Mount | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 16.7 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 4.5 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
J8502CS12VDCRELAY GEN PURPOSE DPDT 1A 12V |
2,935 |
|
规格书 |
J850 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 11.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
TX2-4.5V-1RELAY TELECOM DPDT 1A 4.5V |
779 |
|
规格书 |
TX | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 220VDC - Max | 220VA | 31 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|

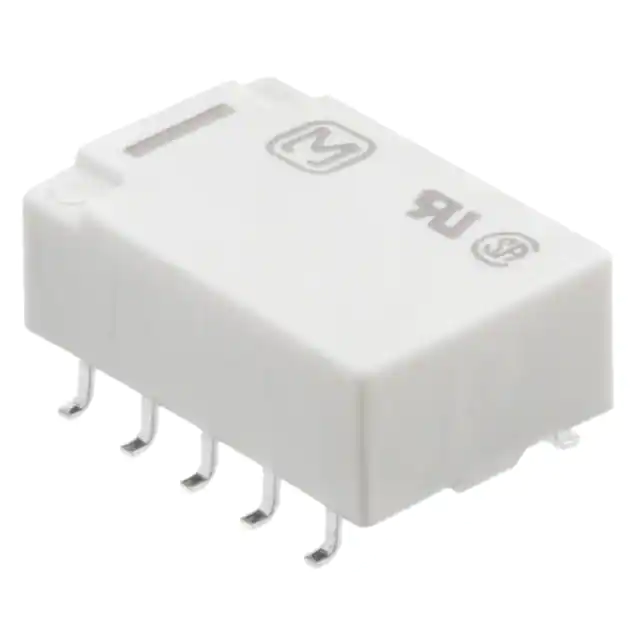

TQ2SS-5VRELAY TELECOM DPDT 2A 5V |
2,164 |
|
规格书 |
TQ-SMD | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 28.1 mA | Non Latching | - | Gull Wing | - | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
G5V-1 DC6RELAY GENERAL PURPOSE SPDT 1A 6V |
1,878 |
|
规格书 |
G5V-1 | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 25 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
G5V-1-2 DC24RELAY GEN PURPOSE SPDT 1A 24V |
681 |
|
规格书 |
G5V-1 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 6.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
AGQ210S03RELAY TELECOM DPDT 2A 3V |
1,492 |
|
规格书 |
AGQ | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
AGN210A4HRELAY TELECOM DPDT 1A 4.5V |
667 |
|
规格书 |
AGN | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 22.2 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 3.38 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
UA2-4.5NURELAY GEN PURPOSE DPDT 1A 4.5V |
5,839 |
|
规格书 |
UA2 | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 31 mA | Non Latching | - | PC Pin | - | - | 3.38 VDC | 0.45 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
TX2SA-5V-XRELAY TELECOM DPDT 2A 5V |
545 |
|
规格书 |
TX | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 28.1 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
TX2-L-12VRELAY TELECOM DPDT 2A 12V |
511 |
|
规格书 |
TX | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 8.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
EE2-4.5NURELAY GEN PURPOSE DPDT 2A 4.5V |
2,165 |
|
规格书 |
EE2 | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Non Latching | - | Gull Wing | - | - | 3.38 VDC | 0.45 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
TX2-L-3VRELAY TELECOM DPDT 2A 3V |
1,727 |
|
规格书 |
TX | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 33.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
UC2-3NURELAY GENERAL PURPOSE DPDT 1A 3V |
121 |
|
规格书 |
UC2 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
AGN20003RELAY TELECOM DPDT 1A 3V |
1,242 |
|
规格书 |
AGN | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 46.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
