信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

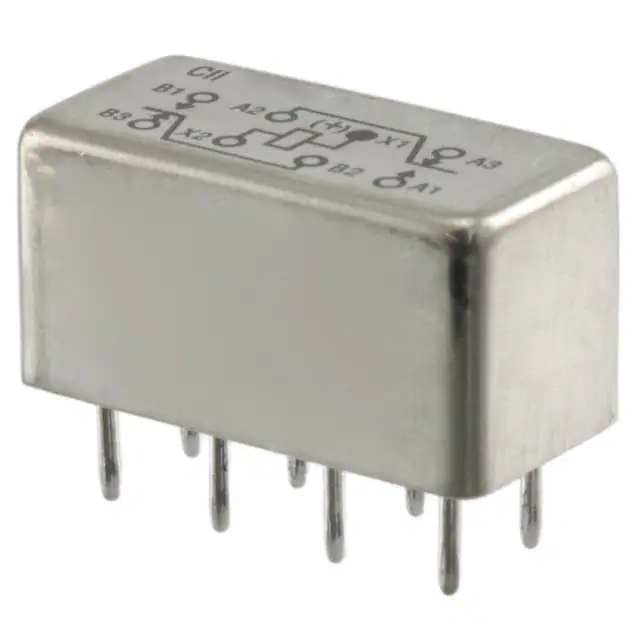

HFW1201L02MRELAY GENERAL PURPOSE DPDT 2A 5V TE Connectivity Aerospace, Defense and Marine |
43 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 185.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.29 VDC | - | - | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|

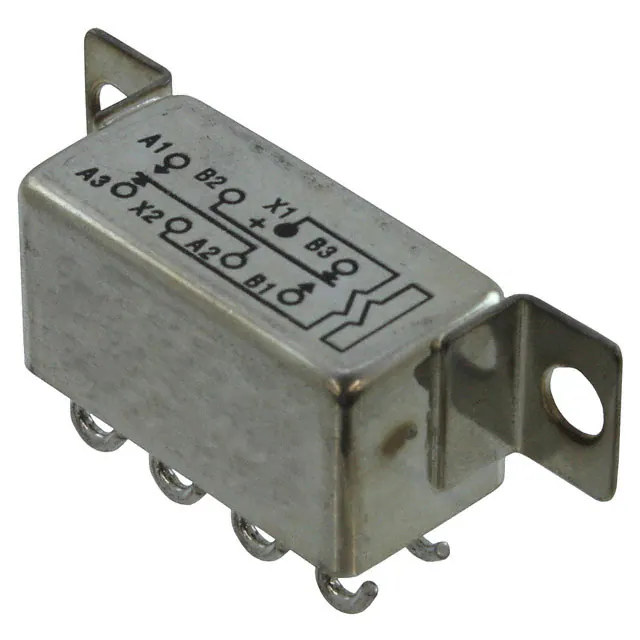

HMB1131K01MRELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
0 |
|
规格书 |
HMB, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 15 VDC | 1.5 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | Military | - |
|

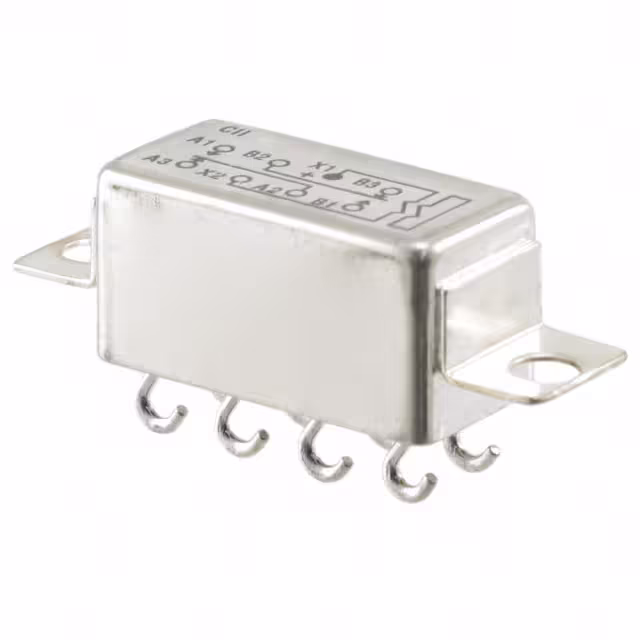

HMB1130K01MRELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
11 |
|
规格书 |
HMB, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 15 VDC | 1.5 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | Military | MIL-R-39016/22 |
|

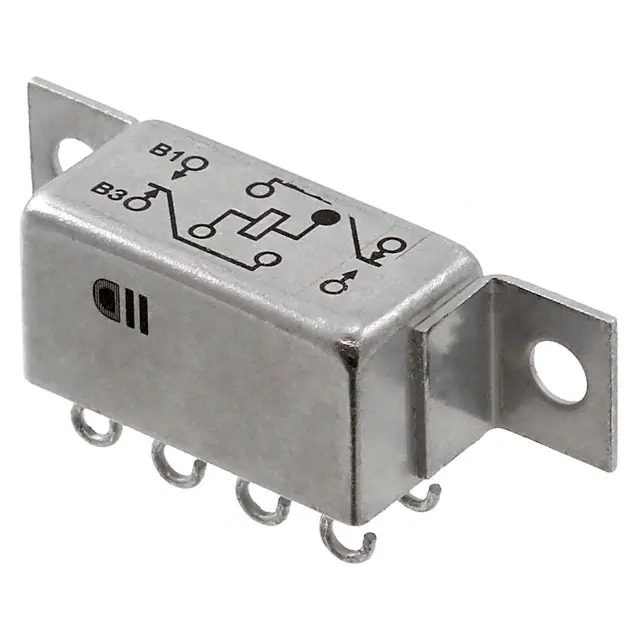

3SBC1506A2RELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
10 |
|
规格书 |
3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/13 |
|

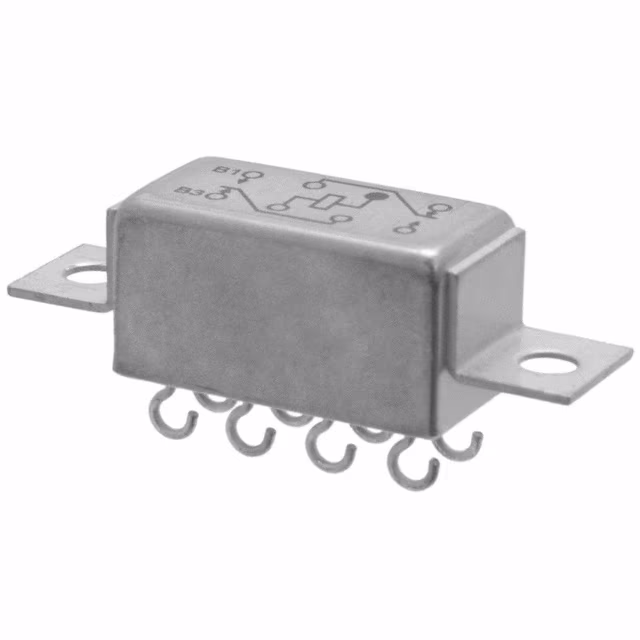

3SBC1527A2RELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
2 |
|
规格书 |
3SBC, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 19.6 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/13 |
|
3SBC1517A2RELAY GEN PURPOSE DPDT 2A 12V TE Connectivity Aerospace, Defense and Marine |
1 |
|
规格书 |
3SBC, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 57.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 5.4 VDC | 0.6 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/13 |
|
JMSWD-5XPRELAY GENERAL PURPOSE DPDT 1A 5V TE Connectivity Aerospace, Defense and Marine |
0 |
|
规格书 |
MSD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/16 |
|

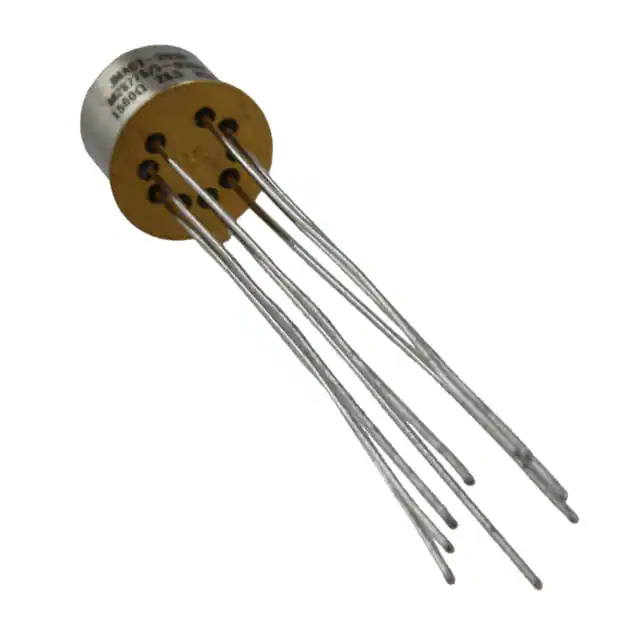

JMACT-26XPRELAY GEN PURPOSE DPDT 1A 26.5V TE Connectivity Aerospace, Defense and Marine |
0 |
|
规格书 |
MAT, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 19.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-28776/1 |
|

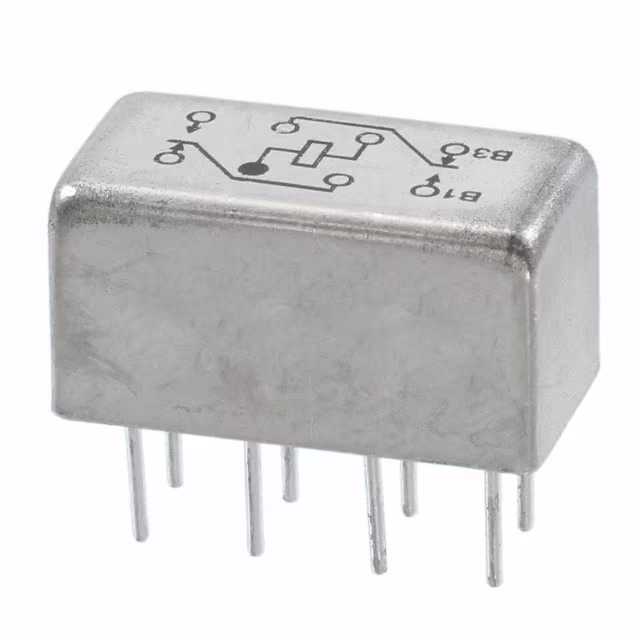

3SBC5004K1RRELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
0 |
|
规格书 |
3SBC, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 19.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
PRMAC-26YRELAY GEN PURPOSE DPDT 1A 26.5V TE Connectivity Aerospace, Defense and Marine |
0 |
|
规格书 |
PRMAC | Bulk | Discontinued at Digi-Key | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
