信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6-1462037-6RELAY TELECOM DPDT 2A 12V |
8,653 |
|
规格书 |
IM, AXICOM | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Hermetically | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
|
TX2-LT-5VRELAY TELECOM DPDT 2A 5V |
7,045 |
|
规格书 |
TX | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 40 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.75 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
EC2-5SNURELAY GENERAL PURPOSE DPDT 2A 5V |
1,506 |
|
规格书 |
EC2 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 20 mA | Latching, Single Coil | - | PC Pin | - | - | 3.75 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EC2-4.5TNURELAY GEN PURPOSE DPDT 2A 4.5V |
838 |
|
规格书 |
EC2 | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Latching, Dual Coil | - | PC Pin | - | - | 3.38 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
TXD2SA-5V-ZRELAY GENERAL PURPOSE DPDT 2A 5V |
3,513 |
|
规格书 |
TX-D | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440W | 40 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
EA2-12TNURELAY GEN PURPOSE DPDT 1A 12V |
5,766 |
|
规格书 |
EA2 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 11.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 9 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
EC2-3TNURELAY GENERAL PURPOSE DPDT 2A 3V |
1,530 |
|
规格书 |
EC2 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 46.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|

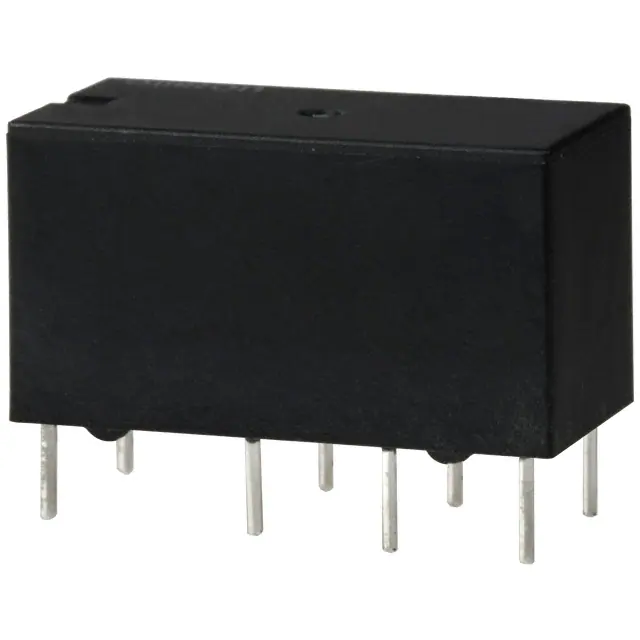

G5V-2 DC9RELAY GENERAL PURPOSE DPDT 2A 9V |
915 |
|
规格书 |
G5V-2 | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 55.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.45 VDC | 7 ms | 3 ms | -25°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G5V-2 DC6RELAY GENERAL PURPOSE DPDT 2A 6V |
182 |
|
规格书 |
G5V-2 | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 125VAC, 125VDC - Max | - | 83.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.3 VDC | 7 ms | 3 ms | -25°C ~ 65°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
G6S-2G-Y DC24RELAY TELECOM DPDT 2A 24V |
695 |
|
规格书 |
G6S | Tube | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 9.6 mA | Non Latching | - | J Lead | - | - | 18 VDC | 2.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
G6L-1F DC3RELAY TELECOM SPST 1A 3V |
3,221 |
|
规格书 |
G6L | Tube | Active | Surface Mount | 3VDC | SPST-NO (1 Form A) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 60 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 70°C | - | Telecom | - | - |
|
|
G6L-1P DC3RELAY TELECOM SPST 1A 3V |
1,734 |
|
规格书 |
G6L | Tube | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 70°C | - | Telecom | - | - |
|
TQ2SA-9VRELAY TELECOM DPDT 2A 9V |
1,691 |
|
规格书 |
TQ-SMD | Tube | Active | Surface Mount | 9VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 15.5 mA | Non Latching | - | Gull Wing | - | - | 6.75 VDC | 0.9 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
G6L-1F DC4.5RELAY TELECOM SPST 1A 4.5V |
758 |
|
规格书 |
G6L | Tube | Active | Surface Mount | 4.5VDC | SPST-NO (1 Form A) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 40 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.38 VDC | 0.45 VDC | 5 ms | 5 ms | -40°C ~ 70°C | - | Telecom | - | - |
|
|
G6L-1P DC4.5RELAY TELECOM SPST 1A 4.5V |
660 |
|
规格书 |
G6L | Tube | Active | Through Hole | 4.5VDC | SPST-NO (1 Form A) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.38 VDC | 0.45 VDC | 5 ms | 5 ms | -40°C ~ 70°C | - | Telecom | - | - |
|
IM02JRRELAY TELECOM DPDT 2A 4.5V |
5,074 |
|
规格书 |
IM, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Non Latching | - | J Lead | Sealed - Hermetically | - | 3.38 VDC | 0.45 VDC | 3 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
|
|
EC2-5TNURELAY GENERAL PURPOSE DPDT 2A 5V |
2,990 |
|
规格书 |
EC2 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 28 mA | Latching, Dual Coil | - | PC Pin | - | - | 3.75 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
TX2SS-12VRELAY TELECOM DPDT 2A 12V |
335 |
|
规格书 |
TX | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 11.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
G5V-2-H1 DC3RELAY GENERAL PURPOSE DPDT 1A 3V |
407 |
|
规格书 |
G5V-2 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 125VDC - Max | - | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.15 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TQ2H-24VRELAY TELECOM DPDT 1A 24V |
292 |
|
规格书 |
TQ | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
