上传BOM
信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

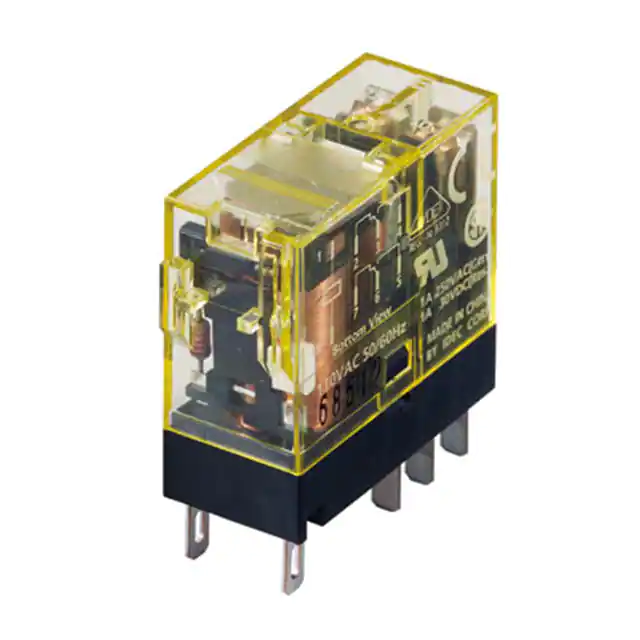

RJ22S-C-A120RELAY GEN PURPOSE DPDT 1A 120V IDEC |
166 |
|
规格书 |
RJ | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 1 A | 250VAC, 30VDC - Max | 250VA, 30W | 7.5 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
RJ22V-A-D24RELAY GEN PURPOSE DPDT 1A 24V IDEC |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22V-A-D12RELAY GEN PURPOSE DPDT 1A 12V IDEC |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 44.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22V-A-D5RELAY GEN PURPOSE DPDT 1A 5V IDEC |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22V-A-D48RELAY GEN PURPOSE DPDT 1A 48V IDEC |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 11 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22V-C-D24RELAY GEN PURPOSE DPDT 1A 24V IDEC |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22V-C-D5RELAY GEN PURPOSE DPDT 1A 5V IDEC |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22V-C-D12RELAY GEN PURPOSE DPDT 1A 12V IDEC |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 44.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22V-C-D48RELAY GEN PURPOSE DPDT 1A 48V IDEC |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 11 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ22V-A-D100RELAY GEN PURP DPDT 1A 100-110V IDEC |
0 |
|
- |
RJ | Bulk | Obsolete | Through Hole | 100 ~ 110VDC | DPDT (2 Form C) | 1 A | 250VAC, 125VDC - Max | 250VA, 125W | 5.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | - | - | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
