上传BOM
射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP-LPWAN-Q-S2-BL-15ANTENNA PLUS LPWAN ANTENNA AirGain |
2 |
|
规格书 |
- | Bag | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 920MHz | 890MHz ~ 950MHz | Dome | 1 | 1.5 | - | 3dBi | - | Cable - 4.572m | SMA Male | - | - | - | Panel Mount | 0.622" (15.80mm) | ISM, LPWAN |
|

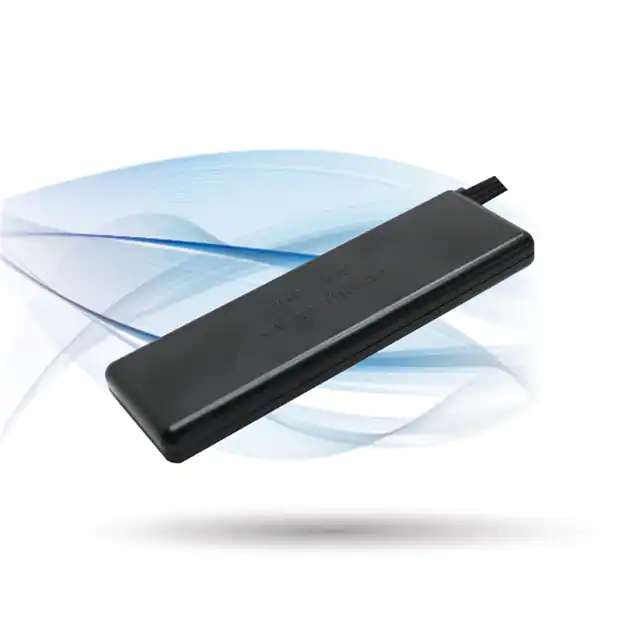

AP-GL-CCWG-BL-10ANTENNA PLUS ULTRAMAX GLASS ANTE AirGain |
13 |
|
- |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.575GHz, 1.62GHz, 2.2GHz, 2.4GHz, 5.45GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Module | 6 | - | - | 3.5dBi, 30.5dBi, 4.5dBi, 7dBi, 5dBi | - | Cable - 3.05m | RP-SMA Male (1), SMA Male (2) | - | - | - | Adhesive | 0.670" (17.02mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|

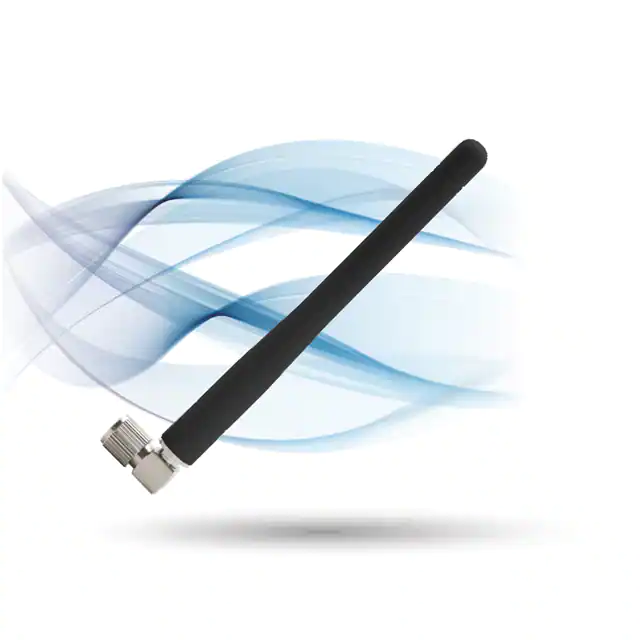

AP-DIPOLE-C-IN-S2-BLANTENNA PLUS DIPOLE ANTENNA AirGain |
0 |
|
规格书 |
- | Box | Active | Cellular | UHF (1GHz ~ 2GHz) | 1.7GHz | 700MHz ~ 2.7GHz | Whip, Right Angle | 1 | - | - | 4.4dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.567" (116.00mm) | LTE |
|

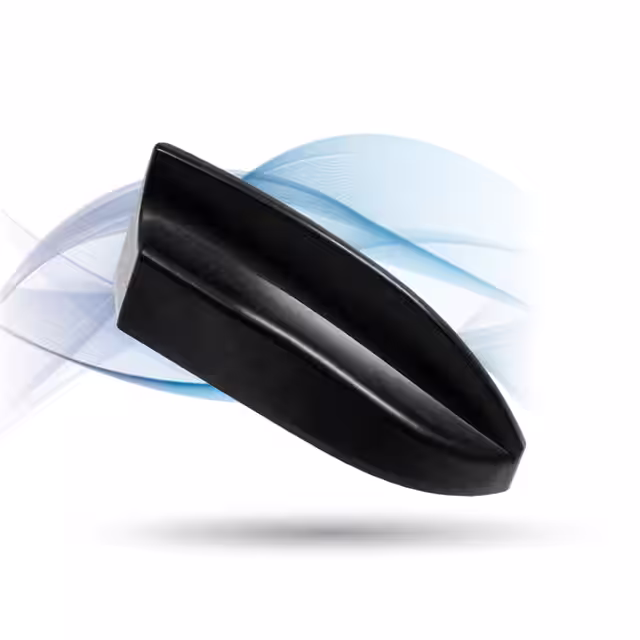

AP-MMF-CCWWG-Q-SMA-RP34-BLANTENNA PLUS MULTIMAX FV MIMO AN AirGain |
0 |
|
规格书 |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AP-MMF-CCWWWG-Q-SMA-RP345-BLANTENNA PLUS MULTIMAX FV MIMO AN AirGain |
0 |
|
规格书 |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

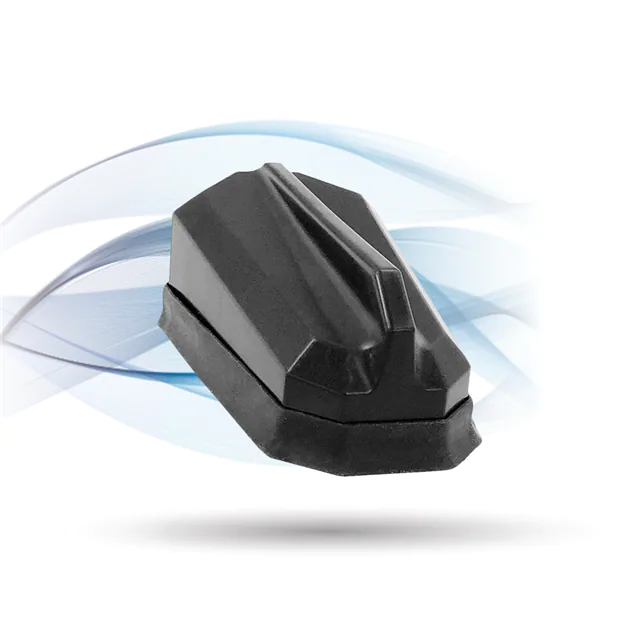

AP-CCWWG-Q-S22222-RP34-BLANTENNA PLUS ULTRAMAX MIMO ANTEN AirGain |
0 |
|
规格书 |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.58GHz, 2.2GHz, 2.4GHz, 5.45GHz | 698MHz ~ 960MHz, 1.55GHz ~ 1.61GHz, 1.7GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Module | 5 | - | - | 2dBi, 30.5dBi, 6dBi, 7dBi, 5dBi | - | Cable - 4.572m | RP-SMA Male (1), SMA Male (2) | - | - | - | Panel Mount | 2.220" (56.40mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
AP-M2M-SN-BLANTENNA PLUS M2M SALT SHAKER ANT AirGain |
0 |
|
规格书 |
- | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Dome | 2 | - | - | 3dBi, 6dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 3.236" (82.20mm) | LTE |
|
AP-CCWWWG-Q-S222222-RP345-BLANTENNA PLUS ULTRAMAX MIMO ANTEN AirGain |
0 |
|
规格书 |
- | Bag | Obsolete | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.58GHz, 2.2GHz, 2.4GHz, 5.45GHz | 698MHz ~ 960MHz, 1.55GHz ~ 1.61GHz, 1.7GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Module | 5 | - | - | 4.9dBi, 2.5dBi, 7dBi, 7dBi, 5dBi | - | Cable - 4.572m | RP-SMA Male (1), SMA Male (2) | - | - | - | Panel Mount | 2.220" (56.40mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
AP-M2M1-CC-Q-S22-WH-6ANTENNA PLUS M2MAX MIMO ANTENNA AirGain |
0 |
|
规格书 |
M2MAX® | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Blade | 2 | - | - | 3dBi, 6dBi | - | Cable - 3.05m | SMA Male | - | - | - | Bolt | 2.150" (54.60mm) | Cellular, LTE |
|
|
AP-M2M1-CC-Q-S22-BL-6ANTENNA PLUS M2MAX MIMO ANTENNA AirGain |
0 |
|
规格书 |
M2MAX® | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Blade | 2 | - | - | 3dBi, 6dBi | - | Cable - 3.05m | SMA Male | - | - | - | Bolt | 2.150" (54.60mm) | Cellular, LTE |
