射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

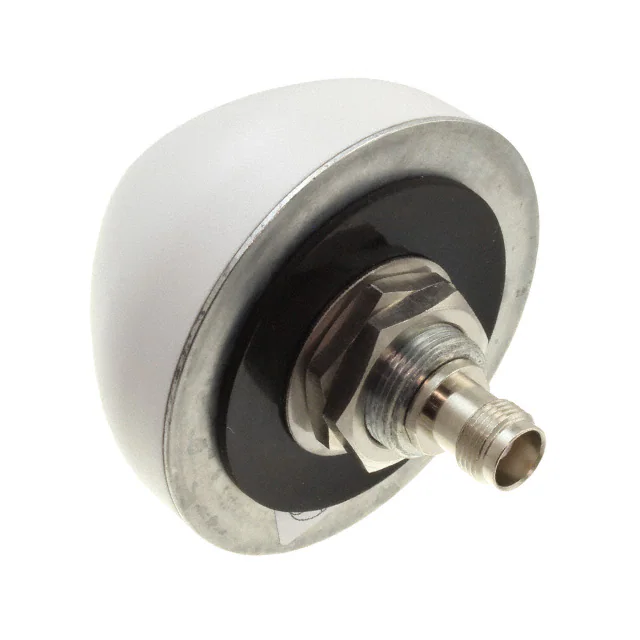

33-3752-01-01ANT GPS/GLONASS/BEIDOU/GALILEO Calian |
8 |
|
规格书 |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Dome | 1 | 1.5 | - | 4.5dBi | - | LNA | TNC Female | IP67 | - | - | Panel Mount | 1.870" (47.50mm) | Beidou, Galileo, GLONASS, GPS |
|
33-7872-00-3000GPS L1/L2+GLONASS G1/G2 + GALILE Calian |
7 |
|
规格书 |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.237GHz, 1.5815GHz | 1.213GHz ~ 1.261GHz, 1.557GHz ~ 1.606GHz | Dome | 2 | 1.8 | - | 3.8dBi, 4.5dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.866" (22.00mm) | Beidou, Galileo, GLONASS, GPS |
|

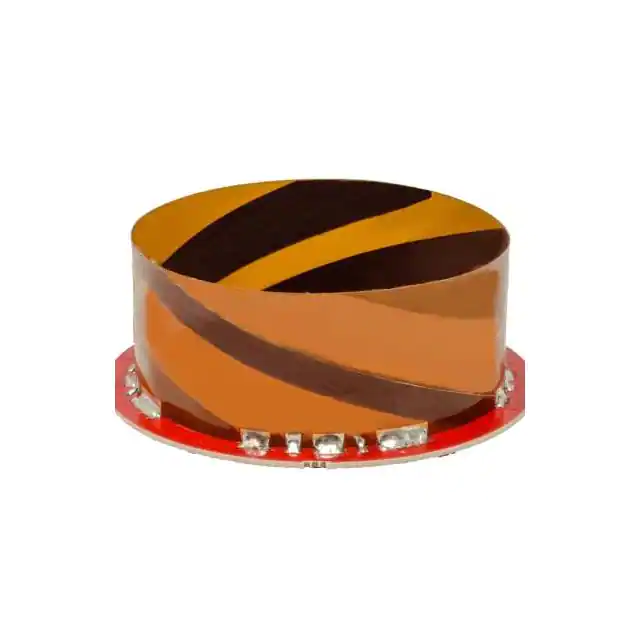

33-HC990EXF-35-00-1500EXTENDED FILTER, FULL BAND Calian |
18 |
|
- |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.232GHz, 1.549GHz, 1.5825GHz | 1.164GHz ~ 1.3GHz, 1.539GHz ~ 1.559GHz, 1.559GHz ~ 1.606GHz | Helical | 3 | 1.8 | - | 1.6dBic, 2dBic, 2.1dBic, 2.2dBic, 2.3dBic, 2.4dBic, 2.5dBic, 2.7dBic | - | Cable - 1.5m, LNA, Filter | - | - | - | - | Base Mount | 0.984" (25.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
33-HC990XF-35FULL GNSS SPECTRUM + L-BAND WITH Calian |
25 |
|
规格书 |
- | Bag | Active | Cellular, Navigation | UHF (1GHz ~ 2GHz) | 1.232GHz, 1.582GHz | 1.164GHz ~ 1.3GHz, 1.559GHz ~ 1.606GHz | Dome | 2 | 1.8 | - | 35dBi, 35dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Screw Mount | 1.476" (37.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS, IRNSS, LTE, NavIC, QZSS, SBAS |
|
|
33-3997EXF-00-5000EXTENDED FILTER FULL BAND PLUS L Calian |
11 |
|
规格书 |
- | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
33-3972XF-14-01EXTENDED FILTER, TRIPLE BAND Calian |
3 |
|
- |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.2075GHz, 1.549GHz, 1.5825GHz | 1.16GHz ~ 1.255GHz, 1.539GHz ~ 1.559GHz, 1.559GHz ~ 1.606GHz | Dome | 3 | 1.8 | - | -1.5dBic, 2.5dBic, 3.5dBic, 4dBic | - | LNA, Filter | M18 | IP69K | - | - | Through Hole | 0.827" (21.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
33-605000-01-01VERAPHASE 6000 GEODETIC ANTENNA Calian |
3 |
|
规格书 |
- | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.542GHz | 1.525GHz ~ 1.559GHz | - | 1 | - | - | - | - | LNA | TNC Female | - | - | - | Screw Mount | - | General Purpose |
|

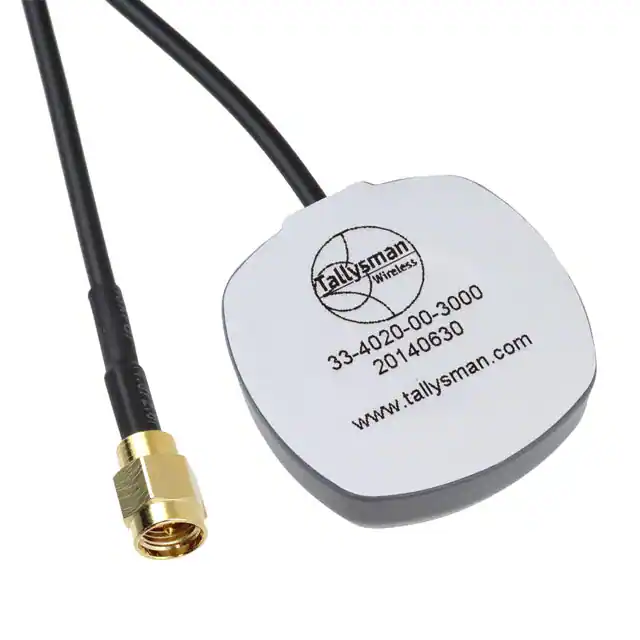

33-4020-00-3000RF ANT 1.575GHZ DOME CAB MAG 3M Calian |
36 |
|
规格书 |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.578GHz | Dome | 1 | 1.5 | -10dB | 4.5dBic | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.563" (14.30mm) | GPS |
|
33-2012-00-3000PRE-FILTERED, GPS L1, SMA STRAIG Calian |
2 |
|
规格书 |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.5725GHz ~ 1.578GHz | Dome | 1 | 1.8 | - | 4dBi | - | Cable - 3m, LNA | SMA Male | IP67 | - | - | Magnetic | 0.591" (15.00mm) | GPS |
|

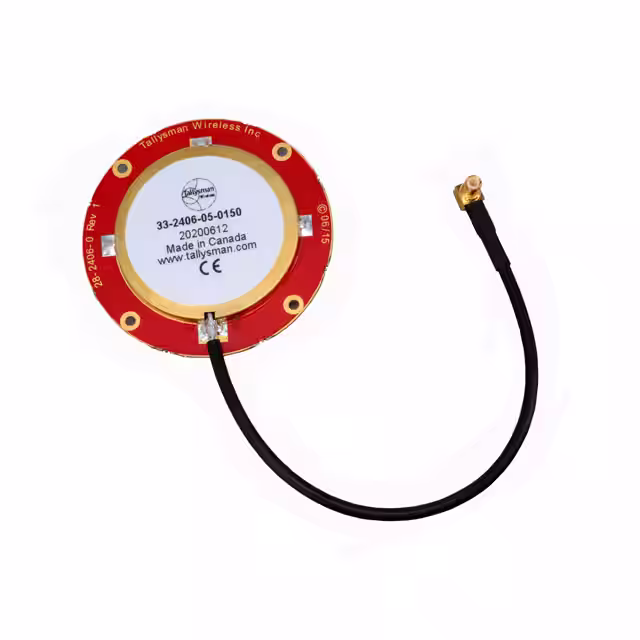

33-2406-05-0150EMBEDDED, GPS L1+GLONASS L1, MCX Calian |
4 |
|
规格书 |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.574GHz ~ 1.606GHz | Ceramic Patch | 1 | 1.8 | - | 4.25dBi | - | Cable - 150mm, LNA | MCX Male | - | - | - | Adhesive | 0.307" (7.80mm) | GLONASS, GPS |
