射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HGV-906U-NMANTOMNI 800/900MHZ 6DBI, N-MALE |
0 |
|
- |
HGV | Bag | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 892MHz | 824MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | 6dBi | 50 W | - | N Type Male | - | - | - | Connector Mount | 22.300" (566.42mm) | GSM, ISM, LoRa, LPWAN, WLAN |
|
WRL-13982RF ANT 700MHZ WHIP TILT SMA MALE |
0 |
|
规格书 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 700MHz | 300MHz ~ 1.1GHz | Whip, Tilt | 1 | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | 9.646" (245.00mm) | - |
|
|
ASP7455MOSAIC VIBRATION COLLINEAR ANTEN |
0 |
|
规格书 |
- | Bag | Active | - | VHF (f < 300MHz) | 156MHz | 138MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 150 W | - | - | - | - | - | Magnetic | 54.000" (137.16cm) | - |
|
|
RE04U-RSPANTMAGMNT 2.4GHZ 4DBI RSP 4' |
0 |
|
- |
RE | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | - | - | 4dBi | - | Cable - 1.2192m | RP-SMA | - | - | - | Magnetic | 7.900" (200.66mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
|
B4303SRF ANT 430MHZ WHIP STR NMO BASE |
0 |
|
规格书 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 430MHz | 430MHz ~ 450MHz | Whip, Straight | 1 | 2 | - | 3dBi | 200 W | - | NMO | - | - | - | Base Mount | 23.000" (584.20mm) | - |
|
|
HCR8065M3PWN-001RF ANT 1.8/1.9GHZ WHIP STR N FEM |
0 |
|
规格书 |
- | Bulk | Active | Cellular | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 1.71GHz ~ 2.7GHz | Whip, Straight | 1 | 2 | - | 3.2dBi | 10 W | - | N Type Female | IP67 | - | - | Panel Mount | 3.280" (83.30mm) | LTE |
|
|
ST0228-40-501-BEXTERNAL ANTENNA 2400-2500 MHZ |
0 |
|
- |
- | Bulk | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | - | -10dB | 7.5dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 16.142" (410.00mm) | Bluetooth, IoT, Wi-Fi |
|
ETRAB7603ANT OMNI PHE NMO 760-870MHZ |
0 |
|
- |
Phantom Elite® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 815MHz | 760MHz ~ 870MHz | Whip, Straight | 1 | - | - | - | - | - | NMO | - | - | - | Base Mount | - | - |
|
|
GPS0012ANTENNA GPS 1575.4 MHZ |
0 |
|
规格书 |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | 2 | -10dB | 5dBic | - | Cable - 5.1816m | BNC | - | - | - | Magnetic | 0.500" (12.70mm) | GPS |
|
|
LPT2400NMOHFWANT WHITE NMOHF TRANSIT ANTENN |
0 |
|
- |
- | Bag | Active | Cellular | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | - | - | 5dBi | 10 W | - | NMO | - | - | - | Magnetic | 3.000" (76.20mm) | 4G, LTE |
|
APAMSJ-147RF ANT 850MHZ/900MHZ MOD SMA ADH |
0 |
|
规格书 |
APAMS | Bulk | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.592GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz | Module | 2 | 1.6, 1.5, 2.4 | -12.7dB, -14dB, -7.7dB | 1.5dBi, 0.5dBi | 25 W | Cable - 3m, 2.7m, LNA | SMA Male (2) | IP67 | - | - | Adhesive | 0.591" (15.00mm) | AMPS, DCS, GLONASS, GPS, GSM, PCS, UMTS |
|
|
ANT-GSMGPS-SMAWIRELESS ANTENNA |
0 |
|
规格书 |
- | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.575GHz, 1.94GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Module | 3 | 2, 2.5 | - | 2dBi, 0dBic, 2dBi | - | Cable - 3m, LNA | SMA Male | IP65, IP68 | - | - | Adhesive | 0.642" (16.30mm) | GPS, GSM |
|

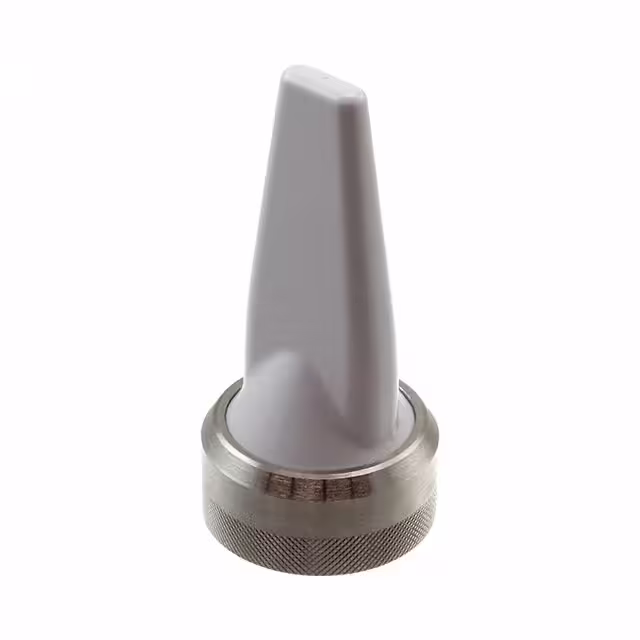

SLPT806NMOWRF ANT 883MHZ BLADE NMO BASE MT |
0 |
|
规格书 |
Shadow | Bulk | Active | Cellular, WiFi | UHF (300MHz ~ 1GHz) | 883MHz | 806MHz ~ 960MHz | Dome | 1 | 2 | - | 3.2dBi | - | - | NMO | IP67 | - | - | Base Mount | 3.099" (78.71mm) | LTE, WLAN |
|
33-1600-09-0180RF ANT 1.6GHZ CER PATCH MMCX MAL |
0 |
|
规格书 |
Accutenna® | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.616GHz ~ 1.626GHz | Ceramic Patch | 1 | 1.5 | - | 4.5dBic | - | - | MMCX Male | - | - | - | Surface Mount | 0.331" (8.40mm) | Iridium™ |
|
|
33-1600-09-0150ANTENNA IRIDIUM U.FL |
0 |
|
规格书 |
Accutenna® | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.62GHz | 1.605GHz ~ 1.635GHz | Ceramic Patch | 1 | 1.8 | -10dB | 4.5dBic | - | Cable - 150mm, LNA | - | IP67 | - | - | Adhesive, Magnetic | 0.394" (10.00mm) | Iridium™ |
|
|
33-1600-09-0095RF ANT 1.621GHZ CERAM PATCH ADH |
0 |
|
- |
Accutenna® | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.62GHz | 1.605GHz ~ 1.635GHz | Ceramic Patch | 1 | 1.8 | -10dB, -5dB | 4.5dBic | - | Cable - 95mm, LNA | - | IP67 | - | - | Adhesive, Magnetic | 0.394" (10.00mm) | Iridium™ |
|
|
33-1600-09-0200RF ANT 1.621GHZ CERAM PATCH ADH |
0 |
|
- |
Accutenna® | Bulk | Active | - | UHF (1GHz ~ 2GHz) | 1.62GHz | 1.605GHz ~ 1.635GHz | Ceramic Patch | 1 | 1.8 | -10dB | 4.5dBic | - | Cable - 200mm, LNA | - | IP67 | - | - | Adhesive, Magnetic | 0.394" (10.00mm) | Iridium™ |
|
W765FL-12-AM-AGDPRF ANT 850MHZ/900MHZ DOME PNL MT |
0 |
|
规格书 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.8GHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Dome | 4 | 2 | - | 2dBi | - | Cable - 305mm | SMA Male | - | - | - | Panel Mount | 2.835" (72.00mm) | - |
|
|
LPT600/3800DMNANT 0.617-3.8GHZ N-STUD BLK |
0 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 788.5MHz, 1.94GHz, 2.5GHz, 3.6GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz | Dome | 4 | 2.5, 3 | -6dB, -7dB | 3.9dBi, 5.3dBi, 5.4dBi, 4.7dBi | 60 W | - | N Type Female | IP67 | - | - | Connector Mount | 3.118" (79.20mm) | 4G, 5G, LTE |
|
|
SPHS15450ANTENNA SP HELSH 1-4W 450M BNC |
0 |
|
规格书 |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 450MHz | 432MHz ~ 468MHz | Helical | 1 | - | - | - | - | - | BN | - | - | - | Connector Mount | 3.000" (76.20mm) | - |
