射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

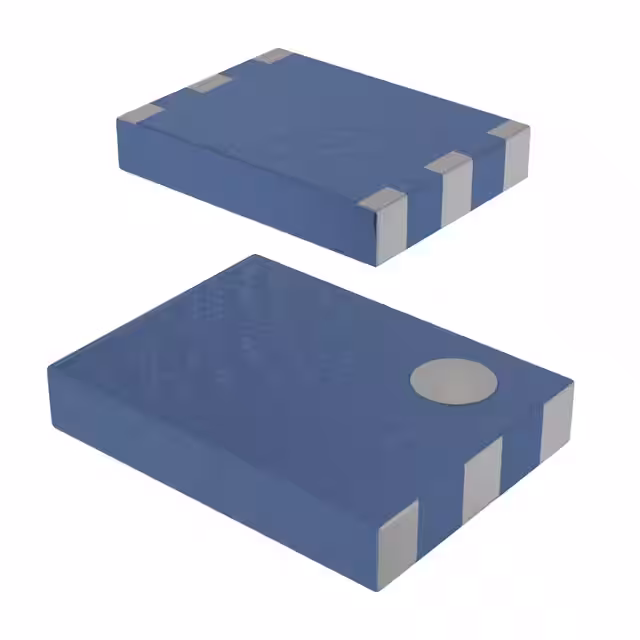

4311-111-00245RF ANT 2.4GHZ CHIP SOLDER SMD |
0 |
|
规格书 |
- | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.2dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, WLAN |
|
0403AT62A0003001ERF ANT 403MHZ CHIP SOLDER SMD |
0 |
|
规格书 |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 403MHz | 402MHz ~ 405MHz | Chip | 1 | - | -9.5dB | 0dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
1005190F0-AA70L0200ANTENNA ASSY, UWB68 F0 0200 MHF |
0 |
|
规格书 |
- | Box | Active | - | SHF (f > 4GHz) | 7.5GHz | 6.5GHz ~ 8.5GHz | PCB Trace | 1 | 2 | - | 5.3dBi | 10 W | Cable - 200mm | MHF | - | - | - | Adhesive | 0.008" (0.20mm) | UWB |
|
W3P35X8W04-U050D3B0AANTENNA ASSY, WLAN 04 50 F |
0 |
|
规格书 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | - | -6dB, -10dB, -15dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1001435M0-AA10L0100ANTENNA ASSY, WLAN 100 |
0 |
|
规格书 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | - | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi | 500 mW | Cable - 100mm | Solder | - | - | - | Adhesive | 0.382" (9.70mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1001435M0-AA10L0070ANTENNA ASSY, WLAN 70 |
0 |
|
规格书 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | - | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi | 500 mW | Cable - 70mm | Solder | - | - | - | Adhesive | 0.382" (9.70mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W1P35X8W04-U050D3B0AANTENNA ASSY, WLAN1 04 50 |
0 |
|
规格书 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.48GHz | PCB Trace | 1 | - | -15dB | 2.8dBi | - | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
SRF2W012-50RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
0 |
|
规格书 |
Dromus | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 2 | 1.8 | -14dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | WLAN |
|
SRF2W021-150RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
0 |
|
规格书 |
Amoris | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 2 | 1.7 | -14dB, -10dB | 2.8dBi, 5.1dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Wi-Fi |
|
7488915724WE-MCA SMT-MULTILAYER CHIP ANTEN |
0 |
|
规格书 |
WE-MCA | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.45GHz | 1.575GHz ~ 1.58GHz, 2.4GHz ~ 2.5GHz | Chip | 2 | 2.5 | - | 0.69dBi | - | - | Solder | - | - | - | Surface Mount | 0.067" (1.70mm) | Bluetooth, GPS, GSM, LTE, Wi-Fi, WLAN, Zigbee™ |
|
|
W1100ANTENNA DUALBAND WIFI SMA STUBBY |
0 |
|
规格书 |
External Stubby | Box | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.425GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz | Whip, Straight | 2 | - | -1.5dB, -6dB | 1dBi, 3dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 2.000" (50.80mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
1001932RF ANT 2.4GHZ/5GHZ PCB ADH 100MM |
0 |
|
规格书 |
Prestta™ | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 3.7dBi, 3.4dBi, 4.4dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
CAN4311112001881KANTENNA WCDMA LPMODE CERAMIC SMD |
0 |
|
规格书 |
- | Tape & Reel (TR) | Obsolete | - | UHF (1GHz ~ 2GHz) | 2GHz | 1.88GHz ~ 2.1GHz | Chip | 1 | 2 | - | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | - |
|
|
W1P35X8W04-U100D3B0AANT ASSY, WLAN1 04 100 D0230 |
0 |
|
规格书 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz | 2.4GHz ~ 2.48GHz | PCB Trace | 1 | - | -15dB | 2.8dBi | - | Cable - 150mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1001435M0-AA10L0150ANTENNA ASSY, WLAN 150 |
0 |
|
规格书 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz | Stamped Metal | 2 | 2 | - | 4.2dBi, 4.7dBi, 6.4dBi, 6dBi | 500 mW | Cable - 150mm | Solder | - | - | - | Adhesive | 0.382" (9.70mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
1001932FT-AA10L0050ANTENNA ASSY, WLAN FT 50 |
0 |
|
规格书 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.4dBi | 500 mW | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
1001932FT-AA10L0025ANTENNA ASSY, WLAN FT 25 |
0 |
|
规格书 |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 4.4dBi | 500 mW | Cable - 25mm | U.FL | - | - | - | Adhesive | 0.063" (1.60mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

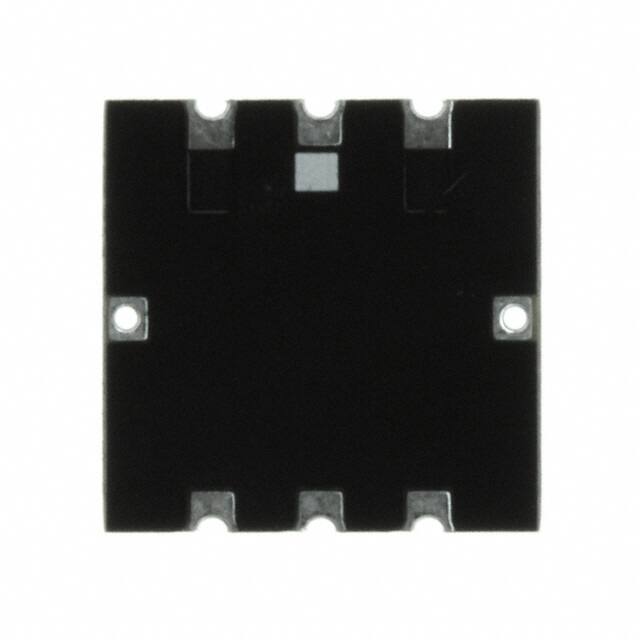

7488910235RF ANT 2.5GHZ/3.6GHZ CHIP SLD |
0 |
|
规格书 |
WE-MCA | Tape & Reel (TR) | Obsolete | - | Wide Band | 2.5GHz, 3.6GHz, 5.5GHz | 2.3GHz ~ 2.69GHz, 3.3GHz ~ 3.9GHz, 5.15GHz ~ 5.875GHz | Chip | 3 | 2 | - | 2dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | - |
|
SR4G013RF ANT 1.58GHZ CHIP SOLDER SMD |
0 |
|
规格书 |
lamiiANT® | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.559GHz ~ 1.609GHz | Chip | 1 | 2.2 | -8dB | 2.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.173" (4.40mm) | GNSS |
|
|
MAF94452ANT EMB 802.11 B/G NANOBLUE |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
