上传BOM
射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-433-WRT-SMARF ANT 433MHZ DOME SMA ML PNL MT TE Connectivity Linx |
0 |
|
规格书 |
WRT | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 400MHz, 410MHz | 425MHz ~ 441MHz | Dome | 1 | 1.9 | - | -0.9dBi | - | Cable - 216mm | SMA Male | - | - | - | Panel Mount | 1.063" (27.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-418-MHW-SMA-SRF ANT 418MHZ WHIP CTR CAB 79" TE Connectivity Linx |
0 |
|
规格书 |
MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 408MHz ~ 428MHz | Whip, Center-Fed Double | 1 | 1.9 | - | 2.1dBi | - | Cable - 2m | SMA Male | - | - | - | Adhesive | 5.906" (150.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
ANT-418-MHW-SMA-LRF ANT 418MHZ WHIP CTR CAB 180" TE Connectivity Linx |
0 |
|
规格书 |
MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 408MHz ~ 428MHz | Whip, Center-Fed Double | 1 | 1.9 | - | 2.1dBi | - | Cable - 4.6m | SMA Male | - | - | - | Adhesive | 5.906" (150.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

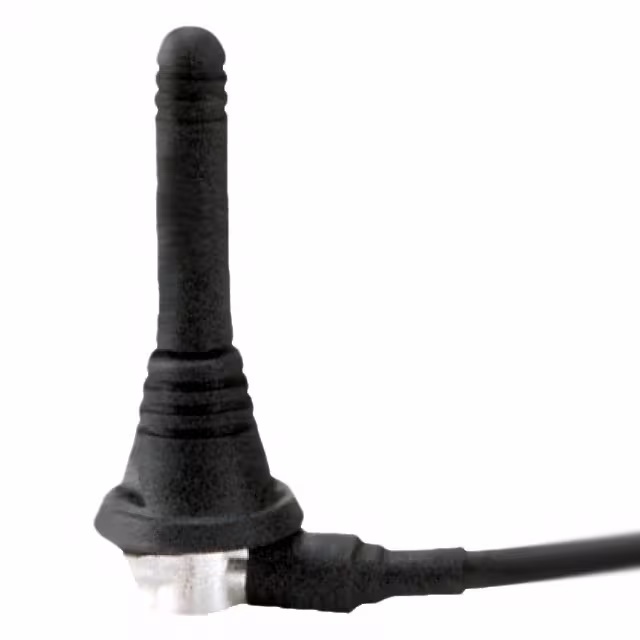

ANT-DB1-RMS-TNCRF ANT 892MHZ/1.9GHZ WHIP STR TE Connectivity Linx |
0 |
|
规格书 |
RMS | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 1.5, 2 | - | -0.6dBi, 5.3dBi | - | Cable - 4.3m | TNC | - | - | - | Panel Mount | 2.583" (65.60mm) | - |
|
|
ANT-DB1-RMS-RPSRF ANT 892MHZ/1.9GHZ WHIP STR TE Connectivity Linx |
0 |
|
规格书 |
RMS | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 1.5, 2 | - | -0.6dBi, 5.3dBi | - | Cable - 4.3m | RP-SMA Male | - | - | - | Panel Mount | 2.583" (65.60mm) | - |
|
ANT-2/5-HDP-2000-SMARF ANT 2.4GHZ/5.42GHZ FLAT CTR TE Connectivity Linx |
0 |
|
规格书 |
HDP | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz | Flat Bar | 3 | 1.9 | - | 4dBi, 1.5dBi, 1.5dBi | 10 W | Cable - 2m | SMA Male | IP67 | - | - | Adhesive | 0.244" (6.20mm) | Bluetooth, Thread, Wi-Fi, Zigbee™, 802.15.4, 802.11, U-NII |
|
ANT-DB1-RMS-SMAMULTI-BAND RMS SERIES VEHICLE RO TE Connectivity Linx |
0 |
|
- |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 1.5, 2 | - | -0.6dBi, 5.3dBi | - | Cable - 358.14mm | SMA | - | - | - | Through Hole | 3.060" (77.72mm) | General Purpose |
|

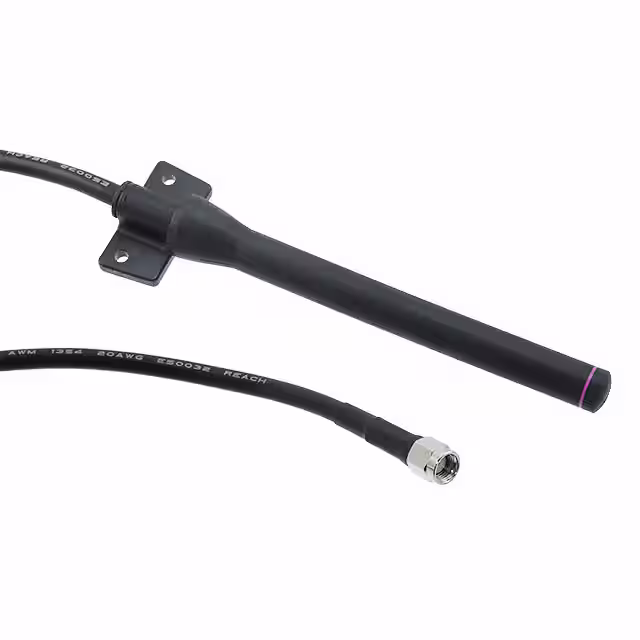

ANT-2.4-ID-1000-RPSRF ANT 2.4GHZ WHIP STR BRK MT 1M TE Connectivity Linx |
0 |
|
规格书 |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | 3dBi | - | Cable - 1m | RP-SMA Male | IP67 | - | - | Bracket Mount | 4.110" (104.40mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-916-ID-1000-SMARF ANT 916MHZ WHIP STR BRKT 1M TE Connectivity Linx |
0 |
|
规格书 |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 895MHz ~ 945MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 1m | SMA Male | IP67 | - | - | Bracket Mount | 4.906" (124.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|

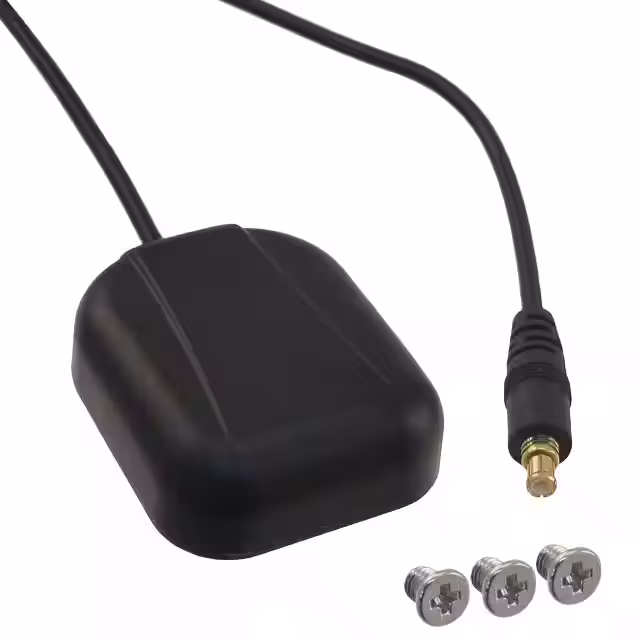

ANT-GPS-SH-MCXRF ANT 1.575GHZ MOD MCX CONN 3M TE Connectivity Linx |
0 |
|
规格书 |
SH | Bulk | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.570GHz ~ 1.580GHz | Module | 1 | 1.5 | - | 5dB | - | LNA | MCX | - | - | - | Magnetic, Chassis Mount | 0.492" (12.50mm) | GPS |
