| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

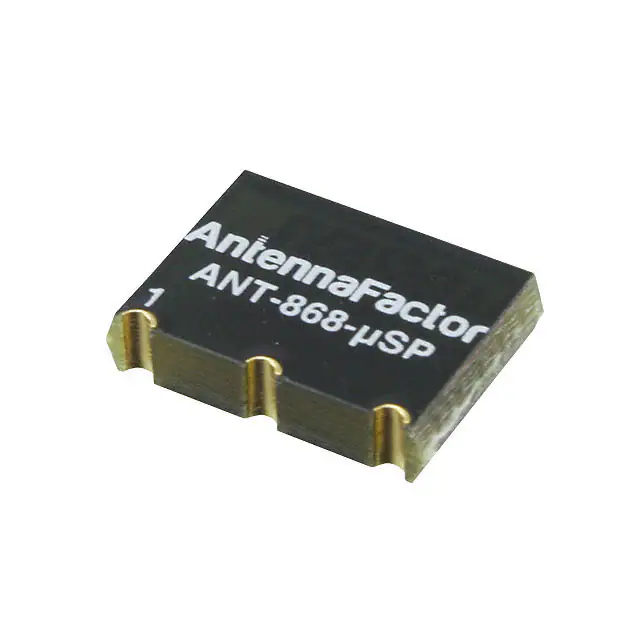

ANT-868-USP-TRF ANT 868MHZ CHIP SOLDER SMD TE Connectivity Linx |
0 |
|
规格书 |
microSplatch™ | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 859MHz ~ 877MHz | Chip | 1 | 1.9 | - | 0.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.100" (2.54mm) | ISM, LoRa, Sensor Networks, SigFox |
|

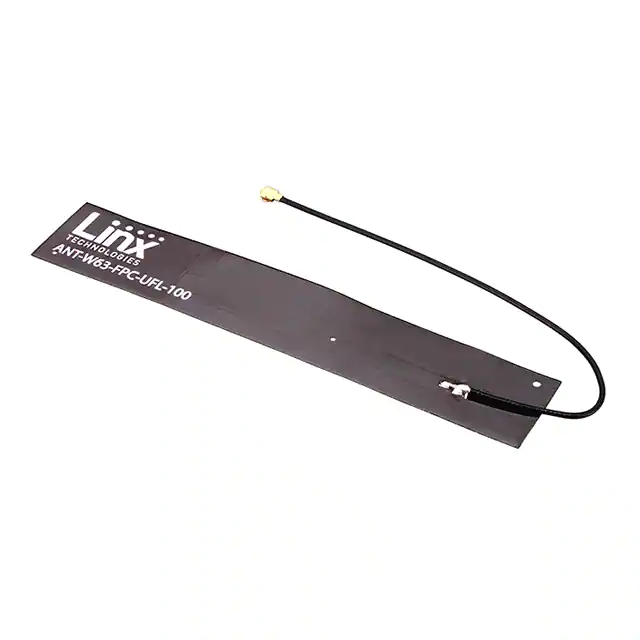

ANT-W63-FPC-UFL-100RF ANT WIFI 6GHZ FLEX ADHES UFL TE Connectivity Linx |
0 |
|
规格书 |
FPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 1.2, 3.3, 2.6 | -20.8dB, -5.4dB, -7dB | 6.1dBi, 6.1dBi, 6.9dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.010" (0.20mm) | 802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
ANT-W63-CW-RCS-SMAWIFI6/6E/7 COMPACT RIGHT ANGLE W TE Connectivity Linx |
10 |
|
规格书 |
CW-RCS | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.44GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Whip, Right Angle | 3 | 2.2, 2.7 | - | 7.7dBi, 5.4dBi, 6dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 2.126" (54.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

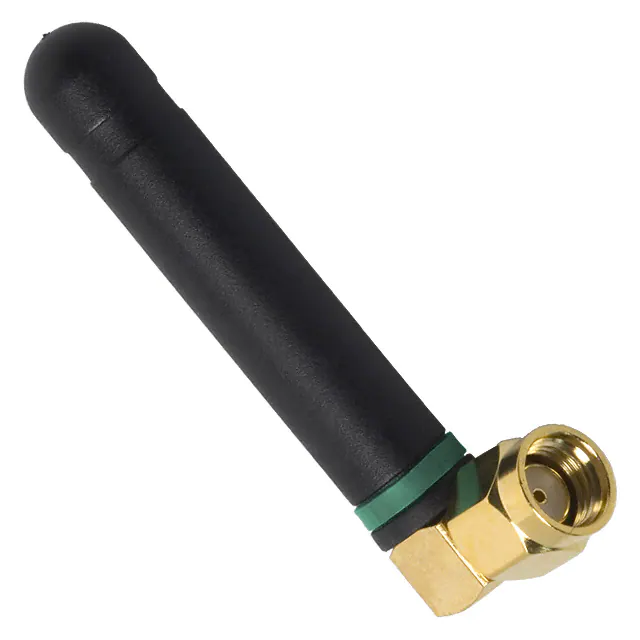

ANT-315-CW-RCSRF ANT 315MHZ WHIP RA RP-SMA MAL TE Connectivity Linx |
6 |
|
规格书 |
RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 315MHz | 310MHz ~ 320MHz | Whip, Right Angle | 1 | 2 | - | - | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | Alarms, ISM, Remote Control, Security Systems |
|

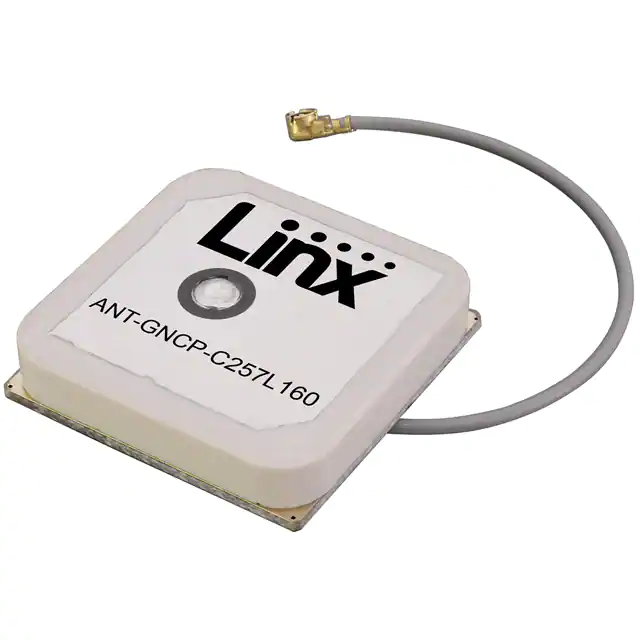

ANT-GNCP-C257L160RF ANT GNSS GPS L1 25X25 LNA UFL TE Connectivity Linx |
0 |
|
规格书 |
GNCP | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 3 | 1.5, 1.7, 2.1 | -13.9dB, -11.5dB, -8.8dB | 25.2dBi, 29.7dBi, 31.4dBi | - | Cable - 60mm | U.FL | - | - | - | Surface Mount | 0.276" (7.00mm) | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
|

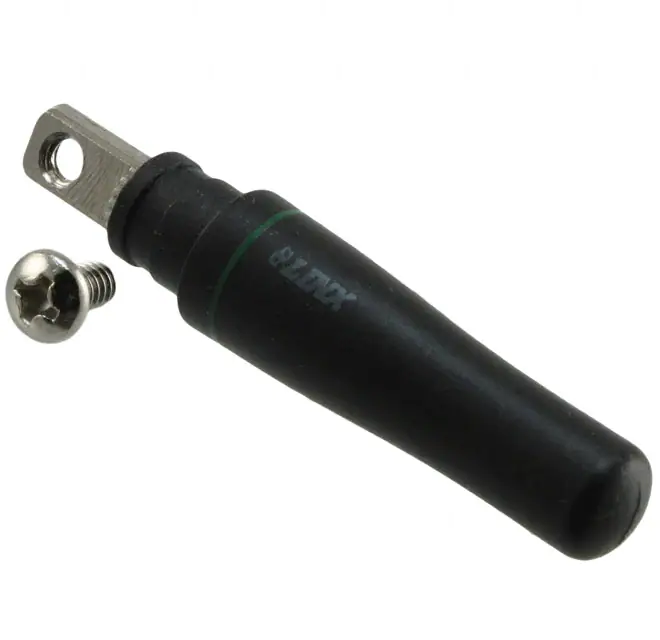

ANT-315-PW-LPRF ANT 315MHZ WHIP STR SCREW-MNT TE Connectivity Linx |
0 |
|
规格书 |
LP | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 315MHz | 312MHz ~ 318MHz | Whip, Straight | 1 | 1.9 | - | -4dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 1.988" (50.50mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-418-CW-HW-SMARF ANT 418MHZ WHIP STR SMA MALE TE Connectivity Linx |
0 |
|
规格书 |
HW | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 403MHz ~ 433MHz | Whip, Straight | 1 | 2 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
L000695-01CERAMIC PATCH ANT, 1561-1602MHZ, TE Connectivity Linx |
0 |
|
- |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.581GHz | 1.561GHz ~ 1.602GHz | Ceramic Patch | 1 | 2.8 | - | 6dBi | - | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | GNSS, GPS |
|
|
L000697-80CERAMIC PATCH WITH EVB, 2400-250 TE Connectivity Linx |
0 |
|
- |
- | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 2.7 | - | 6dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | 802.11a/b/g/n, Bluetooth, WiMax, Zigbee™ |
|
|
L000696-80CERAMIC PATCH WITH EVB, 1561-160 TE Connectivity Linx |
0 |
|
- |
- | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.52GHz | - | Ceramic Patch | 1 | 2.5 | - | 6dBi | - | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | GNSS, GPS |
