射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

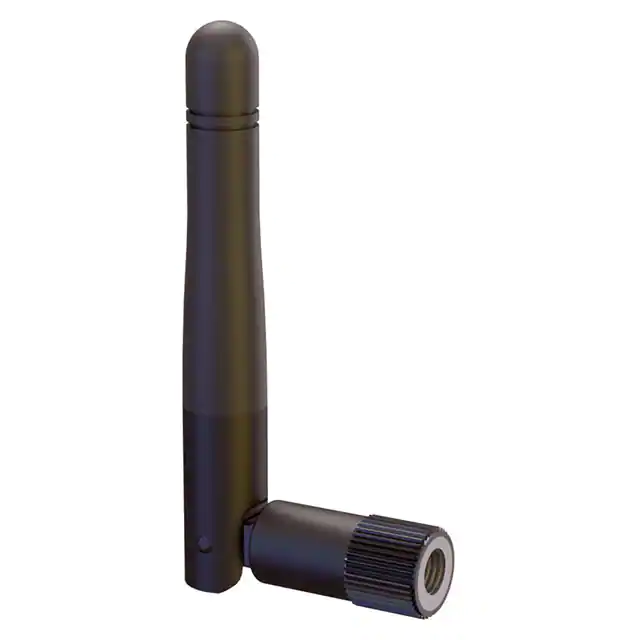

ANT-DB1-LCD-RPS2.4/5.8GHZ DIPOLE ANT RP-SMA TE Connectivity Linx |
520 |
|
规格书 |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz | Whip, Tilt | 3 | 1.9 | - | 2.8dBi, 2.92dBi, 4.5dBi | 10 W | - | RP-SMA Male | - | - | - | Connector Mount | 3.272" (83.10mm) | ISM, U-NII, WiFi, WLAN |
|
|
ANT-DB1-LCD-SMA2.4/5.8GHZ DIPOLE ANTENNA SMA TE Connectivity Linx |
318 |
|
规格书 |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 2.5GHz, 5GHz, 5.7GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.12GHz ~ 5.72GHz, 5.72GHz ~ 5.88GHz | Whip, Tilt | 3 | 1.9 | - | 2.8dBi, 2.92dBi, 4.5dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 3.272" (83.10mm) | ISM, U-NII, WiFi, WLAN |
|

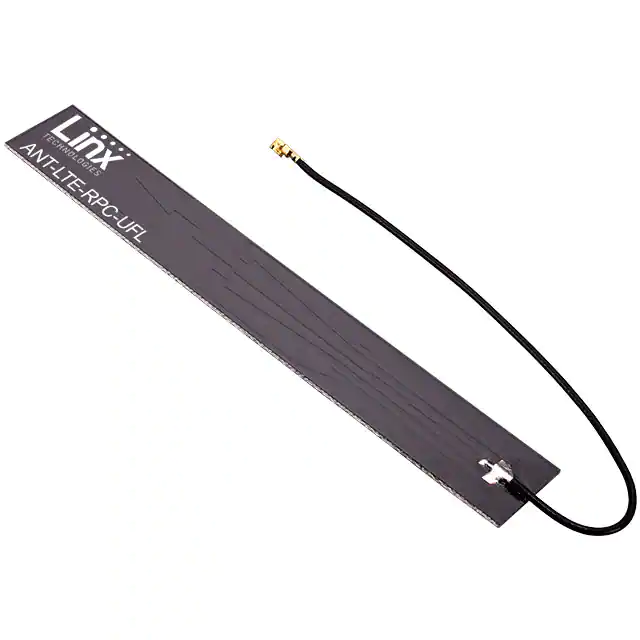

ANT-LTE-RPC-UFLRF ANT LTE RIGID PCB ADHES UFL TE Connectivity Linx |
1,371 |
|
规格书 |
RPC | Bag | Active | Cellular, Navigation | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 3.3GHz, 3.4GHz, 3.5GHz, 3.6GHz | 600MHz ~ 3.8GHz | PCB Trace | 7 | 2.5, 1.8, 2.4, 1.8, 1.4, 2.1, 4.1 | -7.4dB, -10.9dB, -7.7dB, -10.9dB, -15.6dB, -9.0dB, -4.3dB | 3.6dBi, 4.9dBi, 6.3dBi, 5.1dBi, 5.0dBi, 4.6dBi, 3.1dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | 2G, 3G, 4G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, LTE, LTE-M, NB-Iot, UMTS |
|

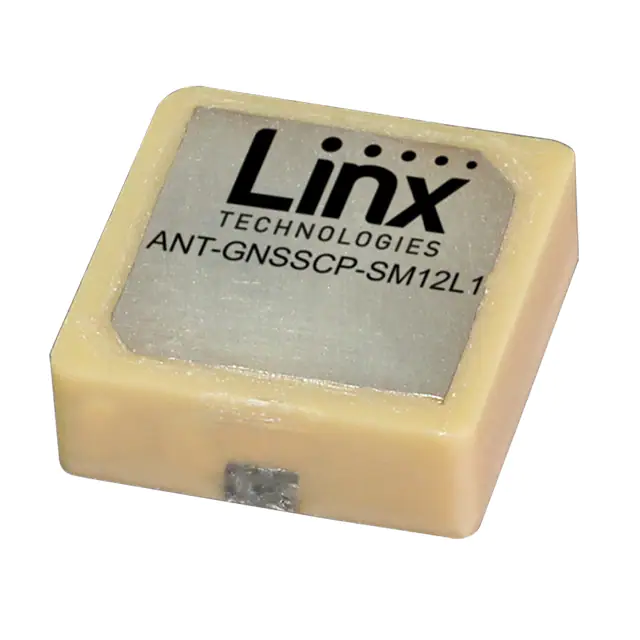

ANT-GNSSCP-SM12L1RF ANT GNSS PATCH L1 12X12 SMD TE Connectivity Linx |
743 |
|
规格书 |
GNSSCP | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.567GHz ~ 1.609GHz | Ceramic Patch | 2 | 7, 6.1 | -2.5dB, -2.9dB | 2.9dBi, 1dBi | 8 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

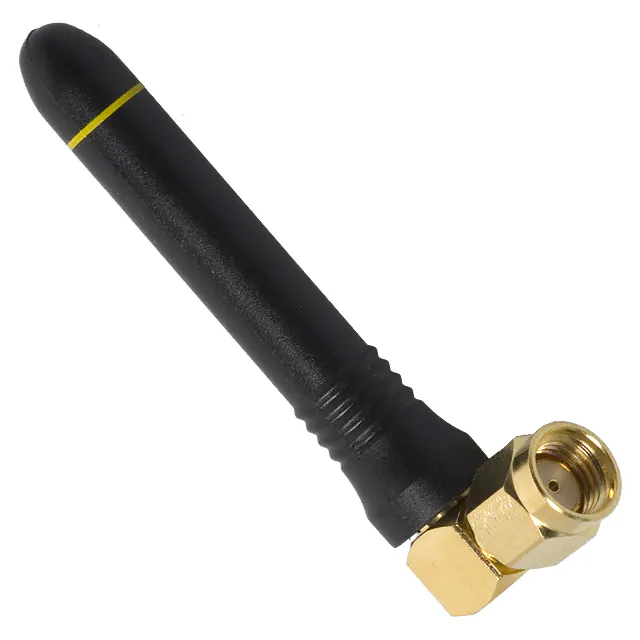

ANT-916-CW-RCSRF ANT 916MHZ WHIP RA RP-SMA MAL TE Connectivity Linx |
531 |
|
规格书 |
RCS | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 886MHz ~ 946MHz | Whip, Right Angle | 1 | 1.9 | - | 3.3dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 2.106" (53.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|

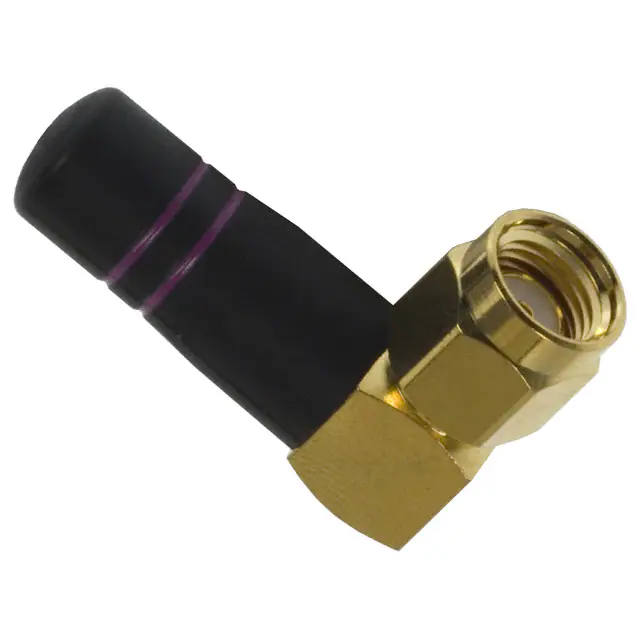

ANT-2.4-CW-RAH-RPSRF ANT 2.4GHZ WHIP RA RP-SMA MAL TE Connectivity Linx |
2,513 |
|
规格书 |
RAH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Right Angle | 1 | 2 | - | 1.6dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.008" (25.60mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
ANT-2.4-CW-RH-RPSRF ANT 2.4GHZ WHIP STR RP-SMA ML TE Connectivity Linx |
328 |
|
规格书 |
RH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.49GHz | Whip, Straight | 1 | 2 | - | -0.9dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

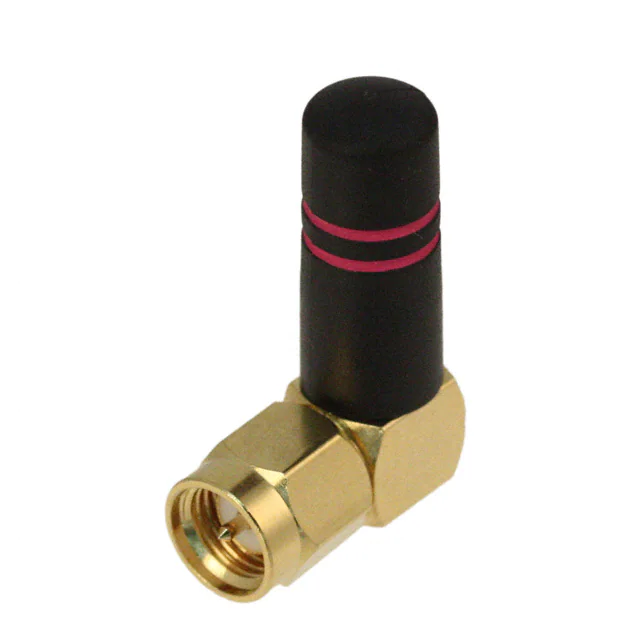

ANT-2.4-CW-RAH-SMARF ANT 2.4GHZ WHIP RA SMA MALE TE Connectivity Linx |
1,106 |
|
规格书 |
RAH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Right Angle | 1 | 2 | - | 1.6dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.008" (25.60mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

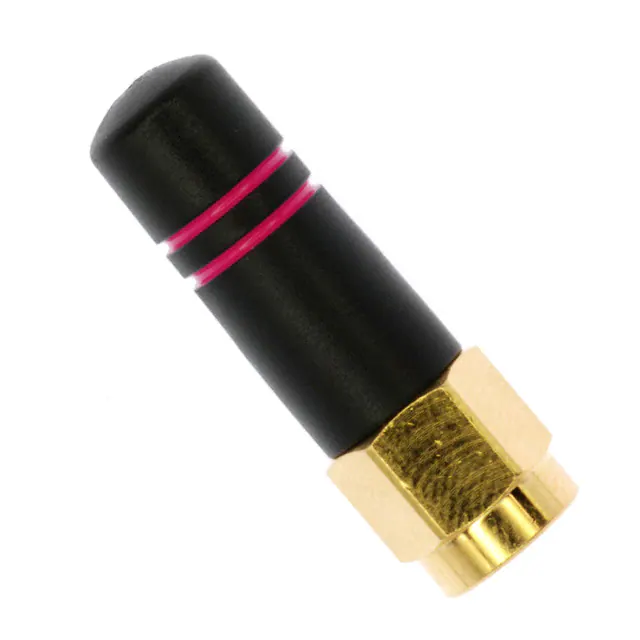

ANT-2.4-CW-RH-SMARF ANT 2.4GHZ WHIP STR SMA MALE TE Connectivity Linx |
247 |
|
规格书 |
RH | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.39GHz ~ 2.49GHz | Whip, Straight | 1 | 2 | - | -0.9dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.063" (27.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

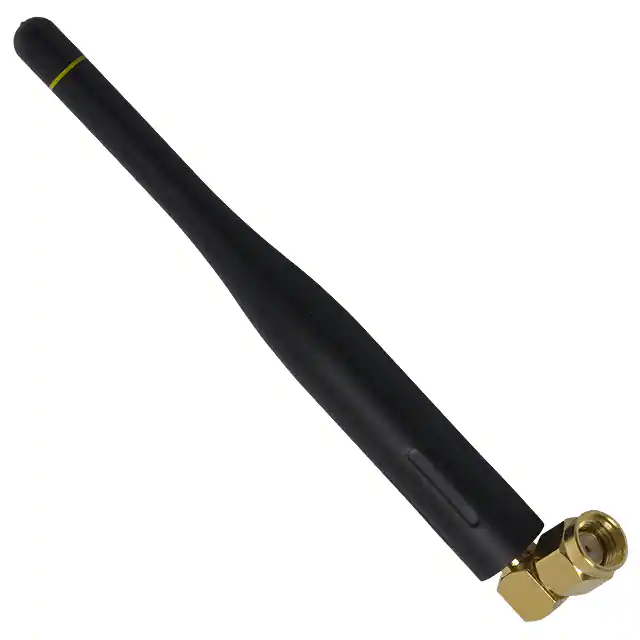

ANT-916-CW-RCLRF ANT 916MHZ WHIP RA RP-SMA MAL TE Connectivity Linx |
213 |
|
规格书 |
RCL | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 840MHz ~ 990MHz | Whip, Right Angle | 1 | 1.7 | - | -2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.465" (88.00mm) | ISM, LoRa, Sensor Networks, SigFox |
