射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-418-CW-HWRF ANT 418MHZ WHIP STR RP-SMA ML TE Connectivity Linx |
400 |
|
规格书 |
HW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 403MHz ~ 433MHz | Whip, Straight | 1 | 2 | - | 0dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 4.724" (120.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

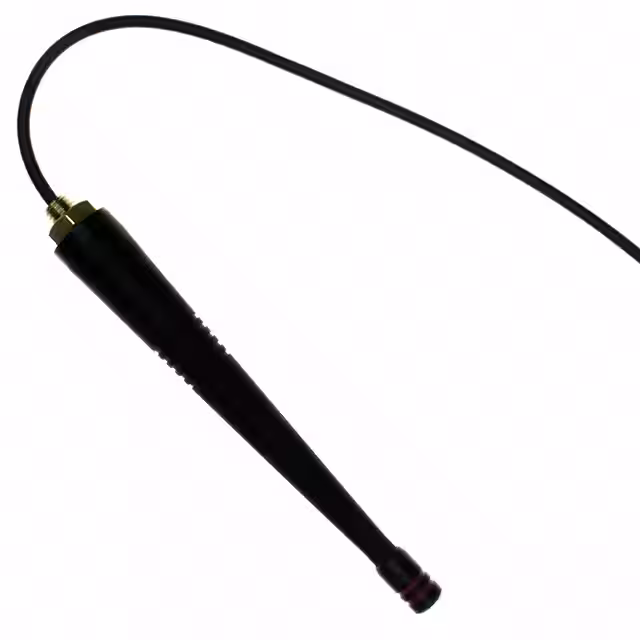

ANT-2.4-PW-QWRF ANT 2.4GHZ WHIP STR CAB PAN TE Connectivity Linx |
148 |
|
规格书 |
PW | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 216mm | Solder | - | - | - | Panel Mount | 4.134" (105.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|

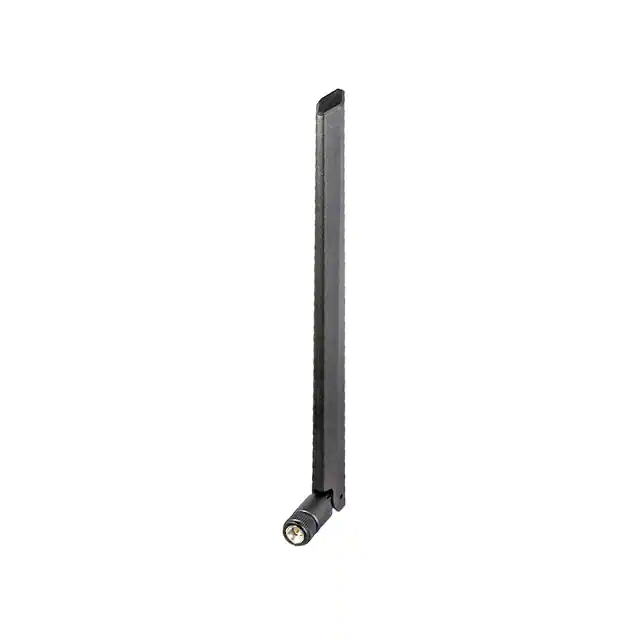

ANT-5GMWS1-SMARF ANT 3.3GHZ-5.0GHZ 5G TILT SMA TE Connectivity Linx |
813 |
|
规格书 |
SMA | Bulk | Active | Cellular, Navigation | Wide Band | 3.625GHz, 3.95GHz, 4.965GHz | 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz | Whip, Tilt | 3 | 1.3, 3.3, 3.4 | - | 5.9dBi, 5.4dBi, 2.3dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 7.677" (195.00mm) | 5G, GPRS, LTE |
|

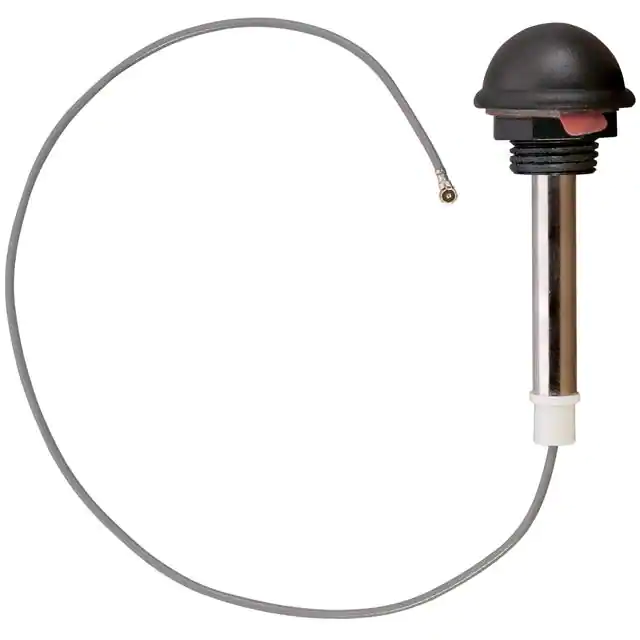

ANT-DB1-WRT-MHF4-100RF ANT 2.4/5GHZ WRT MHF4 -100 TE Connectivity Linx |
483 |
|
规格书 |
WRT | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.9, 3.7, 4 | - | 3.2dBi, 6.8dBi, 7dBi | 5 W | Cable - 100mm | MHF4 | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
ANT-916-MHW-RPS-LRF ANT 916MHZ WHIP CTR CAB 180" TE Connectivity Linx |
779 |
|
规格书 |
MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 916MHz | 816MHz ~ 1.016GHz | Whip, Center-Fed Double | 1 | 1.9 | - | 5.4dBi | - | Cable - 4.6m | RP-SMA Male | - | - | - | Adhesive | 5.433" (138.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-W63-WRT-MHF4RF ANT 2.4/5/6GHZ DOME PNL MT MH TE Connectivity Linx |
985 |
|
规格书 |
WRT | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.5, 1.4, 2.2 | -14dB, -15.6dB, -8.5dB | 4.5dBi, 4.5dBi, 6.4dBi | 5 W | Cable - 131mm | MHF4 | IP67 | - | - | Panel Mount | 1.094" (27.79mm) | 802.11, 802.15.4, Bluetooth, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|

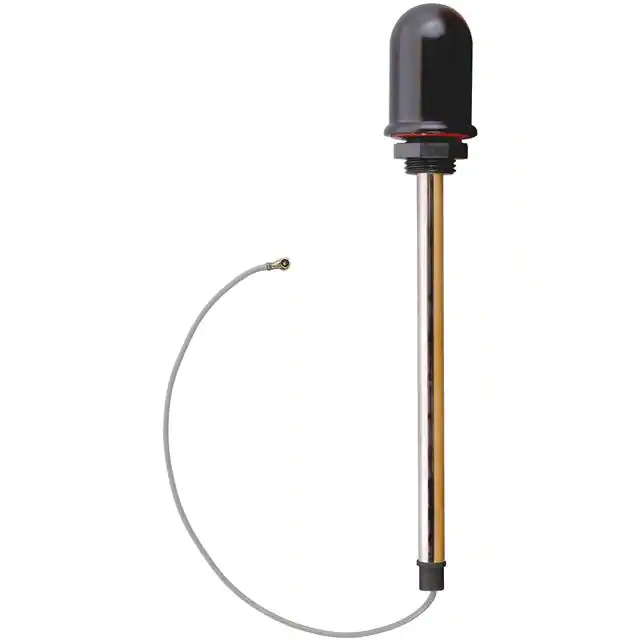

ANT-W63-WRT-MHF4-150RF ANT WIFI6/6E WRT MHF4 -150 TE Connectivity Linx |
495 |
|
规格书 |
WRT | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.4, 1.5, 2.2 | - | 4.5dBi, 4.5dBi, 6.4dBi | 5 W | Cable - 150mm | MHF4 | - | - | - | Panel Mount | 1.063" (27.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
L000558-01FPC ANT, HDP, 50MM, MHF, LPWAN 8 TE Connectivity Linx |
2,000 |
|
规格书 |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Flat Patch | 1 | 2 | - | 1.1dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000550-01FPC ANT, HDP, 50MM, MHF, LPWAN 9 TE Connectivity Linx |
2,000 |
|
规格书 |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 2 | - | 1.5dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
|
|
L000549-01FPC ANT, VDP, 50MM, MHF, LPWAN 9 TE Connectivity Linx |
2,000 |
|
规格书 |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Flat Patch | 1 | 2 | - | 3.34dBi | 10 W | Cable - 50mm | MHF | - | - | - | Adhesive | 0.079" (2.00mm) | ISM, LoRaWAN |
