射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-2.4-ID-2000-SMARF ANT 2.4GHZ WHIP STR BRKT 2M TE Connectivity Linx |
190 |
|
规格书 |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.35GHz ~ 2.6GHz | Whip, Straight | 1 | 1.9 | - | 3dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Bracket Mount | 4.110" (104.40mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
|
ANT-916-ID-2000-SMARF ANT 916MHZ WHIP STR BRKT 2M TE Connectivity Linx |
145 |
|
规格书 |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 895MHz ~ 945MHz | Whip, Straight | 1 | 1.9 | - | 1.6dBi | - | Cable - 2m | SMA Male | IP67 | - | - | Bracket Mount | 4.906" (124.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|

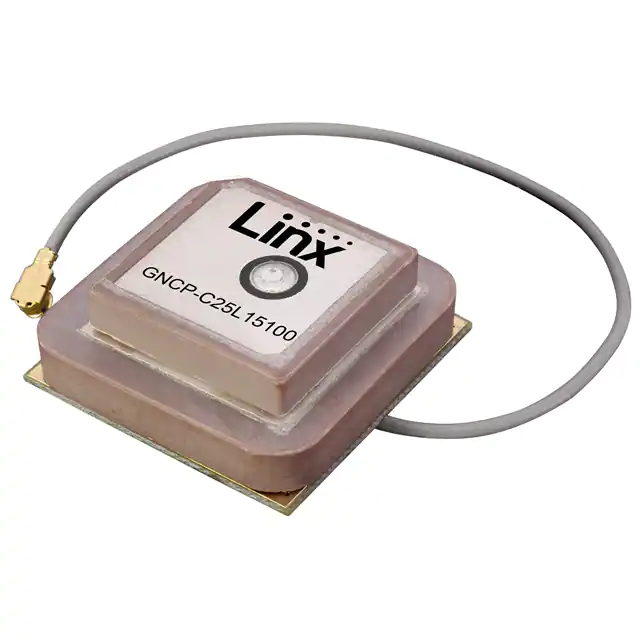

ANT-GNCP-C25L15100RF ANT GNSS GPS L1L5 25X25 LNA TE Connectivity Linx |
159 |
|
规格书 |
GNCP | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.164GHz ~ 1.189GHz, 1.559GHz ~ 1.606GHz | Ceramic Patch | 4 | 1.8, 1.3, 1.3, 1.2 | -11.2dB, -18.1dB, -18.1dB, -20.7dB | 26.8dBi, 25.3dBi, 26.6dBi, 24.4dBi | - | Cable - 100mm | U.FL | - | - | - | Surface Mount | 0.472" (12.00mm) | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
|

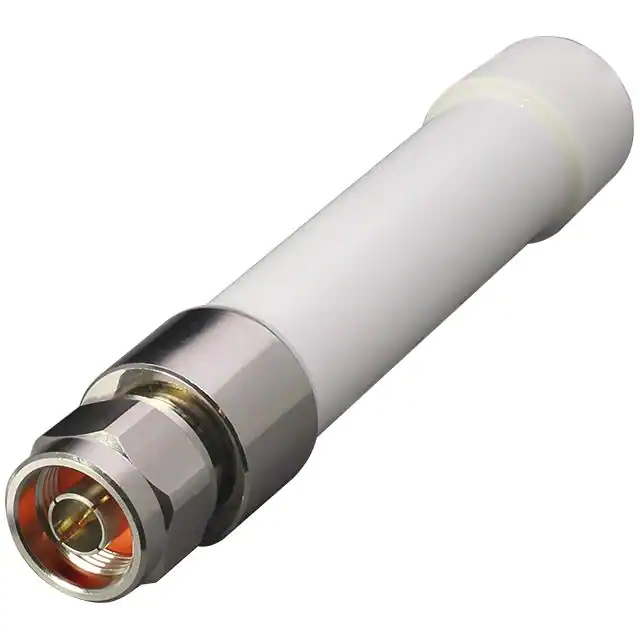

ANT-5GW-IPW2-NPRF ANT 5G/4G/LTE WHIP N PLUG TE Connectivity Linx |
215 |
|
规格书 |
IPW | Bag | Active | Cellular | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Whip, Straight | 10 | 8.1, 8.5, 3.9, 2.4, 1.8, 1.7, 1.9, 1.6, 1.8, 2.7 | -2.2dB, -2.1dB, -4.6dB, -7.7dB, -10.9dB, -11.7dB, -10.2dB, -12.7dB, -10.9dB, -6.8dB | 1dBi, 1.5dBi, 1.6dBi, 1.2dBi, 1.6dBi, 1.5dBi, 0.5dBi, 2.4dBi, 2.4dBi, 3.7dBi | 2 W | - | N Type Male | IP67 | - | - | Connector Mount | 5.200" (132.00mm) | 5G, LTE, LTE-M (Cat-M1), NB-IoT |
|

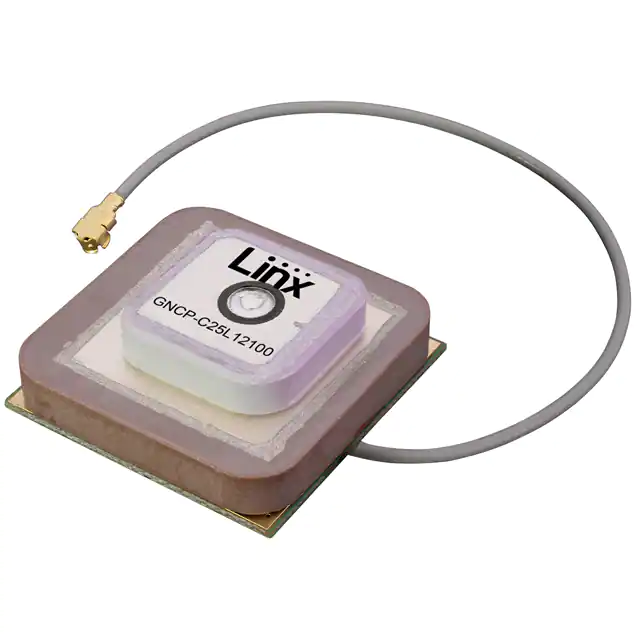

ANT-GNCP-C25L12100RF ANT GNSS GPS L1L2 25X25 LNA TE Connectivity Linx |
134 |
|
规格书 |
GNCP | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.202GHz, 1.227GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.197GHz ~ 1.25GHz, 1.559GHz ~ 1.606GHz | Ceramic Patch | 6 | 2.2, 2.3, 1.4, 1.6, 1.6, 1.4 | -8.4dB, -8dB, -15.1dB, -12.7dB, -12.7dB, -15.4 | 27.9dBi, 28.1dBi, 15.9dBi, 25.9dBi, 27.6dBi, 23.8dBi | - | Cable - 100mm | U.FL | - | - | - | Surface Mount | 0.472" (12.00mm) | Beidou, COMPASS, GALILEO, GLONASS, GPS, IRNSS, NavIC, Qzss |
|
ANT-GNRM-L12A-3ANTENNA, REMOTE ACTIVE CERAMIC P TE Connectivity Linx |
51 |
|
规格书 |
GNRM | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.202GHz, 1.207GHz, 1.228GHz, 1.246GHz, 1.248GHz, 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Module | 9 | 1.1, 1.2, 1.5, 1.6, 1.7 | -11.6dB, -13.3dB, -14.4dB, -19.2dB, -25dB | 25dBi, 25dBi, 27.4dBi, 23.4dBi, 23.4dBi, 28.4dBi, 32.4dBi, 32.2dBi, 32.2dBi | - | Cable - 3m, LNA | SMA Male | - | - | - | Magnetic | 0.642" (16.30mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

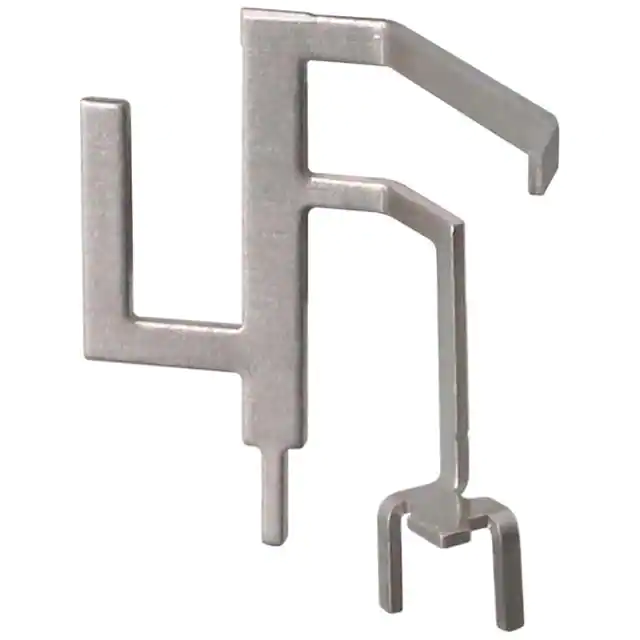

ANT-W63-MSA-TH1ANT WIFI6 2.4/5/6GHZ STAMPD TH TE Connectivity Linx |
6,154 |
|
规格书 |
- | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz, 6.5375GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Stamped Metal | 3 | 1.9, 2.9, 3.2 | - | 3.5dBi, 3.8dBi, 3.8dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.728" (18.50mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
ANT-418-HESMRF ANT 418MHZ HELICAL SOLDER SMD TE Connectivity Linx |
14,584 |
|
规格书 |
HE | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 393MHz ~ 443MHz | Helical | 1 | 2 | - | 1.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.350" (8.89mm) | Alarms, ISM, Remote Control, Security Systems |
|

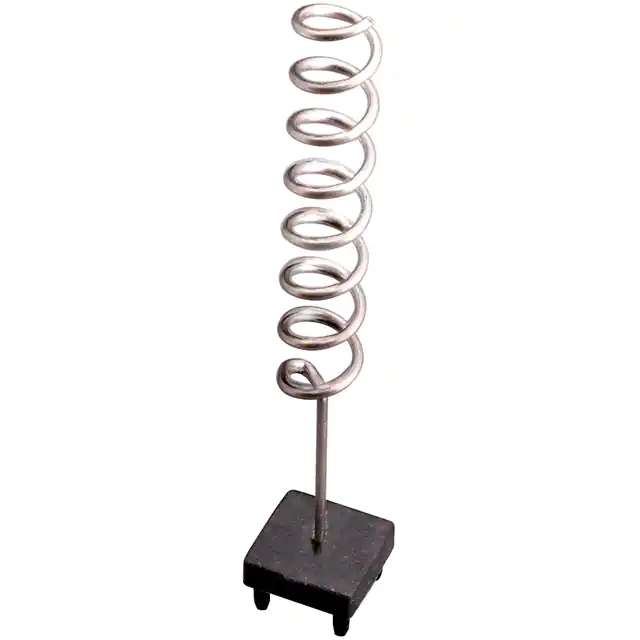

ANT-868-VHETHRF ANT 868MHZ MON HELICAL SLD TH TE Connectivity Linx |
520 |
|
规格书 |
VHETH | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Helical | 1 | 2.7 | -6.8dB | -0.7dBi | 15 W | - | Solder | - | - | - | Through Hole | 0.280" (7.00mm) | ISM, LoRaWAN |
|

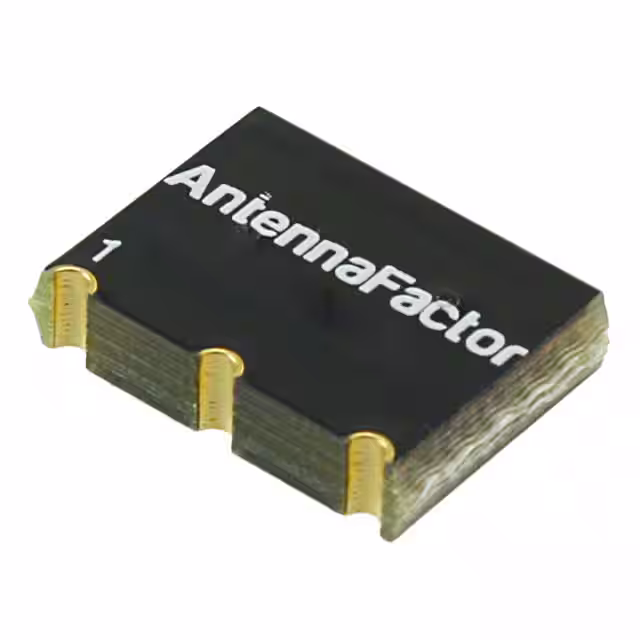

ANT-403-USP-TRF ANT 403MHZ CHIP SOLDER SMD TE Connectivity Linx |
12,654 |
|
规格书 |
microSplatch™ | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 403MHz | 400MHz ~ 406MHz | Chip | 1 | 2 | - | -8.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.103" (2.62mm) | MICS |
