射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

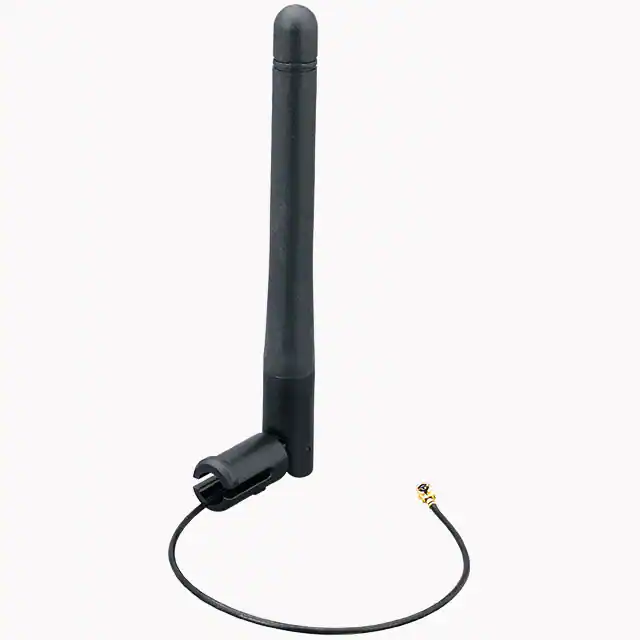

ANT-DB1-LPD-125RF ANT 2.4&5GHZ WHP PNL HING UFL TE Connectivity Linx |
765 |
|
规格书 |
LPD | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 1.5 | -14.7dB, -14.2dB | 2.8dB, 4.5dB | 10 W | Cable - 125mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 4.134" (105.00mm) | ISM, U-NII, WiFi, WLAN |
|
ANT-2.4-FPC-LH100M4ANT 2.4 FPC 45X7 100 CBL MHF4 TE Connectivity Linx |
1,873 |
|
规格书 |
ANT-2.4-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.4 | - | 6.1dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

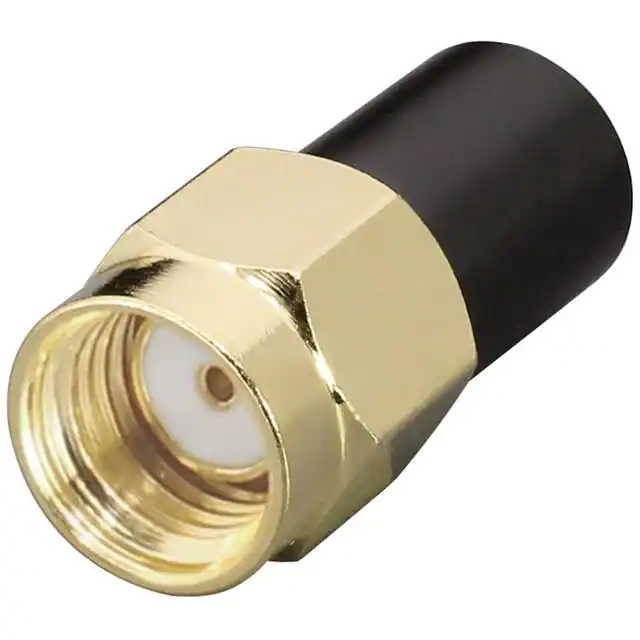

ANT-915-NUB-RPSRF ANT 915MHZ SHORT WHIP RP-SMA TE Connectivity Linx |
131 |
|
规格书 |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 930MHz | Whip, Straight | 1 | 2.6 | - | 3.9dBi | 25 W | - | RP-SMA Female | - | - | - | Connector Mount | 0.697" (17.70mm) | ISM, LoRaWAN, LPWA |
|

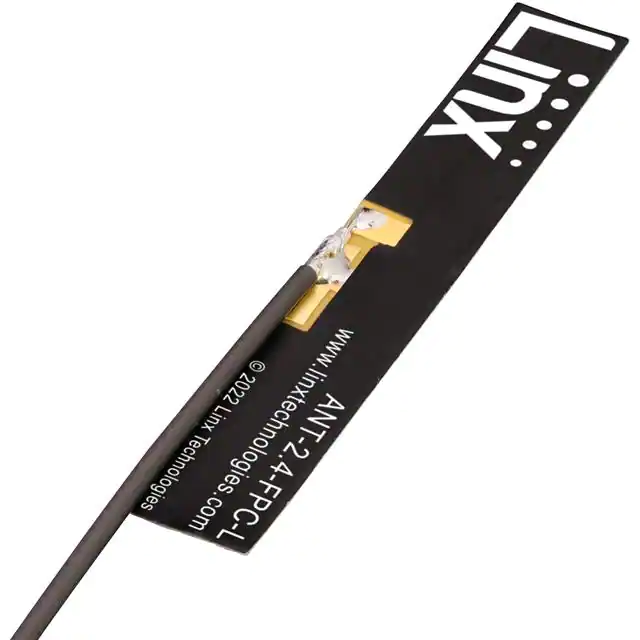

ANT-2.4-FPC-LV100MXANT 2.4 FPC 45X7 100 CBL MMCX TE Connectivity Linx |
125 |
|
规格书 |
ANT-2.4-FPC-LV | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.7 | - | 4.3dBi | 2 W | Cable - 100mm | MMCX | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

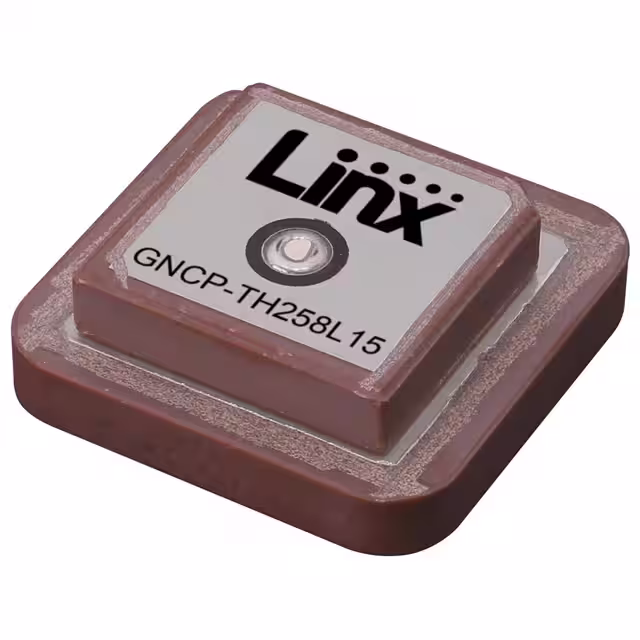

ANT-GNCP-TH258L15RF ANT GNSS PATCH L1 L5 25MM PIN TE Connectivity Linx |
250 |
|
规格书 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.5808GHz | 1.17GHz ~ 1.183GHz, 1.5531GHz ~ 1.6086GHz | Ceramic Patch | 2 | 5.9, 6.4 | - | 1dBi, 5.6dBi | - | - | Pin | - | - | - | Adhesive | 0.315" (8.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

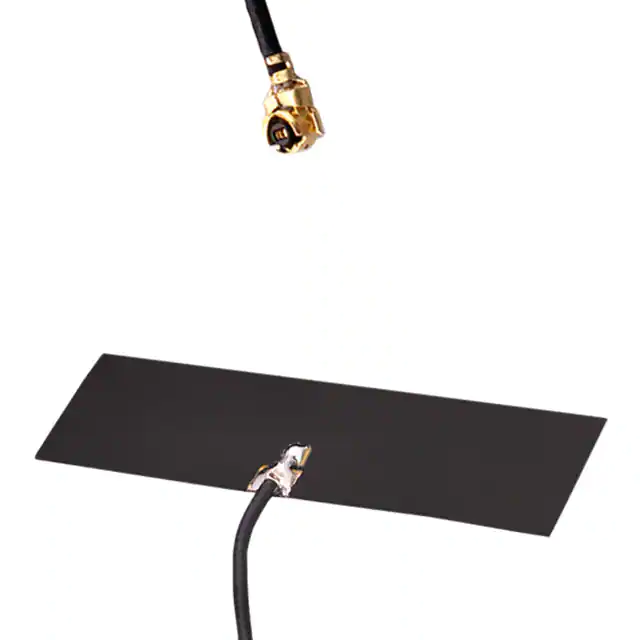

ANT-W63-FPC2-UFL-100RF ANT WIFI 6GHZ FLEX ADHES UFL TE Connectivity Linx |
1,667 |
|
规格书 |
FPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 3 | 2.4, 1.4, 2.4 | -7.7dB, -15.6dB, -7.7dB | 3.2dBi, 7.7dBi, 8.4dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 802.11ax, 802.15.4, Bluetooth, Wi-Fi, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E |
|
ANT-GNFPC-SHL1100UFRF ANT GNSS FPC L1 100MM UFL TE Connectivity Linx |
901 |
|
规格书 |
ANT-GNFPC-SHL1 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.601GHz, 1.602GHz | - | Flat Patch | 4 | 1.6, 1.9 | - | 3.2dBi, 3.2dBi, 2.6dBi, 2.6dBi | 2 W | Cable - 100mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

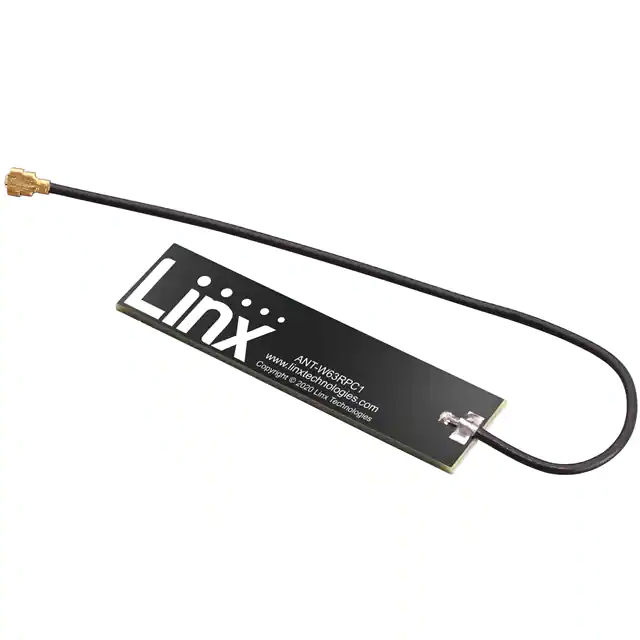

ANT-W63RPC1-UFL-100RF ANT WIFI 6GHZ FLEX UFL 100MM TE Connectivity Linx |
692 |
|
规格书 |
W63RPC | Bag | Active | WiFi | Wide Band | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Rigid Patch | 3 | 1.8, 2.1, 1.6 | -10.9dB, -9dB, -12.7dB | 3.7dBi, 6.1dBi, 5.9dBi | 5 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.051" (1.30mm) | 802.11, 802.15.4, Bluetooth, U-NII, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|

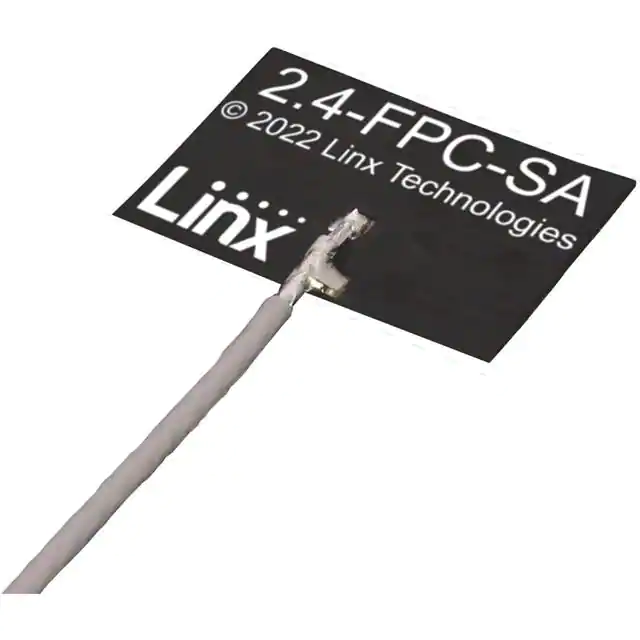

ANT-2.4-FPC-SAH50UFANT 2.4 FPC 12X8 50MM CBL UFL TE Connectivity Linx |
880 |
|
规格书 |
ANT-2.4-FPC-SAH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 4.1 | - | 0.1dBi | 2 W | Cable - 50mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

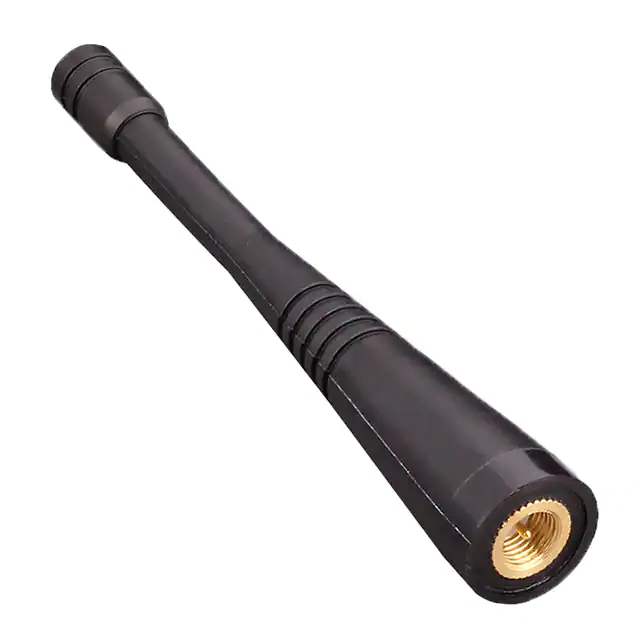

ANT-B20-CW-QW-SMARF ANT LTE B20 WHIP STR SMA PLUG TE Connectivity Linx |
238 |
|
规格书 |
CW | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 800MHz, 850MHz, | 790MHz ~ 870MHz | Whip, Straight | 1 | 2.1 | - | 1.6dBi | 10 W | O-Ring Compatible | SMA Male | - | - | - | Connector Mount | 3.531" (89.70mm) | LTE, NB-IoT, UMTS |
