上传BOM
射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

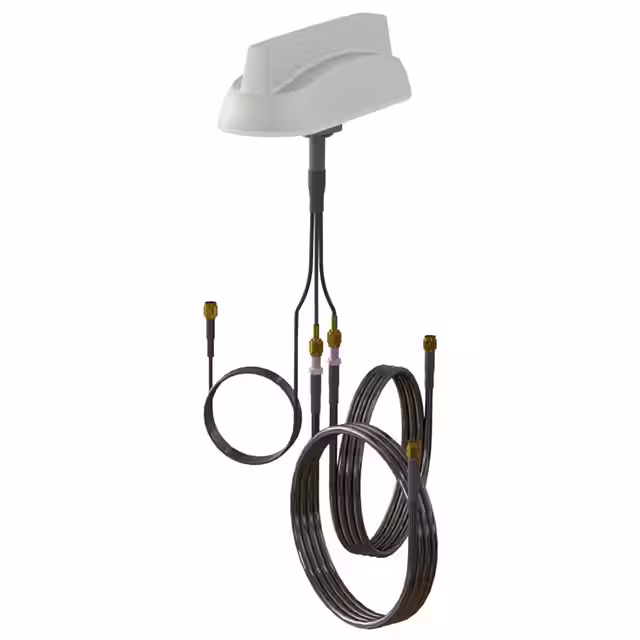

VFT69383W11JN-518LANT LOW PROFILE 3-PORT SHARKFIN TE Connectivity Laird |
3 |
|
规格书 |
- | Bulk | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.745GHz, 2.45GHz, 5.45GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 3.8GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Dome | 9 | 2 | - | -0.3dBi, 0.6dBi, 1.6dBi, 3.4dBi, 4.5dBi, 5.6dBi, 4.3dBi, 3.4dBi, 4.6dBi | 10 W | Cable - 5.18m, LNA | SMA Male (2), RP-SMA | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE, Wi-Fi |
|

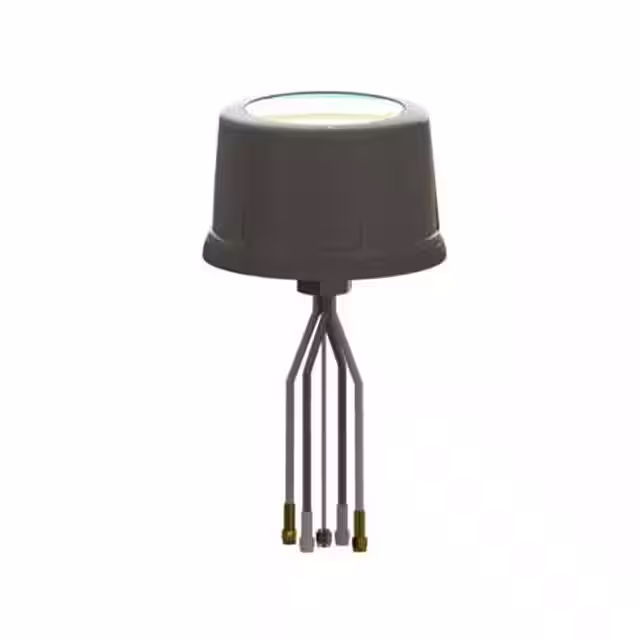

VHP69273B22J-518AANT 5-PORT 4G-WIFI-GNSS, BK,GNSS TE Connectivity Laird |
8 |
|
规格书 |
- | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.205GHz, 2.5GHz, 5.4GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 2.7GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Dome | 7 | 2 | - | 4.1dBi, 28dB, 5.9dBi, 6.2dBi, 6.5dBi | 50 W | Cable - 5.18m | RP-SMA Male, SMA Male (2) | IP67 | - | - | Panel Mount | 3.425" (87.00mm) | Beidou, GLONASS, GPS, LTE, Wi-Fi |
|
PSQ24495-91NFRF ANT 2.4GHZ/5.4GHZ FLAT PNL N TE Connectivity Laird |
3 |
|
规格书 |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Panel | 2 | 2 | - | 7.7dB | 10 W | - | N Type Female | IP67 | - | - | Bracket Mount | 1.575" (40.00mm) | WiBro |
|
PSQ24495-91NMRF ANT 2.4GHZ/5.4GHZ FLAT PNL TE Connectivity Laird |
2 |
|
规格书 |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Panel | 2 | 2 | - | 7.7dB | 10 W | - | N Type Male | IP67 | - | - | Bracket Mount | 1.575" (40.00mm) | WiBro |
|

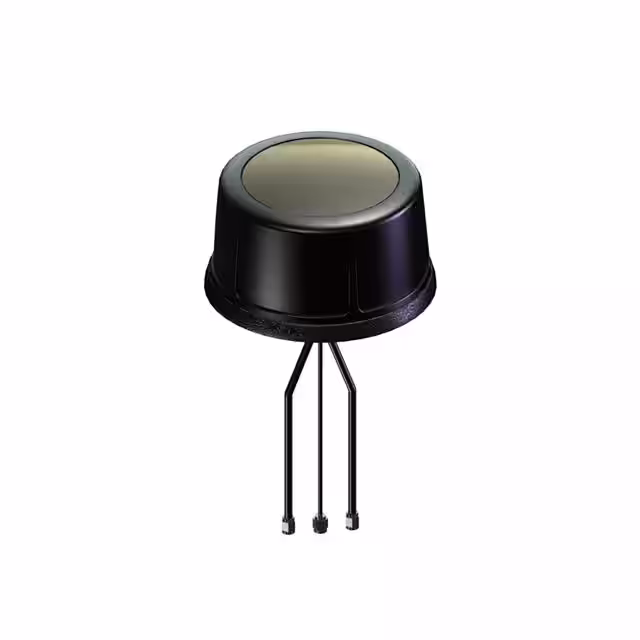

VLT69273B2NJ-518AANT 3-PORT 2X-4G, 1X-GNSS, BK TE Connectivity Laird |
3 |
|
规格书 |
- | Bulk | Active | Cellular, Navigation | Wide Band | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.04GHz, 2.4GHz, 2.6GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7 | Dome | 11 | 2 | - | 3.3dBi, 2.3dBi, 2.7dBi, 28dB, 4.6dBi, 4.8dBi, 5dBi, 4.9dBi, 5.7dBi | 50 W | Cable - 5.18m | SMA Male (2) | IP67 | - | - | Panel Mount | 2.953" (75.00mm) | Beidou, GLONASS, GPS, LTE |
|

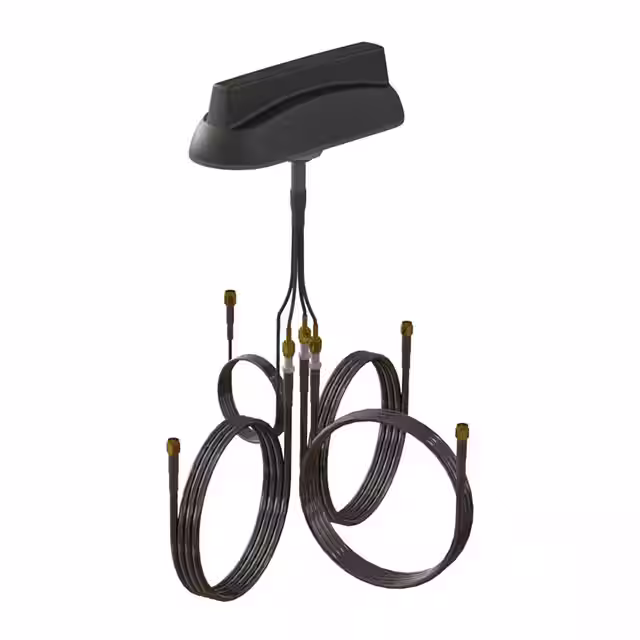

VFQ69383B21JN-518LANT LOW PROFILE 4-PORT SHARKFIN TE Connectivity Laird |
3 |
|
规格书 |
- | Bulk | Active | Cellular, General ISM, Navigation, WiFi | Wide Band | 752MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.745GHz, 2.45GHz, 5.45GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.69GHz ~ 3.8GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Dome | 9 | 2 | - | 0.2dBi, 0.6dBi, 1.1dBi, 3.3dBi, 4.6dBi, 4.8dBi, 3.8dBi, 2.4dBi, 6.4dBi | 10 W | Cable - 5.18m, LNA | SMA Male (2), RP-SMA | IP67 | - | - | Panel Mount | 1.890" (48.00mm) | 3G, 4G, 5G, Beidou, GLONASS, GNSS, GPS, ISM, LTE, Wi-Fi |
|

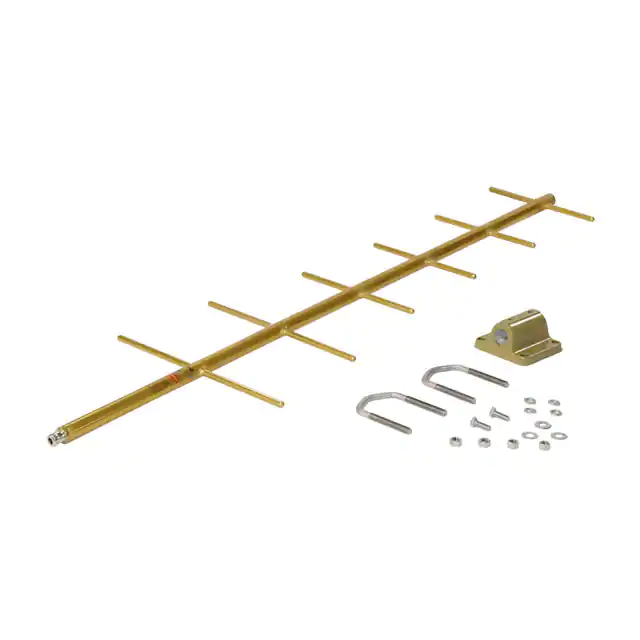

Y4706RF ANT 480MHZ YAGI N FEM BRKT MT TE Connectivity Laird |
2 |
|
规格书 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 480MHz | 470MHz ~ 490MHz | Yagi, 6-Element | 1 | 1.5 | - | 10.2dBd | - | - | N Type Female | - | - | - | Bracket Mount | 44.000" (111.76cm) | - |
|

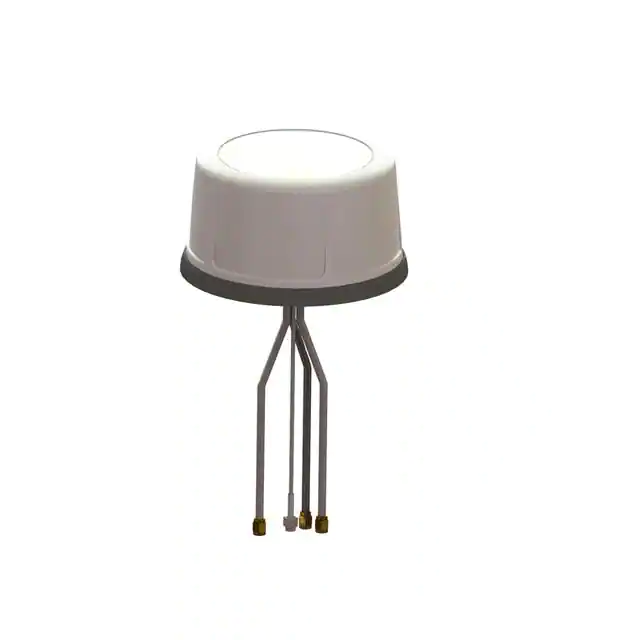

VLQ69273W22N-518ARF ANT 829MHZ/2.2GHZ DOME RP-SMA TE Connectivity Laird |
6 |
|
规格书 |
- | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 2.2GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Dome | 3 | 2 | - | 4.5dBi | 50 W | - | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 2.953" (75.00mm) | LTE, WLAN |
|
PAS69278P-30D43FRF ANT 829MHZ/2.2GHZ PANEL BRKT TE Connectivity Laird |
3 |
|
规格书 |
- | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Panel | 2 | 2, 1.8 | - | 10dBi | 50 W | - | - | - | - | - | Bracket Mount | 3.228" (82.00mm) | LTE, Wi-Fi |
|
L000410-04MONOPOLE WHIP,UHF,740-960MHZ TE Connectivity Laird |
23 |
|
规格书 |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 850MHz | 740MHz ~ 960MHz | Whip, Straight | 1 | 2.3 | - | 4.28dBi | 35 W | Cable - 5m | - | IP67 | - | - | Connector Mount | 2.520" (64.00mm) | General Purpose |
