| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

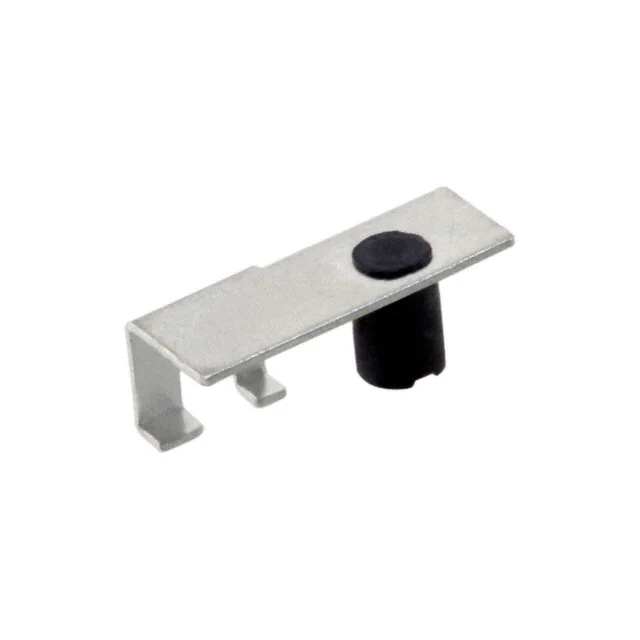

2118316-1RF ANT 5GHZ STAMPED MET SLDR SMD TE Connectivity AMP Connectors |
9,879 |
|
规格书 |
- | Tape & Reel (TR) | Active | WiFi | SHF (f > 4GHz) | 5GHz | - | Stamped Metal | 1 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.171" (4.35mm) | WLAN |
|
2108857-7PCB ANT, MHF4, 150MM WI-FI 6E TR TE Connectivity AMP Connectors |
0 |
|
规格书 |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 150mm | MHF4 | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|
|
2108857-3PCB ANT, MHF, 150MM, WI-FI 6E TR TE Connectivity AMP Connectors |
0 |
|
规格书 |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 150mm | MHF | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|
|
2108891-1PCB ANT, TAB MOUNT, WI-FI 6E TRI TE Connectivity AMP Connectors |
4,706 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | - | - | - | - | - | Through Hole | 0.394" (10.00mm) | 802.11a/b/g/-c/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

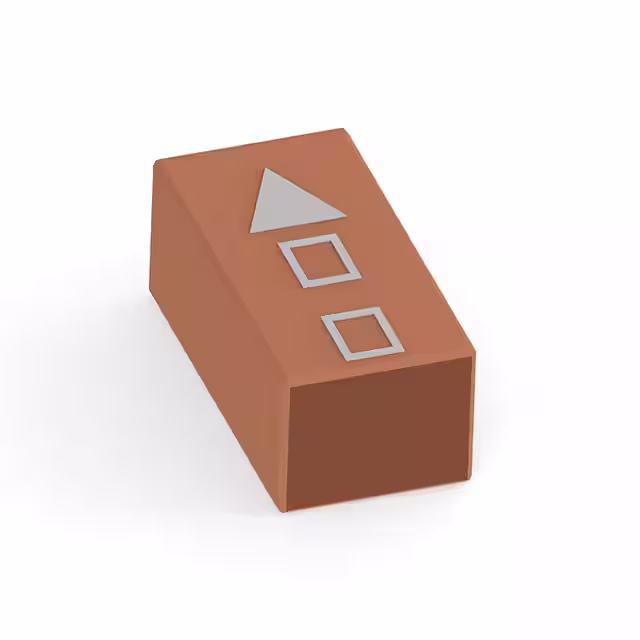

2108832-1CHIP ANT., SMD, BT/WI-FI 2.4GHZ TE Connectivity AMP Connectors |
3,481 |
|
规格书 |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2.8 | - | 1.8dBi | - | - | - | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

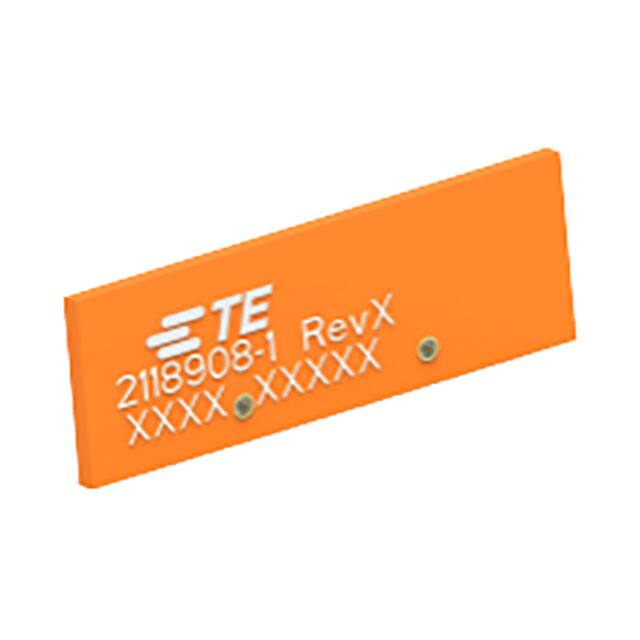

2118908-2PCB,WLAN TRIPLE BAND TAPE & REEL TE Connectivity AMP Connectors |
1,857 |
|
规格书 |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 2.3dBi, 2.8dBi | - | - | - | - | - | - | Surface Mount | 0.030" (0.76mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

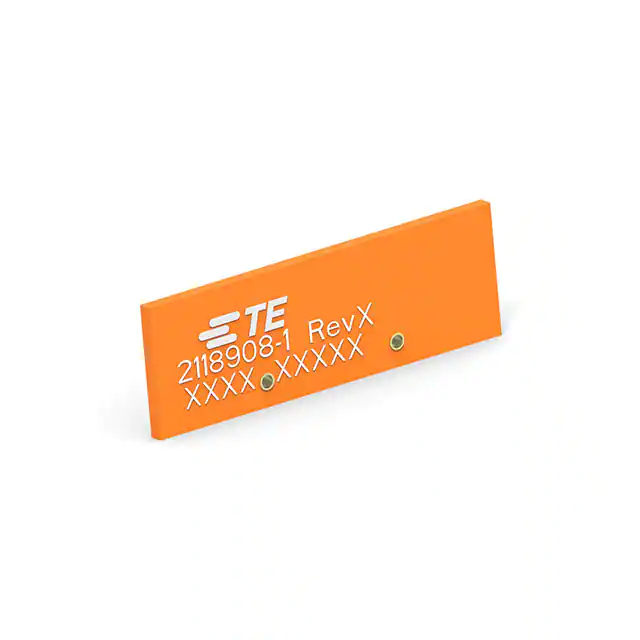

2118908-1PCB WLAN TRIPLE BAND BULK PACKAG TE Connectivity AMP Connectors |
215 |
|
规格书 |
- | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2, 2.5 | - | 2.3dBi, 2.8dBi | - | - | - | - | - | - | Surface Mount | 0.030" (0.76mm) | 802.11a/b/g/n/ac/ad/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

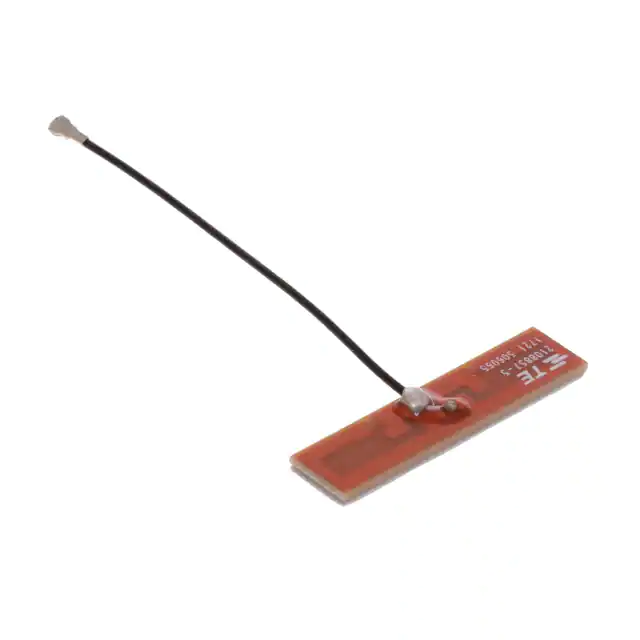

2108857-5PCB ANT, MHF4, 50MM, WI-FI 6E TR TE Connectivity AMP Connectors |
6,477 |
|
规格书 |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 50mm | MHF4 | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|

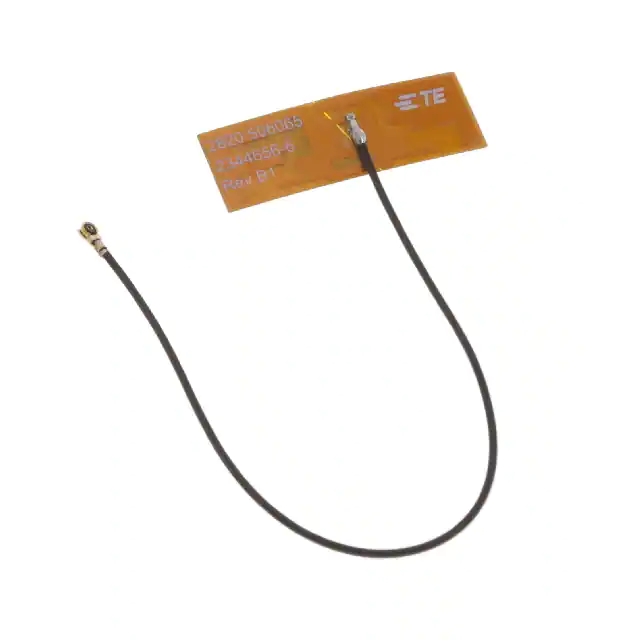

2344656-6WLAN DUAL BAND ANTENNA FPC V 100 TE Connectivity AMP Connectors |
23,862 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 100mm | I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
|
2108965-6FPC ANT, MHF 4L, 100MM, UWB 6~8. TE Connectivity AMP Connectors |
2,488 |
|
规格书 |
- | Bag | Active | Ultra Wide Band | Wide Band | 7.2GHz | 6GHz ~ 8.5GHz | Flat Patch | 1 | 2.1 | - | 3.8dBi | 10 W | Cable - 100mm | MHF4L | - | - | - | Adhesive | 0.006" (0.15mm) | UWB |
