射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

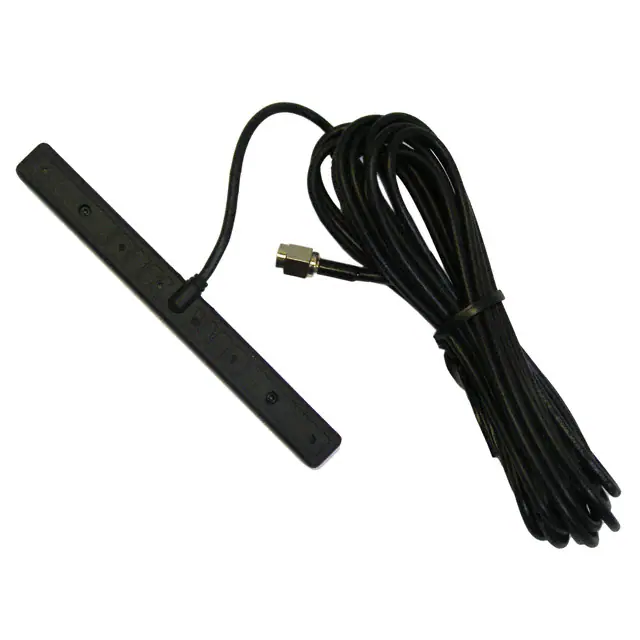

ANT-TBARQB-SMARF ANT 892MHZ/1.9GHZ FLAT BAR RF Solutions |
57 |
|
规格书 |
- | Bulk | Active | Cellular | Wide Band | 892MHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.9GHz ~ 2.2GHz | Flat Bar | 3 | 2 | - | 3dBi | - | - | SMA Male | - | - | - | Adhesive | 0.118" (3.00mm) | GSM |
|

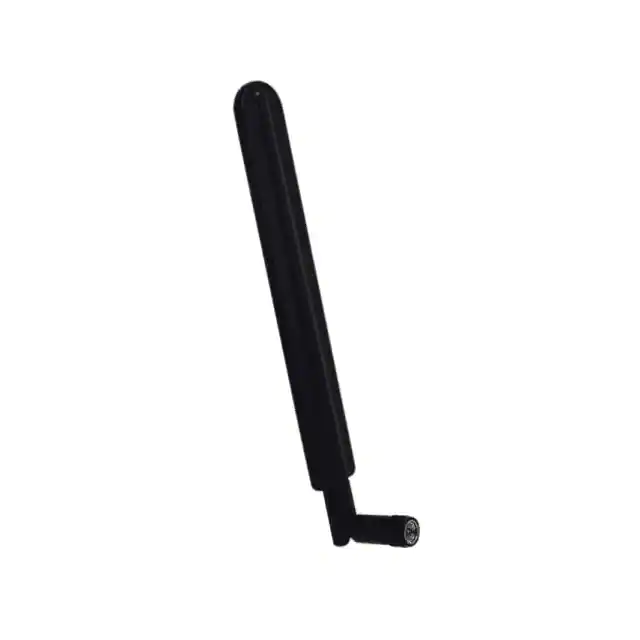

ANT-5GBLADE170-SMA5G LTE +5DBI GSM BLADE ANTENNA H RF Solutions |
36 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 892MHz, 2.195GHz, 3.5GHz, 4.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.68GHz, 3.4GHz ~ 3.6GHz, 4.8GHz ~ 4.9GHz | Blade, Tilt | 4 | 2 | - | 5dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 6.732" (171.00mm) | 5G, GSM |
|

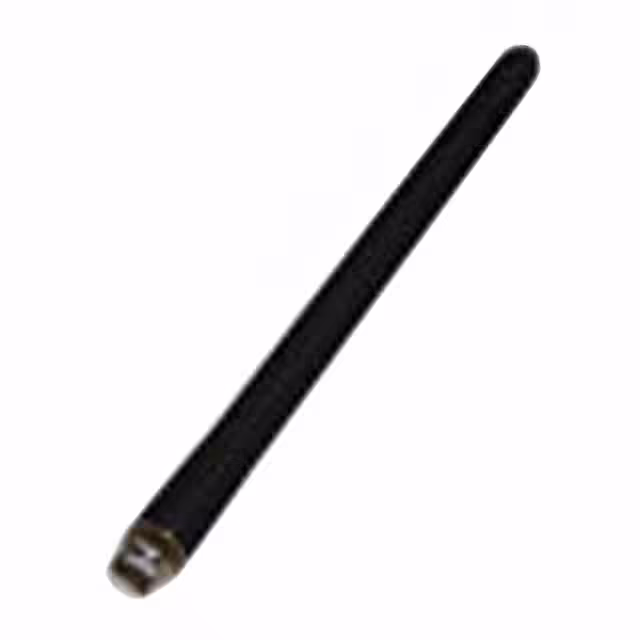

FLEXI-BNC-433RF ANT 433MHZ WHIP STR BNC CONN RF Solutions |
16 |
|
规格书 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | - | - | - | - | - | BNC | - | - | - | Connector Mount | 6.744" (171.30mm) | - |
|

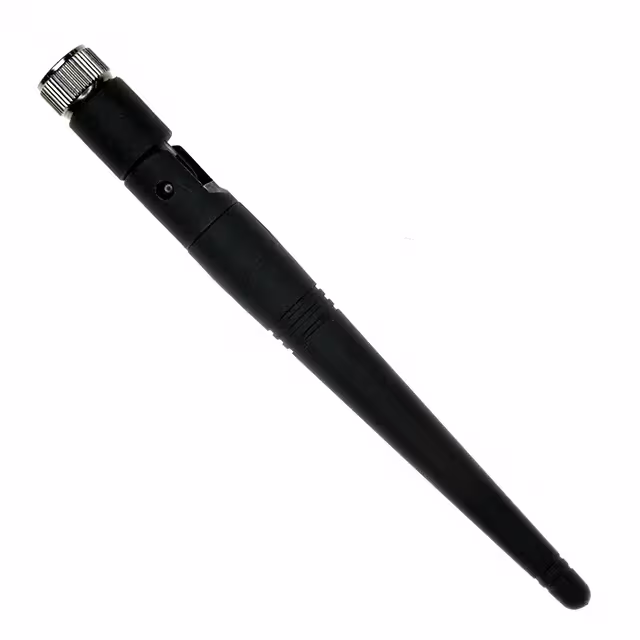

ANT-24G-WPJ-SMARF ANT 2.4GHZ WHIP TILT SMA MALE RF Solutions |
21 |
|
规格书 |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2.15dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.173" (106.00mm) | - |
|

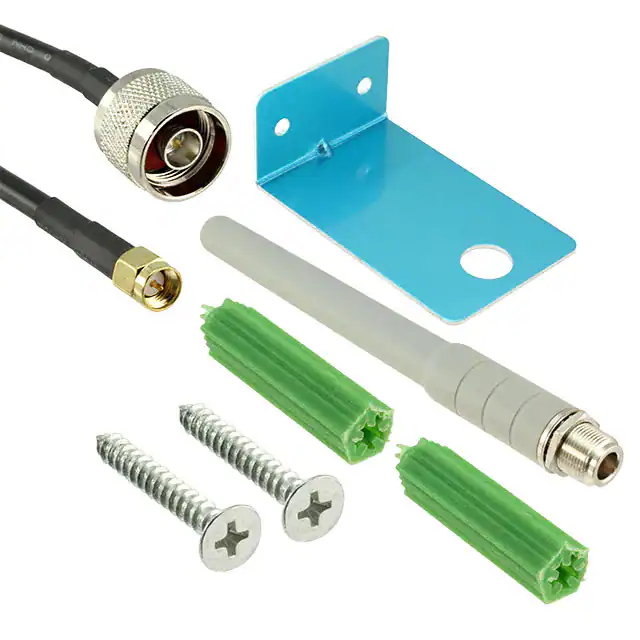

ANT-433WM3-SMARF ANT 433MHZ WHIP STR SMA MALE RF Solutions |
12 |
|
规格书 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | - | Whip, Straight | 1 | 1.8 | - | 3dBi | - | - | SMA Male | - | - | - | Bracket Mount | 7.087" (180.00mm) | General Purpose |
|
ANT-M4G3-SMA+3DBI 4G GSM/LTE OMNI WALL MOUNT RF Solutions |
4 |
|
规格书 |
- | Bag | Active | Cellular, WiFi | Wide Band | 825MHz, 1.94GHz, 2.55GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.7GHz | Whip, Straight | 3 | 2.5 | - | 3dBi | - | Cable - 3m | SMA Male | - | - | - | Bracket Mount | 10.630" (270.00mm) | 4G, GSM, LTE, Wi-Fi |
|
ANT-M5PUK-SMARF ANT 829MHZ/1.59GHZ DOME PANEL RF Solutions |
12 |
|
规格书 |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.59GHz, 2.2GHz, 2.4GHz, 5.36GHz | 698MHz ~ 960MHz, 1.575GHz ~ 1.61GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.483GHz, 4.9GHz ~ 5.825GHz | Dome | 3 | 2, 3, 2.5 | - | 28dBi, 3dBi, 2dBi | - | Cable - 3m | SMA Male | IP67 | - | - | Panel Mount | 2.157" (54.80mm) | GLONASS, GPS, LTE, Wi-Fi |
|
ANT-MF-YAG23RF ANT 910MHZ/1.8GHZ YAGI SMA ML RF Solutions |
5 |
|
规格书 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 910MHz, 1.8GHz | 860MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Yagi, 18-Element | 2 | 2 | - | 23dBi | - | - | SMA Male | - | - | - | Bracket Mount | 5.118" (130.00mm) | General Purpose |
|
ANT-GSM-YAG11RF ANT 900MHZ/1.8GHZ YAGI SMA ML RF Solutions |
4 |
|
规格书 |
- | Bulk | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | - | Yagi, 8-Element | 2 | 1.5 | - | 11dB | 60 W | - | SMA Male | - | - | - | Bracket Mount | 22.441" (570.00mm) | GSM |
|
ANT-2DIP2R-SMA2.4GHZ 2.5DBI HINGED WHIP ANTENN RF Solutions |
13 |
|
规格书 |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4415GHz | 2.4GHz ~ 2.483GHz | Whip, Tilt | 1 | 1.8 | - | 2.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.331" (110.00mm) | Wi-Fi |
