射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACAR0301-SG3RF ANT 1561~1610 MHZ CHIP SLD Abracon LLC |
48,864 |
|
规格书 |
ACAR | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.61GHz | Chip | 3 | 2 | - | 1.69dBi, -1.81dBi, 1.43dBi | - | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | Beidou, GLONASS, GPS |
|

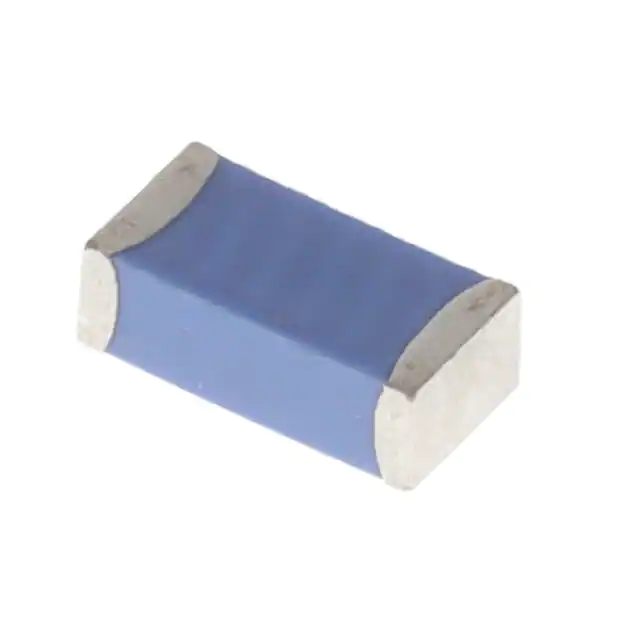

ACR0301UUWB ANT 6.24GHZ- 8.5GHZ SMD CHIP Abracon LLC |
317 |
|
规格书 |
- | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 7.37GHz | 6.24GHz ~ 8.5GHz | Chip | 1 | 2 | - | 4.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | UWB |
|

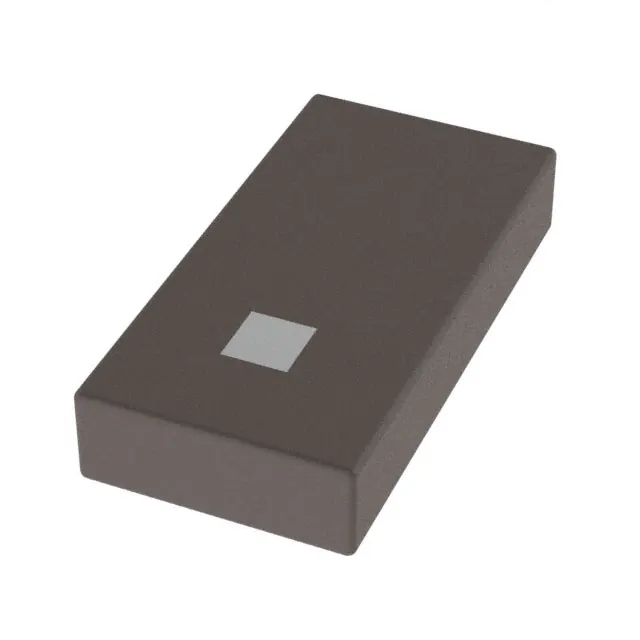

ACAG0301-24505500-TRF ANT 2.4GHZ/5.5GHZ CHIP SLD Abracon LLC |
14,052 |
|
规格书 |
ACAG | Tape & Reel (TR) | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | -7dB, -7dB | 2.23dBi, 4.05dBi | - | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, ISM, Wi-Fi |
|
APAE1575R1540AZDB2F-TRF ANT 1.575GHZ CER PATCH PIN Abracon LLC |
6,982 |
|
规格书 |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.575GHz ~ 1.579GHz | Ceramic Patch | 1 | 1.5 | -15dB | 1.2dBic | - | - | Pin | - | - | - | Adhesive | 0.185" (4.70mm) | GPS |
|
|
APAE1575R2540AADBE-TRF ANT 1.575GHZ CER PATCH PIN Abracon LLC |
235 |
|
规格书 |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.569GHz ~ 1.577GHz | Ceramic Patch | 1 | 2.32 | - | 4.5dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|
PRO-OB-468RF ANT 850MHZ/900MHZ STAMPED MET Abracon LLC |
16,706 |
|
规格书 |
Embedded Antenna | Tape & Reel (TR) | Not For New Designs | Cellular | Wide Band | 850MHz, 900MHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Stamped Metal | 2 | - | -6dB | - | - | - | Solder | - | - | - | Surface Mount | 0.394" (10.00mm) | GSM, UMTS |
|
ACG0301UUWB ANT 6.22GHZ- 8.2GHZ SMD CHIP Abracon LLC |
2,846 |
|
规格书 |
- | Tape & Reel (TR) | Active | Navigation | Wide Band | 7.2GHz | 6.2GHz ~ 8.2GHz | Chip | 1 | 2 | - | - | - | Filter | - | - | - | - | Surface Mount | 0.047" (1.20mm) | UWB |
|
|
APAE1575R2540BBDB1-TRF ANT 1.575GHZ CER PATCH PIN Abracon LLC |
24,374 |
|
规格书 |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.573GHz ~ 1.587GHz | Ceramic Patch | 1 | 1.5 | - | 4.5dBic | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|
|
APAE1575R1840AADB7-TRF ANT 1.575GHZ CER PATCH PIN Abracon LLC |
897 |
|
规格书 |
APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.580GHz ~ 1.586GHz | Ceramic Patch | 1 | 1.5 | - | - | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GPS |
|

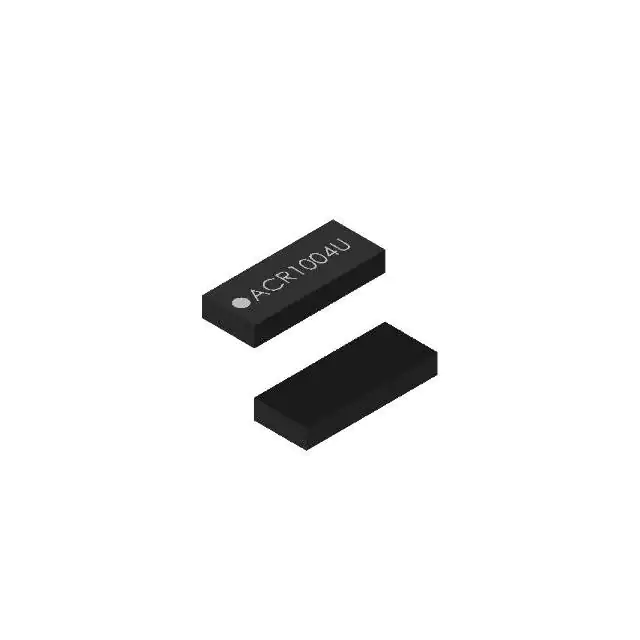

ACR1004UUWB ANT 3GHZ- 6GHZ SMD CHIP Abracon LLC |
837 |
|
规格书 |
- | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 4.5GHz | 3GHz ~ 6GHz | Chip | 1 | - | - | 5.79dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | UWB |
