射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AECW0801C03A-3000SEXTERNAL LTE + WI-FI + GNSS COMB Abracon LLC |
0 |
|
规格书 |
AECW | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.581GHz, 2.2GHz, 2.441GHz, 5.362GHz | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz | Module | 5 | 1.5, 2, 2.5, 3 | - | 2dBi, 2dBic, 2dBi, 2dBi, 2dBi | - | Cable - 3m, LNA | SMA Male (3) | IP67 | - | - | Screw Mount | 0.642" (16.30mm) | BeiDou, Cat-M, GLONASS, GNSS, GPS, IoT, LTE, M2M, NB-IoT, QZSS, Wi-Fi |
|

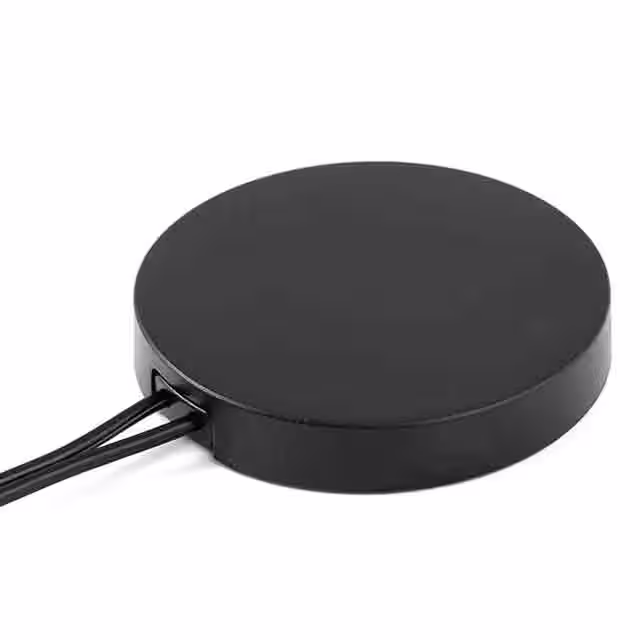

APAMSJ-147RF ANT 850MHZ/900MHZ MOD SMA ADH Abracon LLC |
0 |
|
规格书 |
APAMS | Bulk | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.592GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz | Module | 2 | 1.6, 1.5, 2.4 | -12.7dB, -14dB, -7.7dB | 1.5dBi, 0.5dBi | 25 W | Cable - 3m, 2.7m, LNA | SMA Male (2) | IP67 | - | - | Adhesive | 0.591" (15.00mm) | AMPS, DCS, GLONASS, GPS, GSM, PCS, UMTS |
|

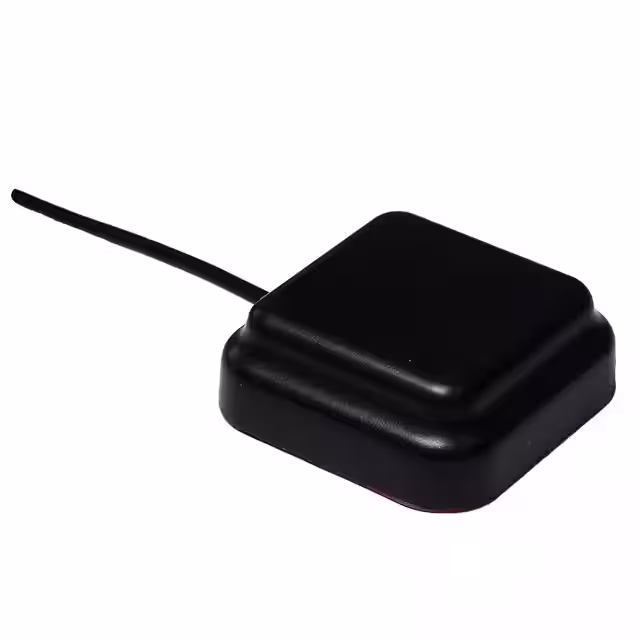

AEACBA050018-SG3RF ANT MULTIBAND MOD SMA ML ADH Abracon LLC |
0 |
|
规格书 |
AEAC | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Module | 3 | 1.5 | - | 5dBi | - | LNA | SMA | IP67 | - | - | Adhesive | 0.708" (18.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
AECR1808A12A-4000SEXTERNAL MIMO 2X5GNR + MIMO 2XWI Abracon LLC |
0 |
|
规格书 |
AECR | Bulk | Active | Cellular, Navigation | Wide Band | 1.583GHz, 2.441GHz, 3.3GHz, 5.412GHz | 600MHz ~ 6GHz, 1.561GHz ~ 1.606GHz, 2.4GHz ~ 2.483GHz, 4.9GHz ~ 5.925GHz | Module | 4 | 2, 2.5, 4 | - | 3dBi, 4dBi, 4dBi, 4dBi | 10 W | Cable - 4m, LNA | SMA Male | IP67 | - | - | Screw Mount | 3.346" (85.00mm) | 4G, BeiDou, GLONASS, GNSS, GPS, IoT, LTE, M2M, QZSS |
|

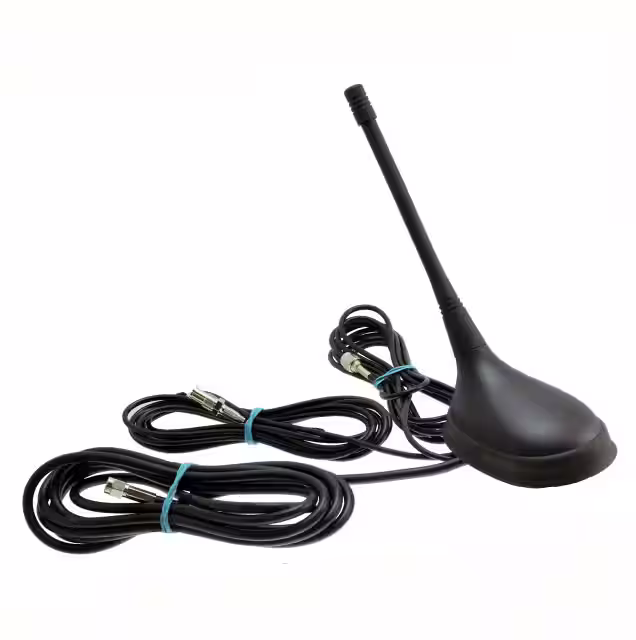

APAMPSLJ-142RF ANT 450/850MHZ WHIP STR PANEL Abracon LLC |
0 |
|
规格书 |
APAMPS | Bulk | Active | Bluetooth, Cellular, Navigation, WiFi | Wide Band | 450MHz, 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz | 380MHz ~ 500MHz, 824MHz ~ 960MHz, 1.572GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.497GHz | Whip, Straight | 9 | 2, 3.5, 1.2 | - | 2dBi, 2.2dBi, 2dBic | - | Cable - 2.5m, LNA | SMA Male (2), FME Female (1) | - | - | - | Panel Mount | 6.063" (154.00mm) | AMPS, Bluetooth, CDMA, DCS, GLONASS, GPS, GSM, Tetra, Wi-Fi, WLAN |
|

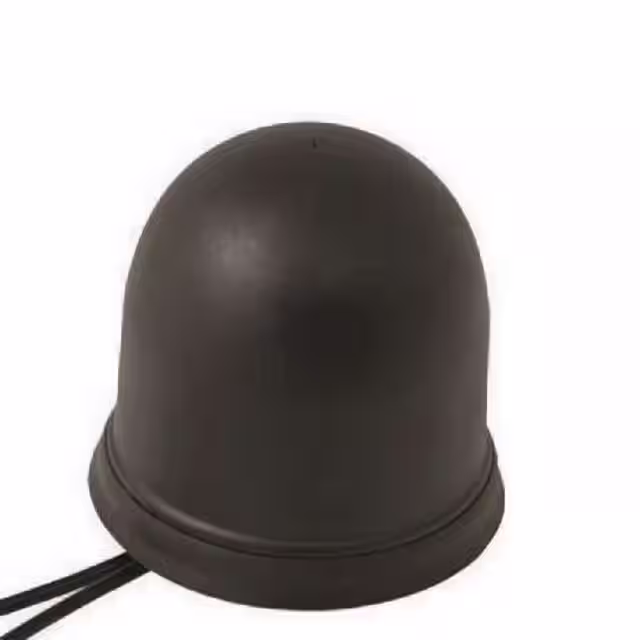

APAMPSBJ-144RF ANT 850/900MHZ WHIP STR SMA Abracon LLC |
0 |
|
规格书 |
APAMPS | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 850MHz, 900MHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.4GHz | 791MHz ~ 960MHz, 1.592GHz ~ 1.61GHz, 1.71GHz ~ 2.96GHz | Whip, Straight | 6 | 3.5 | - | 2.2dBi | - | - | SMA Male, FME Female | - | - | - | Panel Mount | 6.811" (173.00mm) | GLONASS, GPS, LTE, WLAN |
|
|
AEACAC055027-SG4L2CUSTOM: GNSS - EXTERNAL HELICAL Abracon LLC |
0 |
|
规格书 |
- | Bulk | Active | Navigation | Wide Band | - | - | Dome | 1 | 2 | - | 4.5dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | - | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
APXG6016GH-0060SRF ANTENNAS Abracon LLC |
0 |
|
规格书 |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AEXQ1706GEGNSS EXTERNAL ACTIVE ANTENNA Abracon LLC |
0 |
|
规格书 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AEXQ0902GEGNSS EXTERNAL ACTIVE ANTENNA Abracon LLC |
0 |
|
规格书 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
