射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN112-20NFWR112 GAIN HRN 7.05-10GHZ 20DBI Pasternack |
4 |
|
规格书 |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 4.071" (103.40mm) | General Purpose |
|
|
PEWAN159-15NFWR159 GAIN HRN 4.9-7.05GHZ 15DBI Pasternack |
3 |
|
规格书 |
- | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 3.101" (78.77mm) | General Purpose |
|
|
PEWAN112-20SFWR112 GAIN HRN 7.05-10GHZ 20DBI Pasternack |
2 |
|
规格书 |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 20dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 4.071" (103.40mm) | General Purpose |
|
|
PEWAN090-20SFWR42 GAIN HRN 8.2-12.4GHZ 20DBI Pasternack |
19 |
|
规格书 |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.25 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 3.265" (82.93mm) | General Purpose |
|

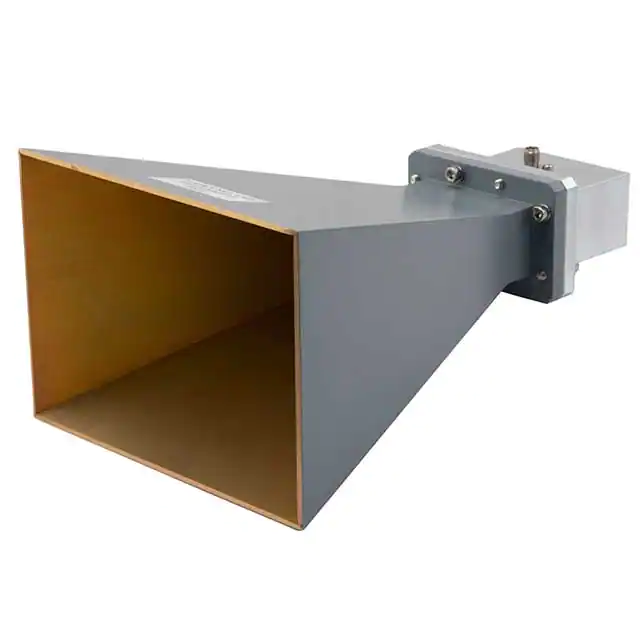

PEWAN187-15SFWR187 GAIN HORN 3.95-5.85GHZ 15D Pasternack |
8 |
|
规格书 |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | SMA Female | - | - | - | Waveguide Flange Mount | 8.198" (208.23mm) | - |
|
|
PEWAN137-20SFWR137 GAIN HRN 5.85-8.2GHZ 20DBI Pasternack |
7 |
|
规格书 |
- | Case | Active | WiFi | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 4.965" (126.10mm) | General Purpose |
|
|
PEWAN090-20NFWR42 GAIN HRN 8.2-12.4GHZ 20DBI Pasternack |
4 |
|
规格书 |
- | Tape & Box (TB) | Active | Waveguide | Wide Band | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.25 | - | 20dBi | - | Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 3.265" (82.93mm) | General Purpose |
|
|
PE9859B-10-CPRGWR-137 Waveguide Standard Gain H Pasternack |
2 |
|
规格书 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 3.020" (76.71mm) | General Purpose |
|

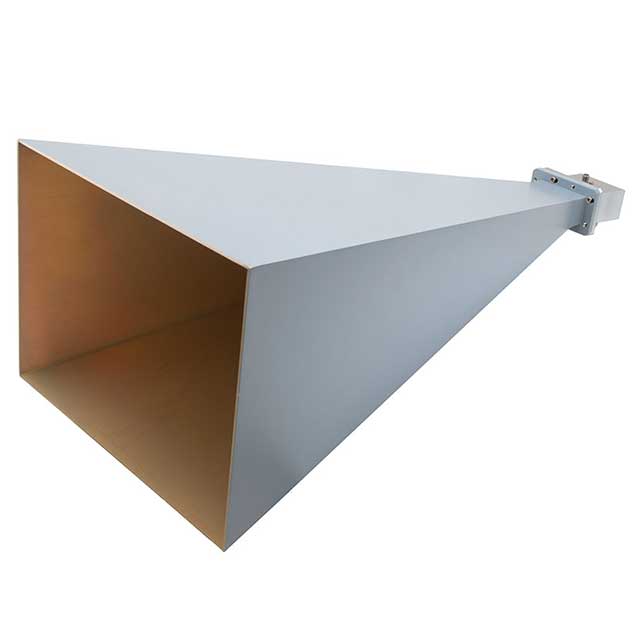

PEWAN187-20SFWR187 GAIN HORN 3.95-5.85GHZ 20D Pasternack |
4 |
|
规格书 |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | SMA Female | - | - | - | Waveguide Flange Mount | 20.796" (528.22mm) | - |
|

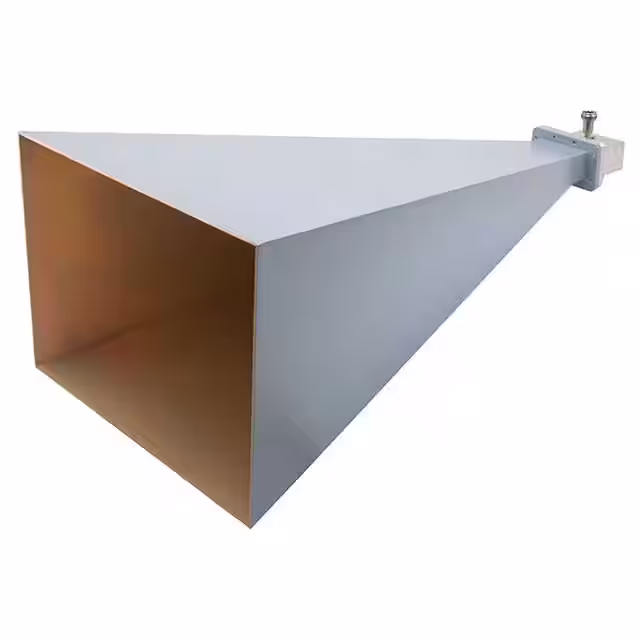

PEWAN187-20NFWR187 GAIN HORN 3.95-5.85GHZ 20D Pasternack |
4 |
|
规格书 |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 20.856" (529.74mm) | - |
