| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN112-10WR112 GAIN HORN 7.05-11GHZ 10DBI Pasternack |
7 |
|
规格书 |
- | Bulk | Active | Waveguide | H Band (6GHz ~ 8GHz) | 9.03GHz | 7.05GHz ~ 11GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PE9850B-10WR-28 Waveguide Standard Gain Ho Pasternack |
6 |
|
规格书 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 33.25GHz | 26.5GHz ~ 40GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 1.000" (25.40mm) | General Purpose |
|

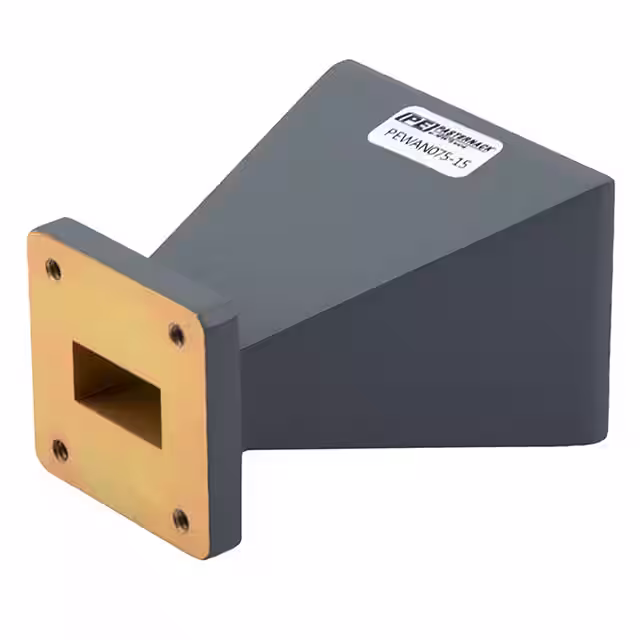

PEWAN075-15WR75 GAIN HORN 10-15GHZ 15DBI Pasternack |
2 |
|
规格书 |
- | Bulk | Active | Waveguide | X-Ku Band (8GHz ~ 18GHz) | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN159-10WR159 GAIN HORN 4.9-7.05GHZ 10DB Pasternack |
15 |
|
规格书 |
- | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 5.9GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN137-15WR137 GAIN HORN 5.85-8.2GHZ 15DB Pasternack |
4 |
|
规格书 |
- | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 7.03GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
PEWAN229-10WR229 GAIN HORN 3.3-4.9GHZ 10DBI Pasternack |
3 |
|
规格书 |
- | Bulk | Active | Waveguide | S-C Band (2GHz ~ 8GHz) | 4.1GHz | 3.3GHz ~ 4.9GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9860B-20WR-159 Standard Gain Horn Antenn Pasternack |
5 |
|
规格书 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 15.800" (401.32mm) | General Purpose |
|
|
PE9859B-20WR-137 Standard Waveguide Horn W Pasternack |
3 |
|
规格书 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 70.25GHz | 58.5GHz ~ 82GHz | Horn | 1 | 1.5 | - | 20dBi | - | - | - | - | - | - | Waveguide Mount | 12.570" (319.28mm) | General Purpose |
|
|
PE9861B-10WR-187 Waveguide Standard Gain H Pasternack |
2 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 6.030" (153.16mm) | General Purpose |
|
|
PEWAN1024WR-8 WAVEGUIDE STANDARD GAIN HOR Pasternack |
2 |
|
规格书 |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 115GHz | 90GHz ~ 140GHz | Horn | 1 | 1.15 | - | 25dBi | - | - | - | - | - | - | Waveguide Mount | 2.300" (58.42mm) | General Purpose |
