射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

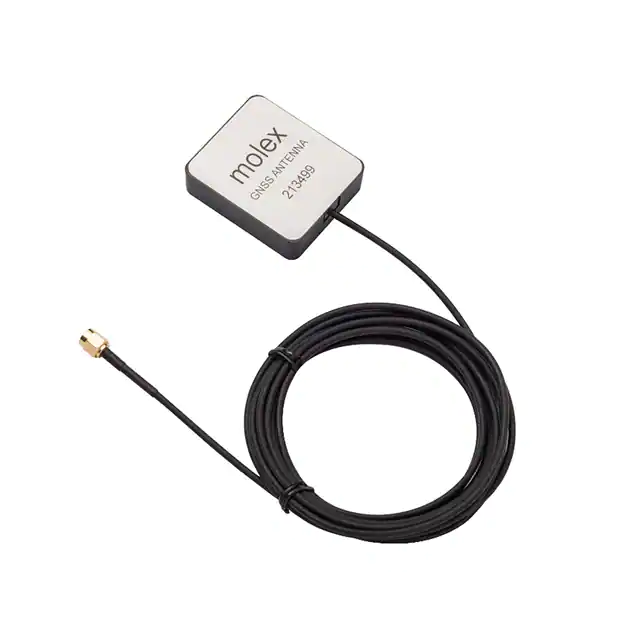

2134993000GNSS EXT ANTENNA MAG MNT 3.0M CA Molex |
169 |
|
规格书 |
213499 | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Module | 3 | - | -10dB | -1.7dBi, -0.4dBi, -1.4dBi | - | Cable - 3m | SMA Male | - | - | - | Magnetic | 0.657" (16.70mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|

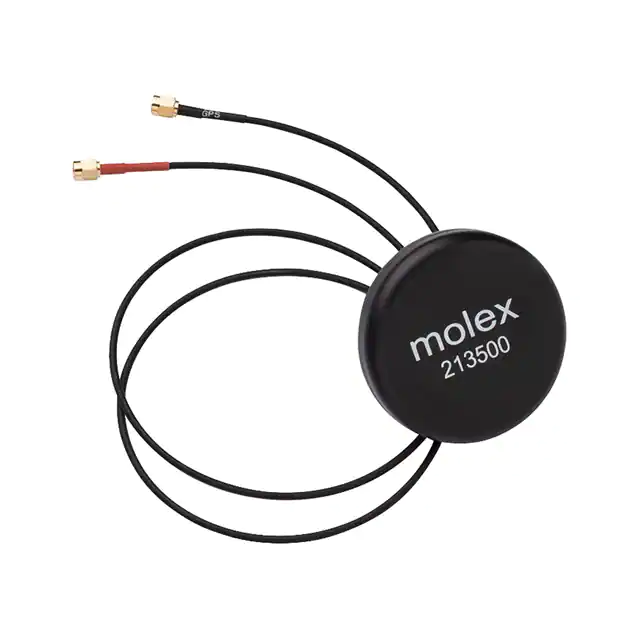

21350005002-IN-1 LTE / GPS EXT ANTENNA 500 Molex |
364 |
|
规格书 |
213500 | Box | Active | Cellular, Navigation | Wide Band | 892MHz, 1.575GHz, 2.2GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.69GHz | Module | 3 | - | -5dB, 1.5dB | 0.77dBi, 0.77dBi, 3.73dBi | - | Cable - 500mm | SMA Male (2) | - | - | - | Adhesive, Panel Mount | 0.587" (14.90mm) | LTE, GPS |
|

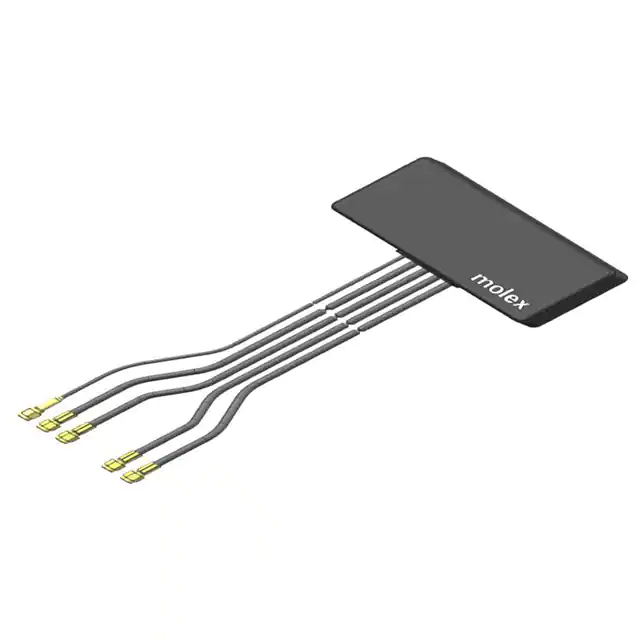

2165891000MOLEX MULTI-HUB ANTENNA Molex |
41 |
|
规格书 |
216589 | Tray | Active | WiFi | Wide Band | 829MHz, 1.581GHz, 1.6GHz, 2.2GHz, 2.45GHz, 4.15GHz, 5.5GHz | 698MHz ~ 960MHz, 1.5GHz ~ 1.7GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5GHz ~ 6GHz | - | 7 | - | -5dB | - | - | Cable - 1m | SMA Male (5) | IP66 | - | - | Adhesive | 0.866" (22.00mm) | GNSS, GPS, LTE, Wi-Fi |
|

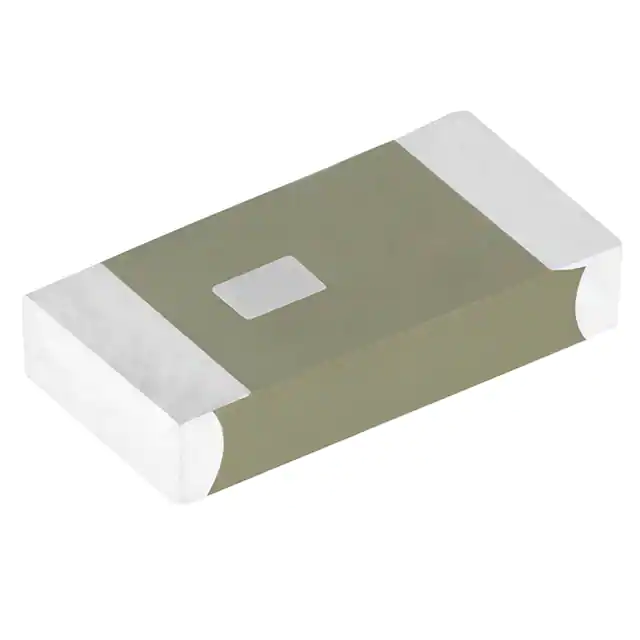

20677400012.4/5GHZ T0.6MM ANT CORNER MOUNT Molex |
5,221 |
|
规格书 |
206774 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | -7dB, -10dB | 1.8dBi, 1.9dBi, 1.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.026" (0.65mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

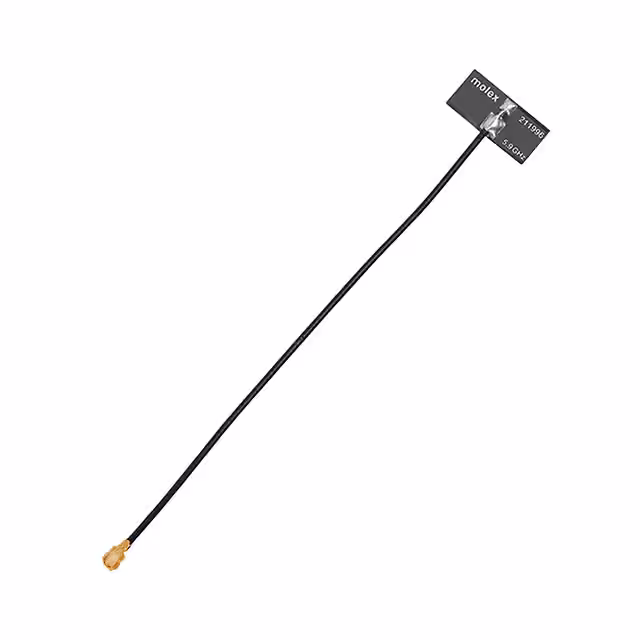

21199601005.9GHZ FLEXIBLE ANTENNA WITH CAB Molex |
12,015 |
|
规格书 |
211996 | Tray | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.8875GHz | 5.85GHz ~ 5.925GHz | PCB Trace | 1 | - | -10dB | 5.5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.16mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

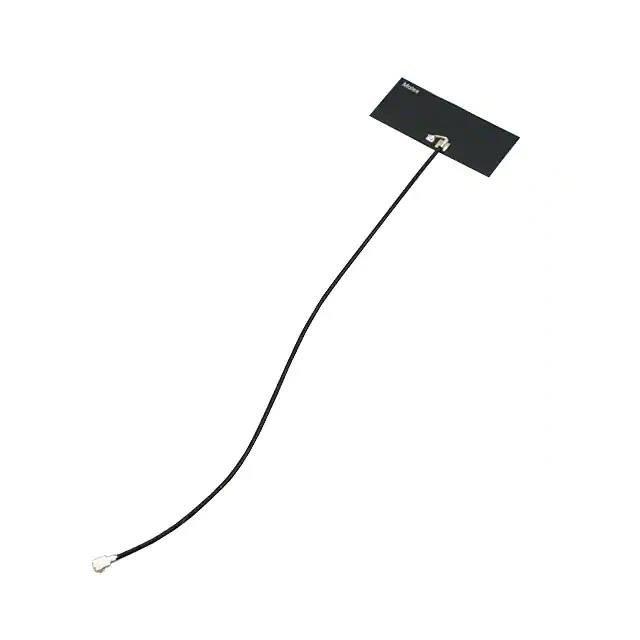

0479501011RF ANT 2.4/5GHZ PCB TRC CAB .61" Molex |
9,831 |
|
规格书 |
47950 | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483.5GHz, 4.8GHz ~ 5.9GHz | PCB Trace | 2 | - | -10dB, -9dB | 3dBi, 4.8dBi | 2 W | Cable - 150mm | SMT Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|
1461850050RF ANT 892MHZ/1.9GHZ FLAT PATCH Molex |
2,509 |
|
规格书 |
146185 | Bulk | Active | Cellular, WiFi | Wide Band | 892MHz, 1.9GHz, 4.5GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3GHZ ~ 6GHz | Flat Patch | 3 | - | -6dB | 4.2dB | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | WLAN |
|
1461860150RF ANT 1.561/1.575GHZ FLAT 150MM Molex |
2,578 |
|
规格书 |
146186 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 1.575GHz ~ 1.602GHz, 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | Flat Patch | 5 | - | -10dB | 2.85dBi, 3.75dBi, 4.5dBi | 2 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|
1462000011RF ANT CER PATCH SOLDER SMD Molex |
8,592 |
|
规格书 |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Ceramic Patch | 2 | - | -5dB | 0.5dBi, 3.7dBi | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | LTE |
|
1462200100RF ANT 1.561/1.575GHZ PCB 100MM Molex |
724 |
|
规格书 |
146220 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | PCB Trace | 5 | - | -8dB | 2.4dBi, 2.9dBi, 3.5dBi, 3.8dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.032" (0.81mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
