射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BMLPVMB/LTERF ANT 780MHZ/2.205MHZ OMNI NMO |
98 |
|
规格书 |
MLPV | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 780MHz, 2.205GHz | 600MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Omni-Directional | 2 | 2 | 9.54dB | 3dBi | 150 W | - | NMO | IP66 | - | - | NMO Mount | 35.039" (890.00mm) | 2G, 3G, 5G, Bluetooth, Cellular, ISM, LoRa, LPWAN, LMR/TETRA/P25, LTE, Wi-Fi |
|
SLPT2400DMNRF ANT 2.45GHZ DOME N FEM CONN |
56 |
|
规格书 |
Shadow | Bulk | Active | Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Dome | 1 | 2 | - | 4.78dBi | 10 W | - | N Type Female | IP67 | - | - | Connector Mount | 2.624" (66.66mm) | 3G, 4G, DSRC, LTE, ISM, Wi-Fi |
|
MD24-12RF ANT 2.4GHZ PANEL N FEM BRKT |
11 |
|
规格书 |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Panel | 1 | 1.5 | -14dB | 12dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 4.016" (102.00mm) | WiMax™, WLAN |
|
TANGO43/0.5M/SMAM/SMAM/RP/S/S/17RF ANT DOME RP-SMA MALE PAN MT |
60 |
|
规格书 |
- | Bulk | Active | Cellular, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | - | - | Dome | 3 | 1.5 | - | 2dBi | 60 W | - | RP-SMA Male | IP67 | - | - | Panel Mount | 0.571" (14.50mm) | LTE, Wi-Fi |
|
33-4421-00-3000RF ANT 1.575GHZ/1.602GHZ MOD 3M |
64 |
|
规格书 |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Module | 2 | 1.5 | - | 4.5dBic | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive, Magnetic | 0.563" (14.30mm) | GLONASS, GPS |
|
TRA9023PRF ANT 915MHZ DOME N FEM PAN MT |
78 |
|
规格书 |
Phantom® | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Dome | 1 | - | - | 3dBi | 150 W | - | N Type Female | - | - | - | Panel Mount | 2.700" (68.58mm) | GSM |
|
WRL-13002RF ANT 537MHZ WHIP STR SMA MALE |
37 |
|
规格书 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 537MHz | 75MHz ~ 1GHz | Whip, Straight | 1 | - | - | - | - | - | SMA Male | - | - | - | Connector Mount | 34.646" (880.00mm) | - |
|

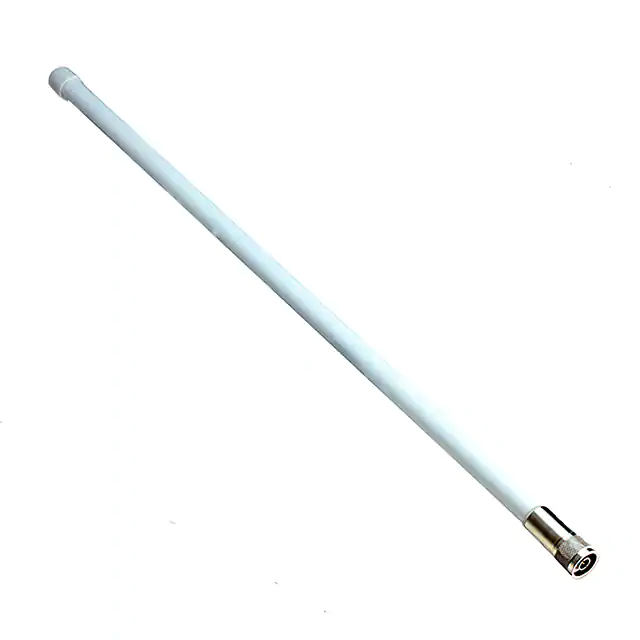

SG1019NM-915RF ANT 915MHZ WHIP STR N MALE |
83 |
|
规格书 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 5dBi | - | - | N Type Male | IP67 | - | - | Connector Mount | 20.787" (528.00mm) | - |
|
ANT-GSMGPSPUKSRF ANT 850MHZ/900MHZ PUCK PNL MT |
19 |
|
规格书 |
- | Bulk | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.6GHz | 824MHz ~ 960MHz, 1.57GHz ~ 1.58GHz, 1.71GHz ~ 2.17GHz, 2.6GHz ~ 2.7GHz | Puck | 4 | 2 | - | 2dB, 30dB | - | Cable - 3m | SMA Male (2) | IP67 | - | - | Panel Mount | 0.917" (23.30mm) | GPS, GSM |
|
MA530.A.CG.003RF ANT 2.4GHZ/5.5GHZ DOME RP-SMA |
46 |
|
规格书 |
Ultima | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Dome | 2 | 3 | -5dB | 3.5dBi, 1.6dBi | 5 W | - | RP-SMA Male | IP69K | - | - | Panel Mount | 0.772" (19.60mm) | Bluetooth, WLAN, Zigbee™ |
|
|
33-4721-00-3000RF ANT 1.561GHZ/1.575GHZ MOD 3M |
93 |
|
规格书 |
Accutenna® | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.59GHz, 1.602GHz | 1.559GHz ~ 1.606GHz | Module | 2 | 1.5 | - | 4.5dBic | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Adhesive, Magnetic | 0.563" (14.30mm) | Beidou, Galileo, GLONASS, GPS |
|
2701408RF ANT 2.4GHZ/5GHZ WHIP STR N ML |
16 |
|
规格书 |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.83GHz | Whip, Straight | 2 | - | - | 2.5dBi, 5dBi | - | - | N Type Male | IP68 | - | - | Connector Mount | 7.087" (180.00mm) | - |
|
TRA4503PRF ANT 460MHZ DOME N FEM PAN MT |
20 |
|
规格书 |
Phantom® | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Dome | 1 | 2 | - | 3dBi | 150 W | - | N Type Female | - | - | - | Panel Mount | 4.135" (105.03mm) | - |
|
PC906NRF ANT 918MHZ YAGI N TYP BRKT MT |
16 |
|
规格书 |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz) | 918MHz | 896MHz ~ 940MHz | Yagi, 6-Element | 1 | - | - | 8.5dBd | 200 W | Cable - 483mm | N Type Female | - | - | - | Bracket Mount | 24.750" (628.65mm) | GSM |
|
GPS-15192GNSS MULTI-BAND MAGNETIC MOUNT A |
11 |
|
规格书 |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.223GHz, 1.5825GHz | 1.197GHz ~ 1.249GHz, 1.559GHz ~ 1.606GHz | Module | 2 | 2 | - | 2dBic, 3.5dBic | - | Cable - 5m | SMA | IP67 | - | - | Magnetic | 0.886" (22.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AA.200.151111MAGMAX2 ACTIVE MULTIBAND GNSS |
14 |
|
规格书 |
- | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.23GHz, 1.56GHz, 1.58GHz, 1.6GHz | - | Module | 5 | 2 | - | 0.6dBi, -0.9dBi, 2.1dBi, 2.9dBi, 2.4dBi | - | Cable - 1.5m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 1.043" (26.50mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
|
HGV-2404UANTOMNI 2.4GHZ 4DBI |
4 |
|
规格书 |
HGV | Bag | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 4dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 8.700" (220.98mm) | 802.11b/g, Bluetooth, ISM, Wi-Fi, WLAN |
|
T00074696 DBI ANTENNA, 860-930 MHZ |
9 |
|
规格书 |
- | Box | Active | - | UHF (300MHz ~ 1GHz) | 865MHz, 914MHz | 860MHz ~ 930MHz | Whip, Straight | 1 | 1.8 | - | 6dBi | 20 W | - | N-J | - | - | - | U-Lock | 31.496" (800.00mm) | - |
|
FG4500RF ANT 460MHZ WHIP STR N FEM 26" |
18 |
|
规格书 |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 0dBd | 100 W | - | N Type Female | - | - | - | Bracket Mount | 26.000" (660.40mm) | - |
|
AP-M2M3-CC-Q-S22-BL-6ANTENNA PLUS OPTOMX M2M MIMO ANT |
25 |
|
规格书 |
OPTOMX® | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.205GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Dome | 2 | - | - | 3.5dBi, 5dBi | - | Cable - 1.8288m | SMA Male (2) | IP67 | - | - | Bolt | 3.622" (92.00mm) | LTE |
