射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X1005249-LGA2SA10A2ANTENNA GPS-GLONASS/LTE KYOCERA AVX |
1 |
|
规格书 |
- | Box | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.602GHz, 1.94GHz, 2.495GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz | Module | 5 | 2, 2.3, 3.8, 5 | - | 3.7dBi, 3dBi, 3.5dBi, 3.6dBi, 3.6dBi | - | Cable - 1m, LNA | SMA Male (2) | IPX5 | - | - | Adhesive | 0.787" (20.00mm) | GLONASS, GPS, LTE |
|
W3P42X8F04-H050D3B0TWI-FI DUAL BAND/BLUETOOTH PCB AN KYOCERA AVX |
0 |
|
- |
- | Bag | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
X9001248-4GMRMB1000L4G/CELLULAR MAGNET MOUNT EXTERNA KYOCERA AVX |
0 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | - | -6dBi, -5.2dBi | 1.8dBi, 1.9dBi | - | Cable - 1m | RP-SMA Male | IP65 | - | - | Magnetic | 4.331" (110.00mm) | 2G, 3G, 4G, LoRa, LTE Cat 1, LTE-M, M2M, NB-IoT, SigFox |
|
|
1002232-01EVB - EVALUATION BOARD FOR 10022 KYOCERA AVX |
5 |
|
规格书 |
- | Bag | Active | Bluetooth, General ISM | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 866.5MHz, 915MHz, 2.45GHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Flat Bar | 3 | 2 | - | 0.51dBi, 0.21dBi, 1.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | Bluetooth, ISM, LoRa, M2M, Sigfox, WLAN |
|
|
9002133-02EVB - EVALUATION BOARD FOR 90021 KYOCERA AVX |
5 |
|
规格书 |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Chip | 2 | 2.32, 2.34 | - | 0.5dBi, 1.2dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | IoT, ISM, LoRa, M2M |
|

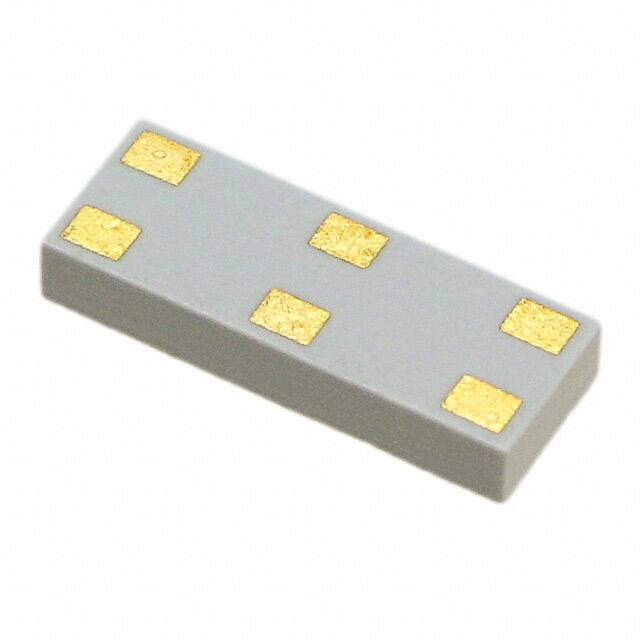

M830110-10KRF ANT 1.561GHZ/1.575GHZ CHIP KYOCERA AVX |
0 |
|
规格书 |
Savvi™ | Tape & Reel (TR) | Not For New Designs | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Chip | 1 | 1.7 | - | 1.78dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Beidou, GLONASS, GPS |
|
M830510-10KRF ANT 2.4GHZ/5.4GHZ CHIP SLD KYOCERA AVX |
0 |
|
规格书 |
Savvi™ | Tape & Reel (TR) | Not For New Designs | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Chip | 2 | 2.6, 3 | - | 1.1dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.052" (1.33mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
M830320-4.5KRF ANT 2.4GHZ CHIP SOLDER SMD KYOCERA AVX |
0 |
|
规格书 |
Savvi™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.39dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|

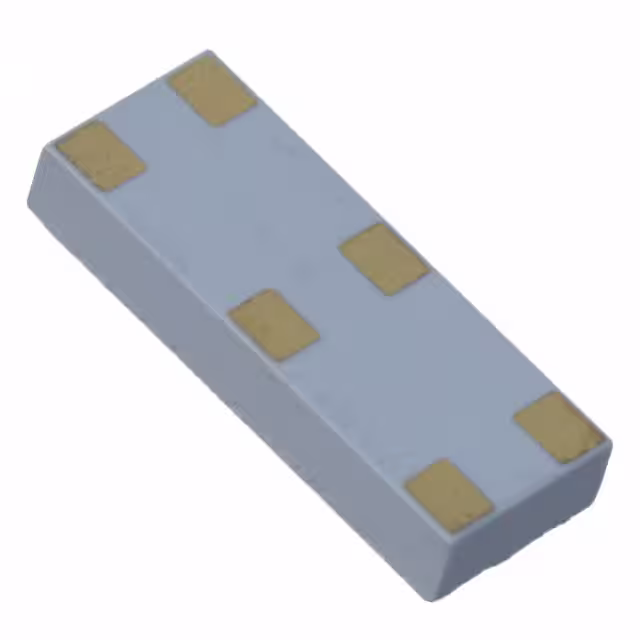

M830510RF ANT 2.4GHZ/5.4GHZ CHIP SLD KYOCERA AVX |
0 |
|
规格书 |
Savvi™ | Tape & Reel (TR) | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Chip | 2 | 2.6, 3 | - | 1.1dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.052" (1.33mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

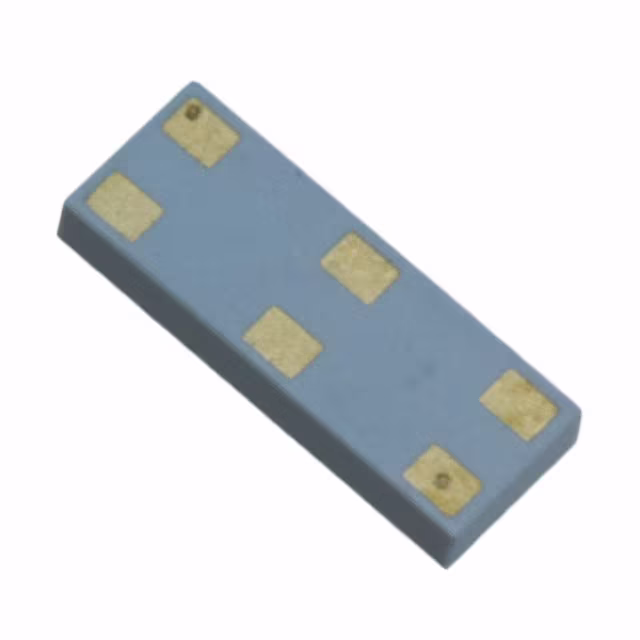

M830110RF ANT 1.561GHZ/1.575GHZ CHIP KYOCERA AVX |
0 |
|
规格书 |
Savvi™ | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Chip | 1 | 1.7 | - | 1.78dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Beidou, GLONASS, GPS |
