干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HE221A2450RELAY REED SPST 500MA 24V |
0 |
|
规格书 |
200 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 7.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 16.8 VDC | 1.4 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|

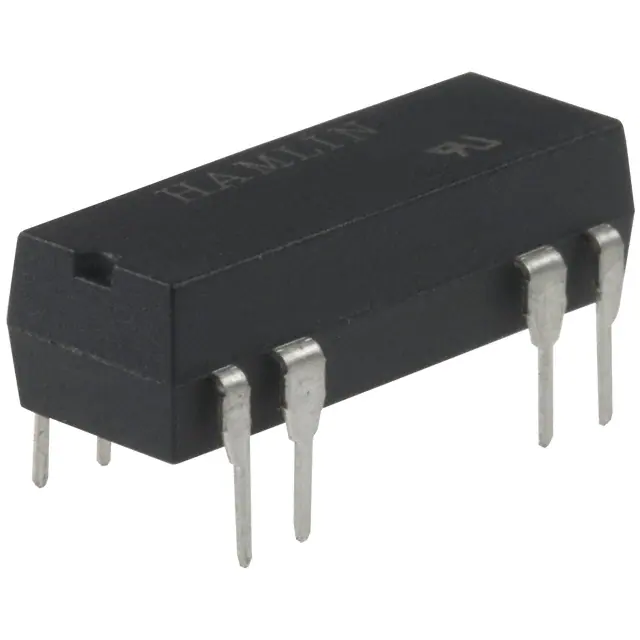

HE721A1215RELAY REED SPST 500MA 12V |
0 |
|
规格书 |
HE700 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
8061-05-101RELAY REED SPDT 250MA 5V |
0 |
|
规格书 |
8000 | Tube | Obsolete | Surface Mount | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Electrostatic Shield | J Lead | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
|
8041-05-011RELAY REED SPDT 250MA 5V |
0 |
|
规格书 |
8000 | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
MRB10273RELAY REED |
0 |
|
- |
- | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HE05-1A83-02RELAY REED SPST 3A 5V |
0 |
|
规格书 |
HE | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 7500VAC, 7500VDC - Max | 100 mA | Non Latching | - | PC Pin | - | 4 VDC | 0.75 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
BE05-2A88-PRELAY REED DPST 1A 5V |
0 |
|
规格书 |
BE | Tube | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 1000VAC, 1000VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | 3.5 VDC | 0.75 VDC | - | - | - | - |
|
SIL05-1A31-71MRELAY REED SPST 2A 5V |
0 |
|
规格书 |
SIL | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 500VAC, 500VDC - Max | 62 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 1.2 ms | 1 ms | -20°C ~ 70°C | - |
|
MS05-1A31-75LRELAY REED SPST 2A 5V |
0 |
|
规格书 |
MS | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.75 VDC | 1 ms | 0.7 ms | -20°C ~ 70°C | - |
|
|
8260-05-10RELAY REED 5V |
0 |
|
- |
8200 | Tube | Obsolete | Through Hole | 5VDC | - | - | - | - | Non Latching | - | PC Pin | - | - | - | - | - | - | - |
|
8001-05-111RELAY REED SPST 500MA 5V |
0 |
|
规格书 |
8000 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 1 ms | -20°C ~ 85°C | - |
|
9081C-05-00RELAY REED SPDT 400MA 5V |
0 |
|
规格书 |
9000, Spartan | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 400 mA | 175VAC, 175VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
9081C-05-10RELAY REED SPDT 400MA 5V |
0 |
|
规格书 |
9000, Spartan | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 400 mA | 175VAC, 175VDC - Max | 40 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
9081C-12-00RELAY REED SPDT 400MA 12V |
0 |
|
规格书 |
9000, Spartan | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 400 mA | 175VAC, 175VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
9081C-12-10RELAY REED SPDT 400MA 12V |
0 |
|
规格书 |
9000, Spartan | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 400 mA | 175VAC, 175VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
9081C-24-00RELAY REED SPDT 400MA 24V |
0 |
|
规格书 |
9000, Spartan | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 400 mA | 175VAC, 175VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
9081C-24-10RELAY REED SPDT 400MA 24V |
0 |
|
规格书 |
9000, Spartan | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 400 mA | 175VAC, 175VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 1.5 ms | -20°C ~ 85°C | - |
|
|
2610-12-310RELAY REED SPDT 200MA 12V |
0 |
|
- |
2600 | Bulk | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 200 mA | 250VAC - Max | - | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | - | - | -20°C ~ 70°C | - |
|
|
2611-05-300RELAY REED SPDT 250MA 5V |
0 |
|
- |
2600 | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 200VDC - Max | - | Non Latching | - | PC Pin | - | 3.7 VDC | 0.4 VDC | - | - | -20°C ~ 70°C | - |
|
|
2611-05-301RELAY REED SPDT 250MA 5V |
0 |
|
- |
2600 | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 200VDC - Max | - | Non Latching | - | PC Pin | - | 3.7 VDC | 0.4 VDC | - | - | -20°C ~ 70°C | - |
