按钮开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器标记 | 颜色 - 执行器/帽 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 防护等级 | 特性 | 面板开孔尺寸 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

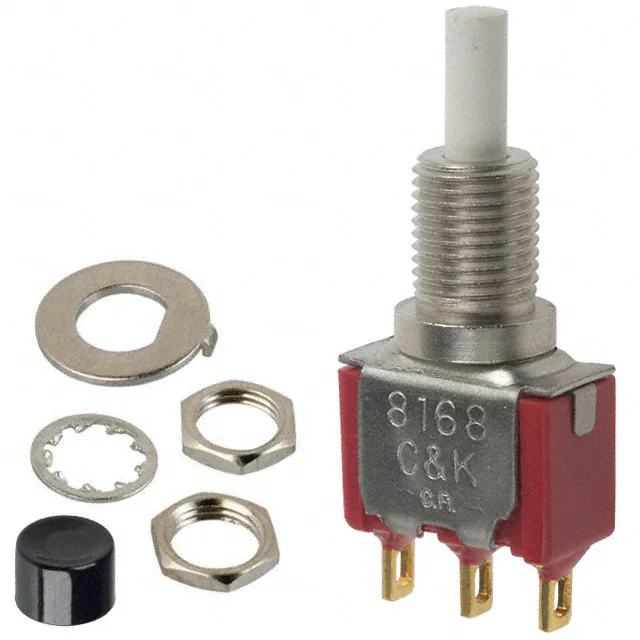

8168SHZGE2SWITCH PUSHBUTTON SPDT 6A 120V |
136 |
|
规格书 |
8060 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
0041.9147.3317SWITCH PUSH DPST-NO 200MA 60V |
131 |
|
规格书 |
LDT | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-Mom | 200mA (AC/DC) | 60 V | 50 V | Square, Button | No Marking | Red | LED, Red | 1.9 VDC | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 60°C |
|
8633ZGE2SWITCH PUSH SPST-NC 0.25A 120V |
174 |
|
规格书 |
8600 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 250mA (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 4.37mm Dia | -30°C ~ 65°C |
|
UB15SKG035D-JBSWITCH PUSH SPDT 0.4VA 28V |
474 |
|
规格书 |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
UB15SKG035D-JDSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
规格书 |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

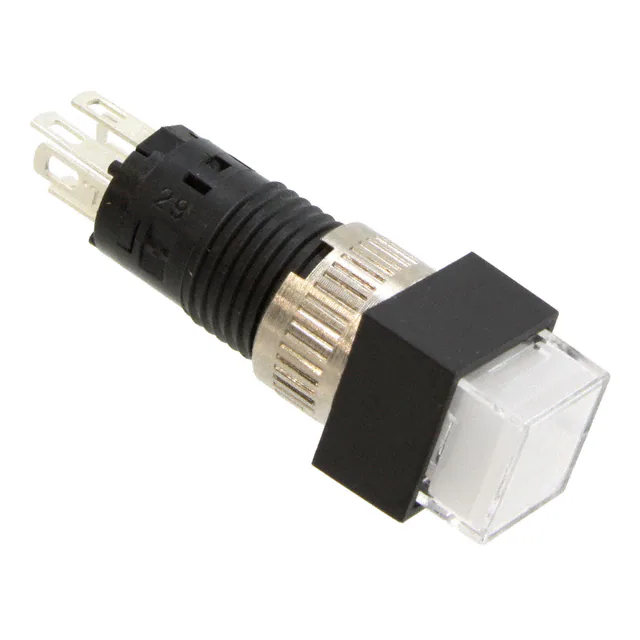

HB15SKW01-5F-JBSWITCH PUSH SPDT 0.1A 30V |
631 |
|
规格书 |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|

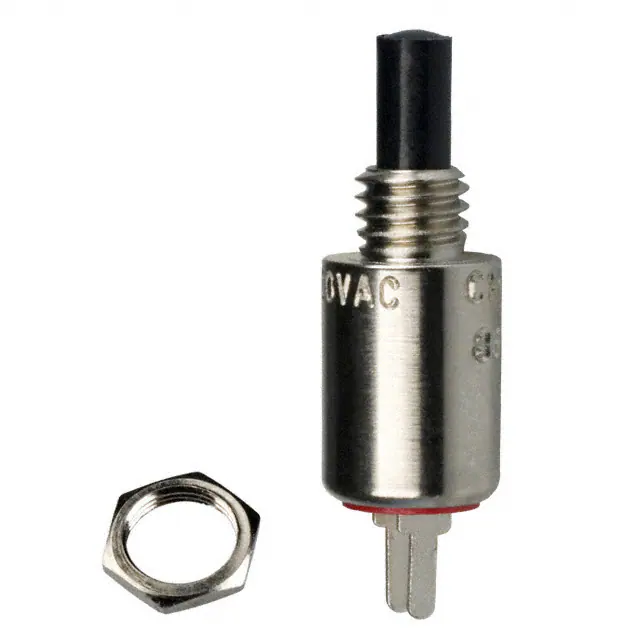

8632CQD2SWITCH PUSH SPST-NO 0.5A 120V |
685 |
|
规格书 |
8600 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.37mm Dia | -30°C ~ 65°C |
|

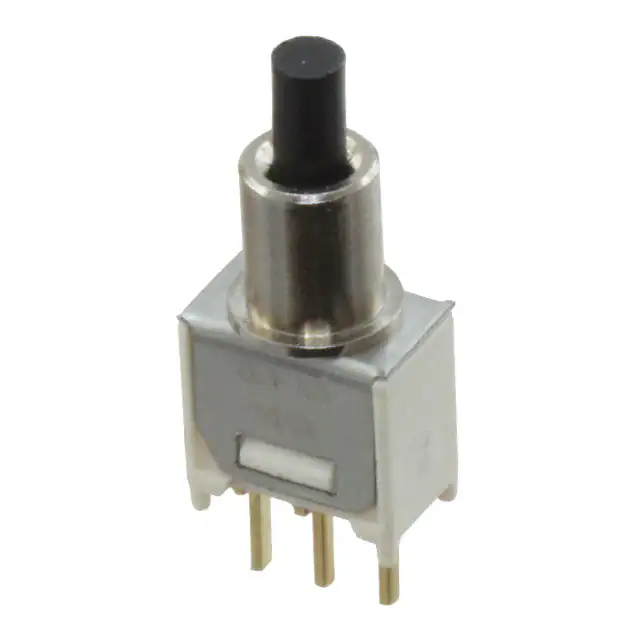

TP12SH8CBESWITCH PUSH SPDT 0.4VA 20V |
128 |
|
规格书 |
TP | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
LB15SKW01-CSWITCH PUSHBUTTON SPDT 3A 125V |
10 |
|
规格书 |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|

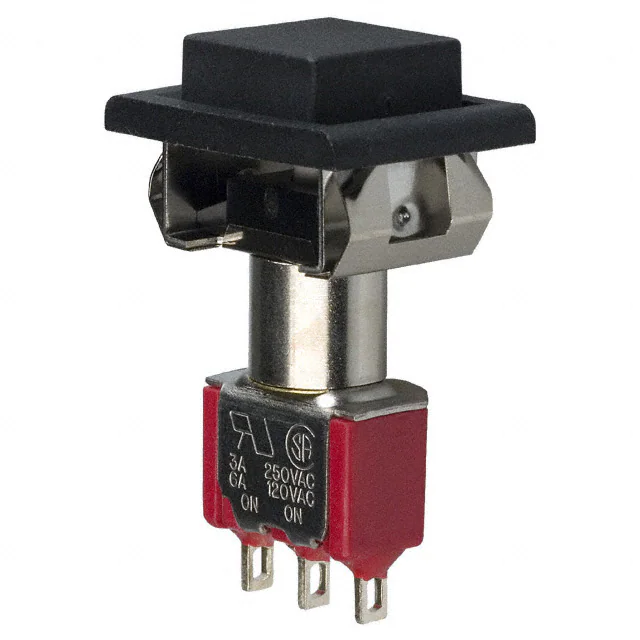

8161J81ZQE22SWITCH PUSHBUTTON SPDT 6A 120V |
255 |
|
规格书 |
8060 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
|
WH58M-112W/4044SWITCH PUSHBUTTON 10A 125V |
103 |
|
规格书 |
WH58M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom | 10A (AC), 5A (DC) | 125 V | 28 V | Round, Button, Flush | - | Silver | LED, White | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.15mm Dia | -40°C ~ 85°C |
|
A22NN-BNM-NYA-G002-NNSWITCH PUSH SPST-NC 10A 120V |
328 |
|
规格书 |
A22NN | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button, Flush | No Marking | Yellow | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
UB15SKG035C-CBSWITCH PUSH SPDT 0.4VA 28V |
7 |
|
规格书 |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red (White Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB15SKG035C-JCSWITCH PUSH SPDT 0.4VA 28V |
110 |
|
规格书 |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

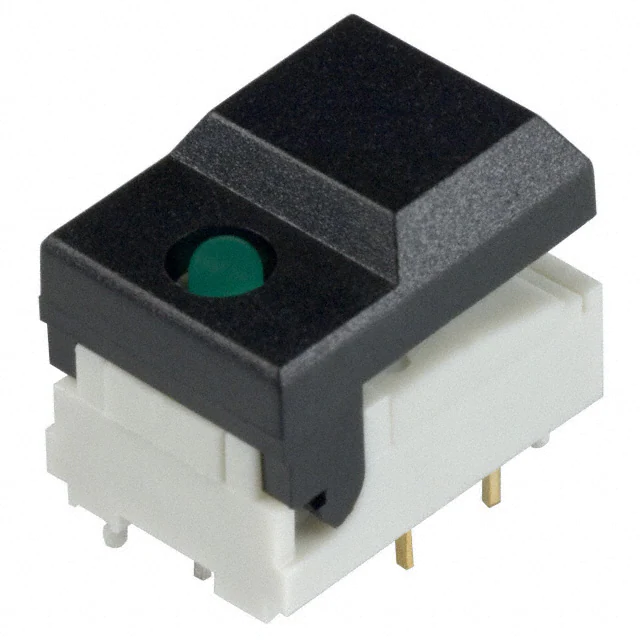

SERL BK GN AU EESWITCH PUSH SPDT 0.01A 24V |
446 |
|
规格书 |
DIGITAST | Tray | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
AV1610P312R04SWITCH PUSHBUTTON SPDT 2A |
152 |
|
规格书 |
AV16 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | Power Symbol | Silver | LED, Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
UB15SKG035F-JFSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
规格书 |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

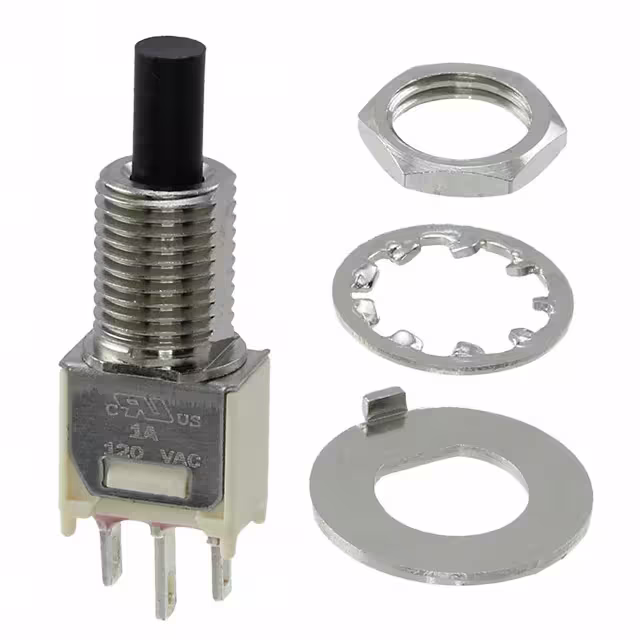

TP12LTZQESWITCH PUSHBUTTON SPDT 1A 120V |
194 |
|
规格书 |
TP | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
3832510MGSWITCH PUSHBUTTON SPDT 16A 250V |
242 |
|
规格书 |
380 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 16A (AC) | 250 V | - | Round, Button | No Marking | Green | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 12.70mm Dia | - |
|
3832510MRSWITCH PUSHBUTTON SPDT 16A 250V |
204 |
|
规格书 |
380 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 16A (AC) | 250 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 12.70mm Dia | - |
