按钮开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 执行器标记 | 颜色 - 执行器/帽 | 照明类型，颜色 | 照明电压（额定值） | 端接样式 | 防护等级 | 特性 | 面板开孔尺寸 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AVP22MS04FE0DT5A04SWITCH PUSHBUTTON SPST-NO 1A 24V |
2 |
|
规格书 |
AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 65°C |
|
AML22CBF2AASWITCH PUSHBUTTON SPDT 3A 125V |
109 |
|
规格书 |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|

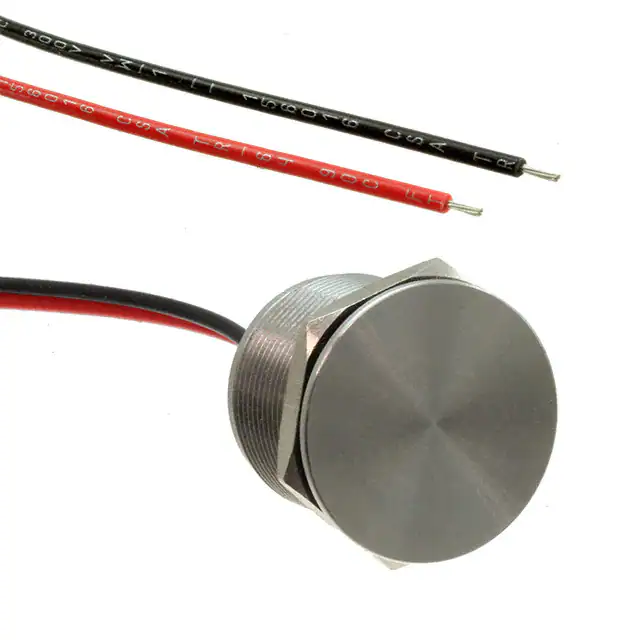

MPZ022/FSWITCH PUSHBUTTON SPST-NO 1A 24V |
54 |
|
规格书 |
MPZ | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | - | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 85°C |
|
1241.3312SWITCH PUSHBUTTON |
100 |
|
规格书 |
- | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
1241.3260SWITCH PUSH SPST-NO 100MA 42V |
53 |
|
规格书 |
PSE | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Connector | IP67 - Dust Tight, Waterproof | - | Circular - 22.10mm Dia | -40°C ~ 85°C |
|
PN1L-M2AFB002E0W30MM PIEZO RING 24VDC WHITE |
38 |
|
规格书 |
PN1L | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 75°C |
|
A165L-AWM-T1-2SWITCH PUSHBUTTON DPDT 5A 125V |
60 |
|
规格书 |
A16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 5A (AC) | 125 V | - | Square, Button | No Marking | White | LED, White | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Oil and Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
50070974-002-01OPERATOR CONTROLS-VEHICLE SWITCH |
64 |
|
规格书 |
87940 | Bulk | Active | Panel Mount, Rear | Standard | DPST-NO/NC | On-Off, Off-On | 10A (DC) | - | 24 V | Round, Button, Mushroom | - | Black | - | - | Screw Terminal | - | - | - | -40°C ~ 40°C |
|
AML22CBX2ACSWITCH PUSHBUTTON DPDT 3A 125V |
64 |
|
规格书 |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|

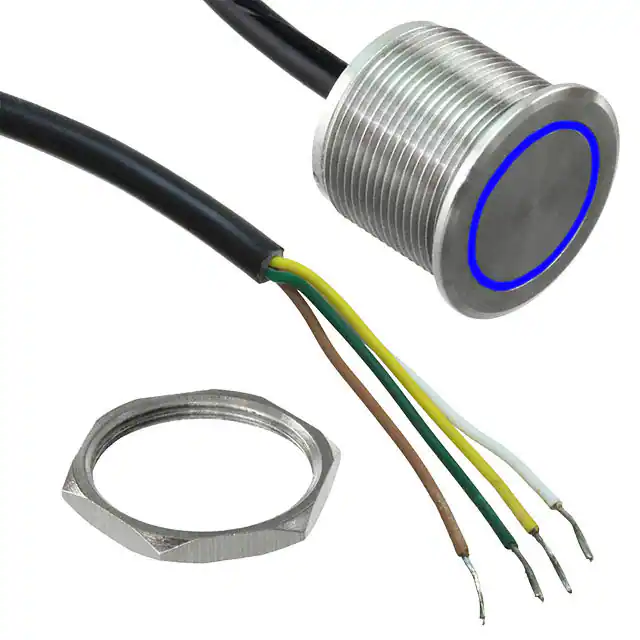

MPZI019/F/BL/24SWITCH PUSHBUTTON SPST-NO 1A 24V |
44 |
|
规格书 |
MPZ | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VAC/DC | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
AML22CBM2ACSWITCH PUSHBUTTON DPDT 3A 125V |
100 |
|
规格书 |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
|
AV22PNA44SWITCH PUSHBUTTON SPDT 5A 250V |
28 |
|
规格书 |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Mushroom | No Marking | Gray | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Sealed - Fully | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
1241.2446SWITCH PSE 30SNAE-RIRTRT24-IV-L |
100 |
|
- |
- | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
13440AD2G25X1156SWITCH PUSHBUTTON DPDT 4A 125V |
49 |
|
规格书 |
13000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | - | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
PS-22I05SWITCH PUSHBUTTON |
4,964 |
|
规格书 |
PS, COMAX | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | - | - | -20°C ~ 70°C |
|
|
MPBS-22H01-F14SWITCH PUSHBUTTON 2-POLE MOM-ON |
523 |
|
规格书 |
MPB | Box | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
MPBS22H01L-F14SWITCH PUSHBUTTON 2-POLE ON - ON |
517 |
|
规格书 |
MPB | Box | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
50-0120-00J977-8 MINI FLAT PAK SWITCH W/ S |
4,994 |
|
规格书 |
- | Box | Active | Through Hole, Right Angle | Standard | SPDT | On-On-Off | 1A (DC) | - | 30 V | Round, Plunger | - | Blue | - | - | PC Pin | - | - | - | - |
|
|
50-0119-00J977-8 MINI FLAT PAK SWITCH W/ B |
4,991 |
|
规格书 |
- | Box | Active | Through Hole | Standard | SPDT | On-On-Off | 1A (DC) | - | 30 V | Round, Plunger | - | Blue | - | - | PC Pin | - | - | - | - |
|
|
MPBS-42H01-F14SWITCH PUSHBUTTON 4-POLE MOM-ON |
687 |
|
规格书 |
MPB | Box | Active | Through Hole, Right Angle | Standard | 4PDT | On-Mom | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
