直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM6G-1224SNZDC DC CONVERTER 24V 6W |
0 |
|
规格书 |
AM6G-NZ (6W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 250mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 84% | - | - | Through Hole | 8-SIP | - | - | - |
|
|
AM250HB-11048SA30JZ-K-BDC DC CONVERTER 48V 250W |
0 |
|
规格书 |
AM250HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 40V | 160V | 48V | - | - | - | 5.2A | 250 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 90% | - | - | Through Hole | Half Brick | - | - | - |
|
|
AM150HB-11048SA30JZ-K-BDC DC CONVERTER 48V 150W |
0 |
|
规格书 |
AM150HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 43V | 160V | 48V | - | - | - | 3.12A | 150 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 88% | - | - | Through Hole | Half Brick | - | - | - |
|
|
AM10CW-480524DVZDC DC CONVERTER 5V 24V 10W |
0 |
|
规格书 |
AM10CW-VZ | 7-DIP Module | Obsolete | Isolated Module | 2 | 18V | 75V | 5 ~ 24V | 24V | - | - | 1A, 209mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - | |
|
|
AM6GH-2412SNZDC DC CONVERTER 12V 6W |
0 |
|
规格书 |
AM6GH-NZ (6W) | 8-SIP Module | Obsolete | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 500mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 86% | - | - | Through Hole | 8-SIP | - | - | - | |
|

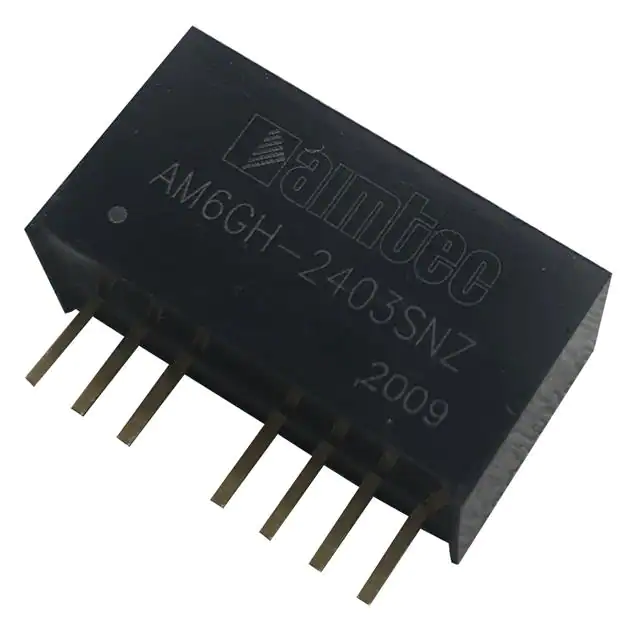

AM6GH-2403SNZDC DC CONVERTER 3.3V 4.5W |
0 |
|
规格书 |
AM6GH-NZ (6W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.35A | 4.45 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 78% | - | - | Through Hole | 8-SIP | - | - | - |
|
|
AM6G-2405SNZDC DC CONVERTER 5V 6W |
0 |
|
规格书 |
AM6G-NZ (6W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 82% | - | - | Through Hole | 8-SIP | - | - | - |
|
|
AM6GH-2405SNZDC DC CONVERTER 5V 6W |
0 |
|
规格书 |
AM6GH-NZ (6W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 82% | - | - | Through Hole | 8-SIP | - | - | - |
|
|
AM250HB-11054SA30JZ-K-BDC DC CONVERTER 54V 250W |
0 |
|
规格书 |
AM250HB-JZ | Half Brick | Box | Active | Isolated Module | 1 | 40V | 160V | 54V | - | - | - | 4.63A | 250 W | 3 kV | Industrial, Railway | Adjustable Output, Heatsink, Remote On/Off, Remote Sense | -40°C ~ 105°C | 90% | - | - | Through Hole | Half Brick | - | - | - |
|
|
0RQB-50Y24FGDC-DC 24-110V IN 24V 2.1A OUT 50 |
0 |
|
规格书 |
0RQB-50Y24x (50W) | Quarter Brick | Tray | Active | Isolated Module, Conformal Coated | 1 | 14.4V | 154V | 24V | - | - | - | 2.1A | 50 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CSA, UL | 62368-1 |
|
|
0RQB-50Y05FGDC-DC 24-110V IN 5V 10A OUT 50W |
0 |
|
规格书 |
0RQB-50Y05x (50W) | Quarter Brick | Tray | Active | Isolated Module, Conformal Coated | 1 | 14.4V | 154V | 5V | - | - | - | 10A | 50 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 88% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CSA, UL | 62368-1 |
|
|
0RQB-50Y12EGDC-DC 24-110V IN 12V 4.2A OUT 50 |
0 |
|
规格书 |
0RQB-50Y12x (50W) | Quarter Brick | Tray | Active | Isolated Module, Conformal Coated | 1 | 14.4V | 154V | 12V | - | - | - | 4.2A | 50 W | 3 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | Quarter Brick | Enable, Active High | CSA, UL | 62368-1 |
|
|
PKB4111DPIHSDC DC CONVERTER 3.3V 132W |
0 |
|
规格书 |
PKB4000D (200W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 40A | 132 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 91% | - | - | Through Hole | Eighth Brick | - | cURus, IEC, UL | 62368-1 |
|
|
PKB4110CPIHSDC DC CONVERTER 5V 150W |
0 |
|
规格书 |
- | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 30A | 150 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 94.7% | - | - | Through Hole | Eighth Brick | - | cURus, IEC, UL | 62368-1 |
|
DCV010515PDC DC CONVERTER 15V 1W |
0 |
|
规格书 |
DCV01 (1W) | 14-DIP (0.300", 7.62mm), 7 Leads | Bulk | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | 7-PDIP | Enable, Active High | - | - |
|

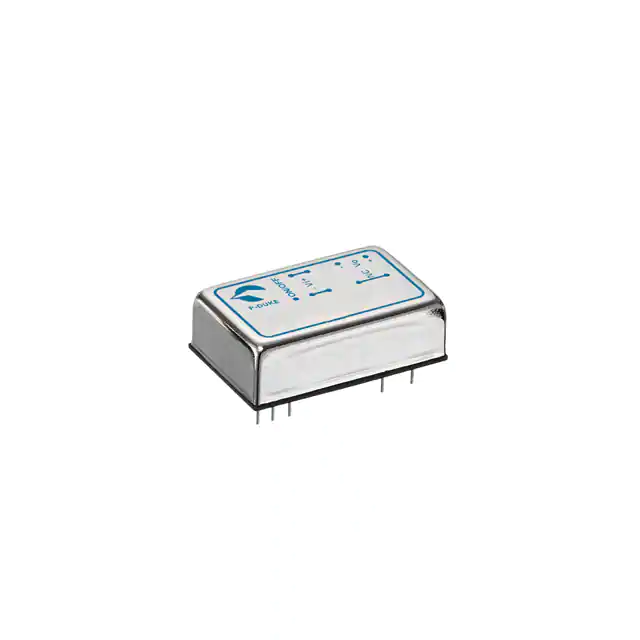

FKC08-48S33DC DC CONVERTER 3.3V 6.6W |
0 |
|
规格书 |
FKC08 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 2A | 6.6 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 80% | - | - | Through Hole | - | Enable, Active High | CB, CE, cURus | - |
|
|
FKC08-24S12DC DC CONVERTER 12V 8W |
0 |
|
规格书 |
FKC08 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 666mA | 8 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | - | Enable, Active High | CB, CE, cURus | - |
|

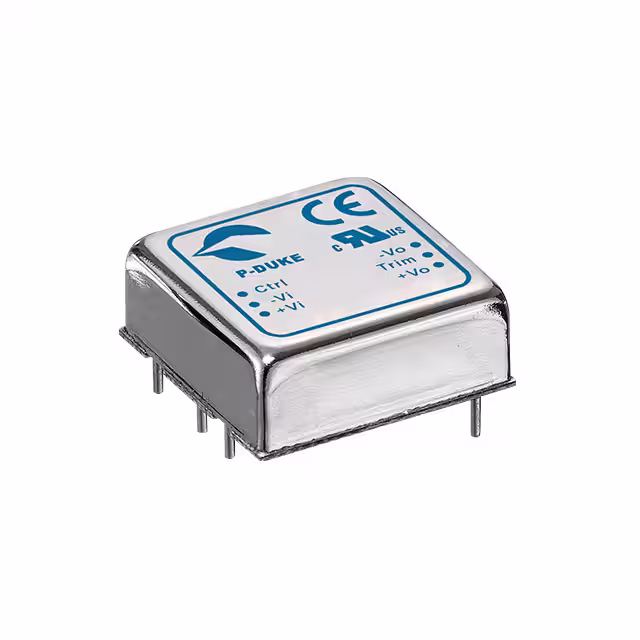

LCD20-24D12DC DC CONVERTER +/-12V 20W |
0 |
|
规格书 |
LCD20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 101°C (With Derating) | 90% | - | - | Through Hole | - | Enable, Active Low | CB, CE, cURus | - |
|
|
FKC08-48S12DC DC CONVERTER 12V 8W |
0 |
|
规格书 |
FKC08 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 666mA | 8 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | - | Enable, Active High | CB, CE, cURus | - |
|

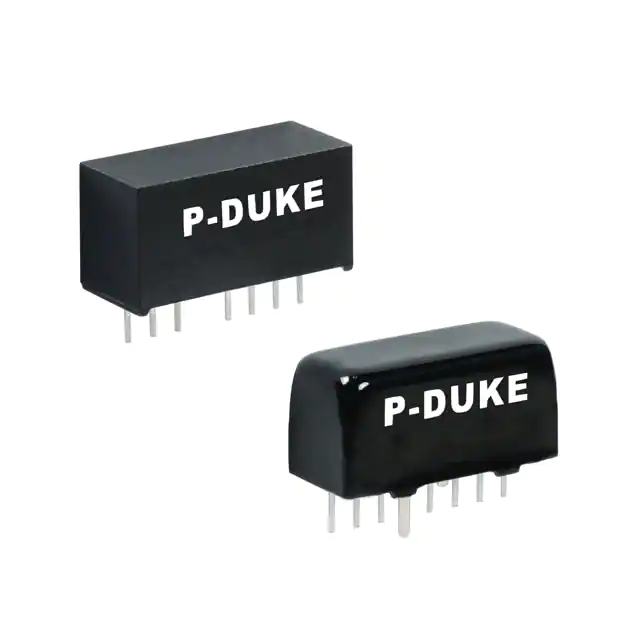

PDL06-24D15DC DC CONVERTER +/-15V 6W |
0 |
|
规格书 |
PDL06 (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 90°C (With Derating) | 85% | - | - | Through Hole | - | - | CB, CE, cURus | - |
