直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R2S-2415/HPDC DC CONVERTER 15V 2W |
195 |
|
规格书 |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 133mA | 2 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | - | - | - | - |
|
DCP011515DBPDC DC CONVERTER +/-15V 1W |
308 |
|
规格书 |
DCP01B (1W) | 14-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | 7-PDIP | Enable, Active High | - | - |
|
DCP011512DBPDC DC CONVERTER +/-12V 1W |
231 |
|
规格书 |
DCP01B (1W) | 14-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated Module | 2 | 13.5V | 16.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 78% | - | - | Through Hole | 7-PDIP | Enable, Active High | - | - |
|
NID100-12DC DC CONVERTER 12V 90W |
239 |
|
规格书 |
NID100 (100W) | 13-SIP Module | Box | Active | Non-Isolated PoL Module | 1 | 20V | 53V | 12V | - | - | - | 7.5A | 90 W | - | ITE (Commercial) | Remote On/Off | -30°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | - | - | CE, EAC | - |
|
AG5712-LPBDC DC CONVERTER 12V 30W |
382 |
|
规格书 |
Ag5700 | - | Tray | Active | Isolated PoE (Power over Ethernet) Module | 1 | 40V | 57V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88.5% | - | - | Surface Mount | - | - | - | - |
|
RS3-2415DDC DC CONVERTER +/-15V 3W |
833 |
|
规格书 |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 83% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
RS3-2412DDC DC CONVERTER +/-12V 3W |
302 |
|
规格书 |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 83% | - | - | Through Hole | - | Enable, Active Low | - | - |
|

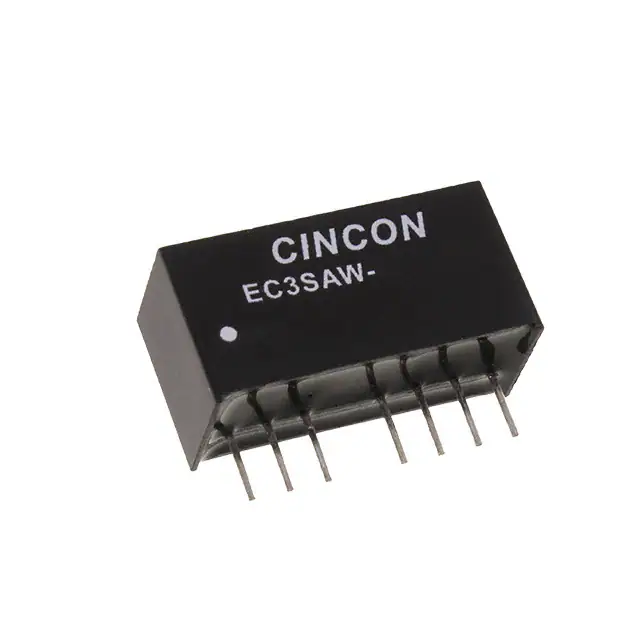

EC3SAW-24S12PDC DC CONVERTER 12V 3W |
182 |
|
规格书 |
EC3SAW (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | Enable, Active High | CE | 60950-1 |
|
SCW12B-05DC DC CONVERTER 5V 12W |
1,225 |
|
规格书 |
SCW12 (12W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2.4A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -25°C ~ 71°C (With Derating) | 83% | - | - | Through Hole | - | Enable, Active High | - | - |
|
MGJ6D242005DCDC DC CONVERTER 20V -5V 6W |
231 |
|
规格书 |
MGJ6 (6W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 36V | 20V | -5V | - | - | 240mA, 240mA | 6 W | 5.2 kV | ITE (Commercial), Medical | SCP, UVLO | -40°C ~ 105°C | 82% | - | - | Through Hole | - | - | - | - |
|
|
DCP021212DPDC DC CONVERTER +/-12V 2W |
153 |
|
规格书 |
DCP02 (2W) | 14-DIP (0.300", 7.62mm), 7 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | OTP | -40°C ~ 85°C | 88% | - | - | Through Hole | 7-PDIP | - | - | - |
|
NDTS0505CDC DC CONVERTER 5V 3W |
579 |
|
规格书 |
NDTS (3W) | 24-DIP Module (600 mil, 8 Leads) | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 71% | - | - | Through Hole | - | - | - | - |
|
DCP010515BP-UDC DC CONVERTER 15V 1W |
663 |
|
规格书 |
DCP01B (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 67mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 82% | - | - | Surface Mount | - | Enable, Active High | - | - |
|
|
DCP010515DBP-UDC DC CONVERTER +/-15V 1W |
343 |
|
规格书 |
DCP01B (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 33mA, 33mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 85% | - | - | Surface Mount | - | Enable, Active High | - | - |
|
|
DCP010505BP-UDC DC CONVERTER 5V 1W |
286 |
|
规格书 |
DCP01B (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 80% | - | - | Surface Mount | - | Enable, Active High | - | - |
|
|
DCP010512DBP-UDC DC CONVERTER +/-12V 1W |
140 |
|
规格书 |
DCP01B (1W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 100°C | 82% | - | - | Surface Mount | - | Enable, Active High | - | - |
|
PTN78000HAHDC DC CONVERTER 11.85-22V |
833 |
|
规格书 |
PTN78000H | 5-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 15V | 36V | 11.85 ~ 22V | - | - | - | 1.5A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 94% | - | - | Through Hole | - | - | - | - |
|

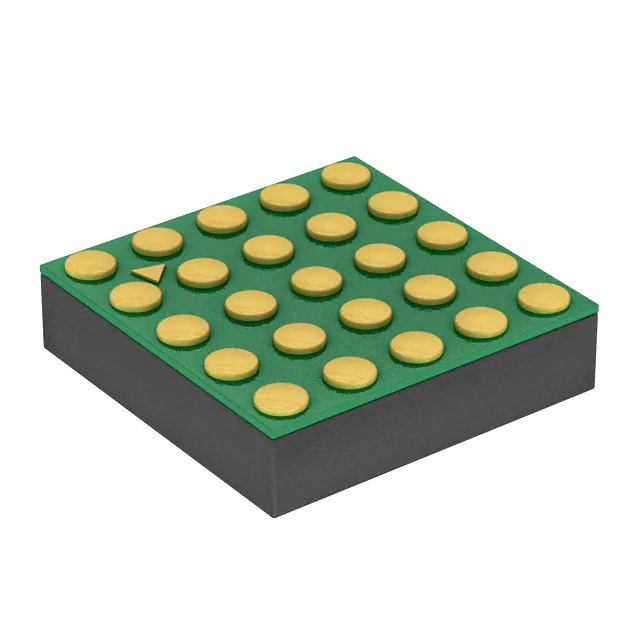

LTM4622AEV#PBFDC DC CONVERTER 1.5-12V 1.5-12V |
781 |
|
规格书 |
µModule® | 25-PowerLGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 3.6V | 20V | 1.5 ~ 12V | 1.5 ~ 12V | - | - | 2A, 2A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 25-LGA (6.25x6.25) | - | - | - |
|
LTM8078IY#PBFDUAL 40VIN, 3A SILENT SWITCR UMO |
742 |
|
规格书 |
LTM®, uModule® | 49-FBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 3V | 40V | 3.3V | 5V | - | - | 1.4A, 1.4A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 49-BGA (6.25x6.25) | - | - | - |
|
PTH05050WAHDC DC CONVERTER 0.8-3.6V 6A |
349 |
|
规格书 |
PTH05050W | 6-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | - | - | - | - |
