直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

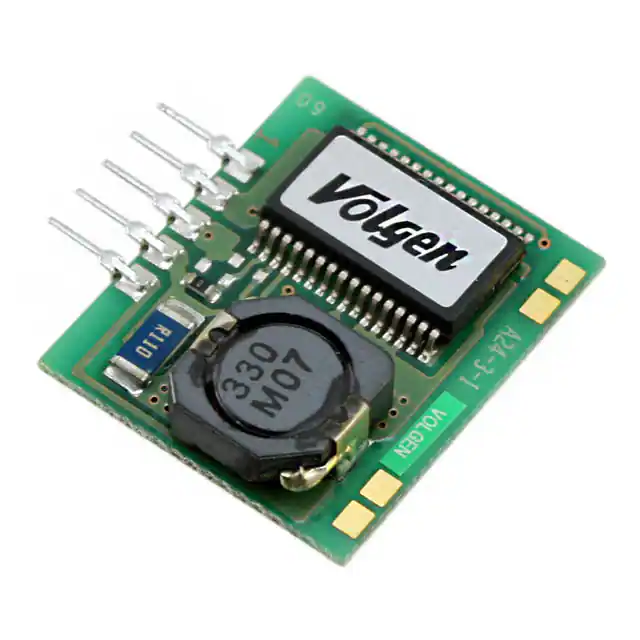

VSA24-12S0R6DC DC CONVERTER 12V 6.5W Volgen + Furuno |
0 |
|
规格书 |
VSA (5W) | 5-SIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 18V | 36V | 12V | - | - | - | 550mA | 6.5 W | - | ITE (Commercial) | - | -20°C ~ 70°C | 88% | - | - | Through Hole | - | - | - | - |
|
MT5-4805SIDC DC CONVERTER 5.1V 5W Volgen + Furuno |
0 |
|
规格书 |
MT5 (5W) | 14-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 75V | 5.1V | - | - | - | 1A | 5 W | 1.5 kV | ITE (Commercial) | - | -25°C ~ 71°C | 83% | - | - | Through Hole | - | - | - | - |
|

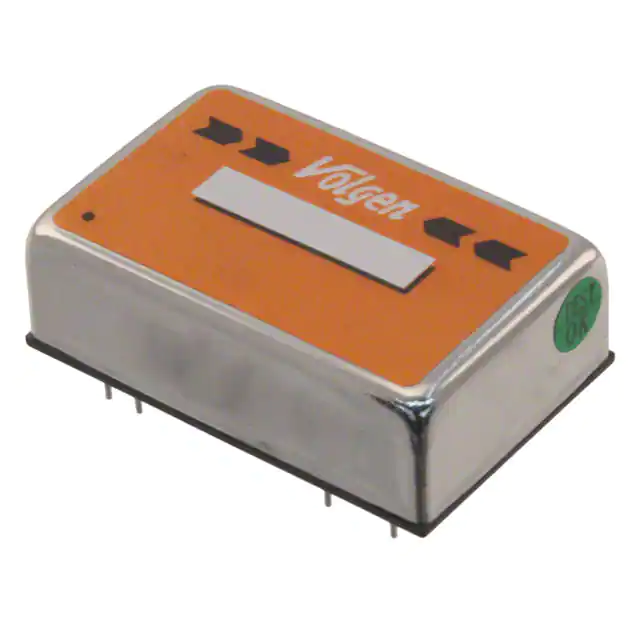

MT5A-2405SI-W5W 24V INPUT 5V OUTPUT DC/DC Volgen + Furuno |
0 |
|
- |
MT5A (5W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1A | 5 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - |
|
|
MT5A-2412SI-WDC DC CONVERTER 12V 5W Volgen + Furuno |
0 |
|
- |
MT5A (5W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 470mA | 5 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | - | - |
|
|
MT5A-4805SI-WDC DC CONVERTER 5V 5W Volgen + Furuno |
0 |
|
- |
MT5A (5W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 1A | 5 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - |
|
|
MT5A-4812SI-WDC DC CONVERTER 12V 5W Volgen + Furuno |
0 |
|
- |
MT5A (5W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 470mA | 5 W | 1.6 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - |
|
|
MSS15-2412DC DC CONVERTER 12V 15W Volgen + Furuno |
0 |
|
规格书 |
MS (15W) | 5-DIP Module | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | - | -20°C ~ 60°C | 86% | - | - | Through Hole | - | - | IEC | 60950-1 |
|
|
MSD15-2412DC DC CONVERTER +/-12V 15W Volgen + Furuno |
0 |
|
规格书 |
MS (15W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 600mA, 600mA | 15 W | 1.5 kV | ITE (Commercial) | - | -25°C ~ 71°C | - | - | - | Through Hole | - | - | IEC | 60950-1 |
|
|
MSD15-2415DC DC CONVERTER +/-15V 15W Volgen + Furuno |
0 |
|
规格书 |
MS (15W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | - | -25°C ~ 71°C | - | - | - | Through Hole | - | - | IEC | 60950-1 |
|
|
MSD15-4812DC DC CONVERTER +/-12V 15W Volgen + Furuno |
0 |
|
规格书 |
MS (15W) | 6-DIP Module | Tube | Obsolete | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 600mA, 600mA | 15 W | 1.5 kV | ITE (Commercial) | - | -25°C ~ 71°C | - | - | - | Through Hole | - | - | IEC | 60950-1 |
