直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D050505NS-1WR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
597 |
|
规格书 |
D050505NS-1WR3 (1W) | 7-SIP Module, 6 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 5.5V | 5V | 5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 85% | - | - | Through Hole | - | - | - | 62368-1 |
|

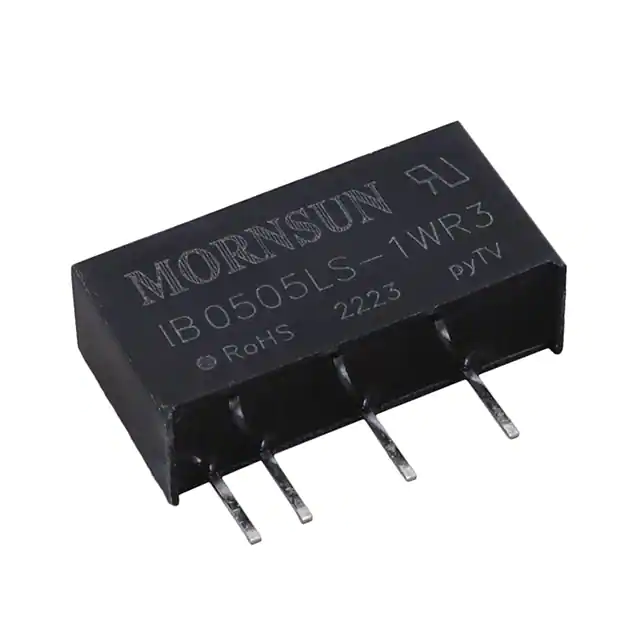

IB0505LS-1WR3DC DC CONVERTER 5V 1W Mornsun America, LLC |
832 |
|
规格书 |
IB05_LS-1WR3 | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 70% | - | - | Through Hole | - | - | CB, CE, cURus, UKCA | 62368-1 |
|
B1524S-1WR3DC DC CONVERTER 24V 1W Mornsun America, LLC |
191 |
|
规格书 |
B_S-1WR3 (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | - | - | CB, CE, cURus, UKCA, UL | 62368-1 |
|
|
B0505LM-1WR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
181 |
|
规格书 |
B05_LM-1WR3 (1W) | 6-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 74% | - | - | Through Hole | - | - | - | - |
|

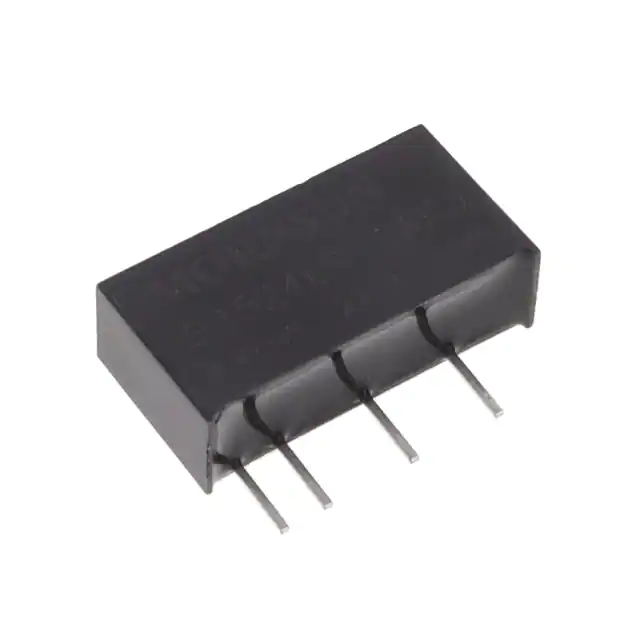

B1524LS-1WR3DC DC CONVERTER 24V 1W Mornsun America, LLC |
250 |
|
规格书 |
B1524LS-1WR3 (1W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.5V | 16.5V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 81% | - | - | Through Hole | - | - | CB, CE, cURus, UKCA, UL | 62368-1 |
|
|
IF1215S-1WR3DC-DC ISOLATED 1 W 11.4~12.6V Mornsun America, LLC |
581 |
|
规格书 |
IF_S-1WR3 | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 11.4V | 12.6V | 15V | - | - | - | 67mA | 1 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 75% | - | - | Through Hole | - | - | CB, CE, cURus, UL | 62368-1 |
|
B0305S-1WR3DC DC CONVERTER 5V 1W Mornsun America, LLC |
9,960 |
|
规格书 |
B0305S-1WR3 (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - |
|
B0303S-1WR3DC DC CONVERTER 3.3V 1W Mornsun America, LLC |
520 |
|
规格书 |
B0303S-1WR3 (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 3.3V | - | - | - | 303mA | 999 mW | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 79% | - | - | Through Hole | - | - | - | - |
|
B0324S-1WR3DC DC CONVERTER 24V 1W Mornsun America, LLC |
259 |
|
规格书 |
B0324S-1WR3 (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 84% | - | - | Through Hole | - | - | - | - |
|
B0315S-1WR3DC DC CONVERTER 15V 1W Mornsun America, LLC |
228 |
|
规格书 |
B0315S-1WR3 (1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 2.97V | 3.63V | 15V | - | - | - | 67mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - |
