直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

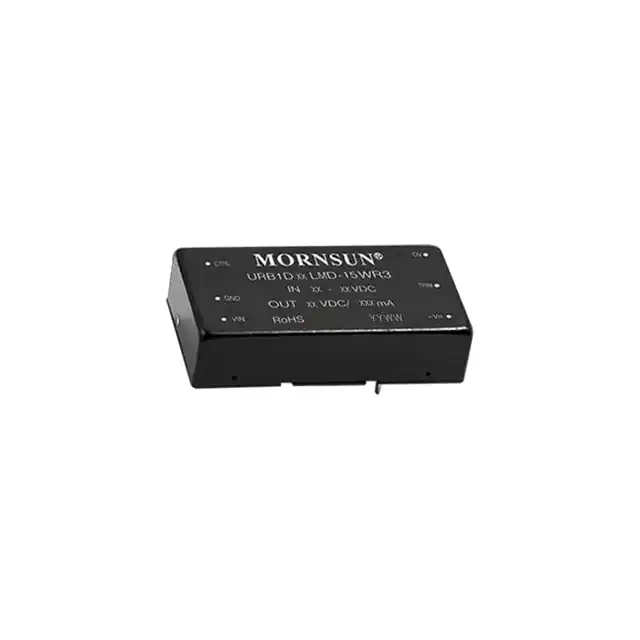

URB1D03LMD-15WR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
1 |
|
规格书 |
URB1D_LMD-15WR3 (15W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 3.3V | - | - | - | 4A | 13 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 |
|

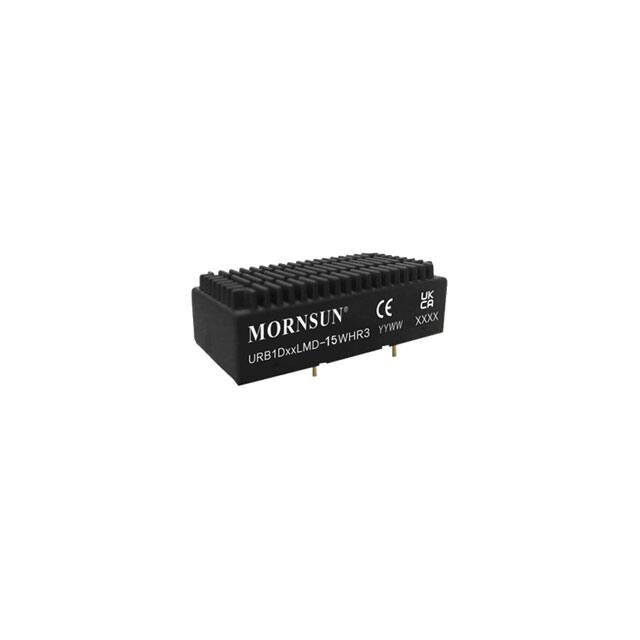

URB1D12LMD-15WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
1 |
|
规格书 |
URB1D_LMD-15WR3 (15W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 12V | - | - | - | 1.25A | 15 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 |
|
|
URB1D15LMD-15WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
1 |
|
规格书 |
URB1D_LMD-15WR3 (15W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 15V | - | - | - | 1A | 15 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 |
|
|
URB1D24LMD-15WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
1 |
|
规格书 |
URB1D_LMD-15WR3 (15W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 24V | - | - | - | 625mA | 15 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 |
|
|
URB1D05LMD-15WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
1 |
|
规格书 |
URB1D_LMD-15WR3 (15W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 5V | - | - | - | 3A | 15 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Heat Sink, Remote On/Off | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 |
|
|
URB1D24LMD-15WR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
1 |
|
规格书 |
URB1D_LMD-15WR3 (15W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 40V | 160V | 24V | - | - | - | 625mA | 15 W | 2.25 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | CB, CE, cURus, EN, IEC, UKCA, UL | 60950-1; 62368-1 |
|
VRB4815LD-50WR3DC DC CONVERTER,50W,15VDC Mornsun America, LLC |
3 |
|
规格书 |
VRB_LD-50WR3 (50W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 3.333A | 50 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | - | - | CE | - |
|
|
VRB2405LD-50WR3DC DC CONVERTER,50W,5VDC Mornsun America, LLC |
0 |
|
规格书 |
VRB_LD-50WR3 (50W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | - | - | CE | - |
|
|
VRB4824LD-50WR3DC DC CONVERTER,50W,24VDC Mornsun America, LLC |
0 |
|
规格书 |
VRB_LD-50WR3 (50W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 2.083A | 50 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | - | - | - | - |
|
|
VRB2403LD-50WR3DC DC CONVERTER,50W,3.3VDC Mornsun America, LLC |
0 |
|
规格书 |
VRB_LD-50WR3 (50W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 10A | 33 W | 1.5 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | - | - | CE | - |
