直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

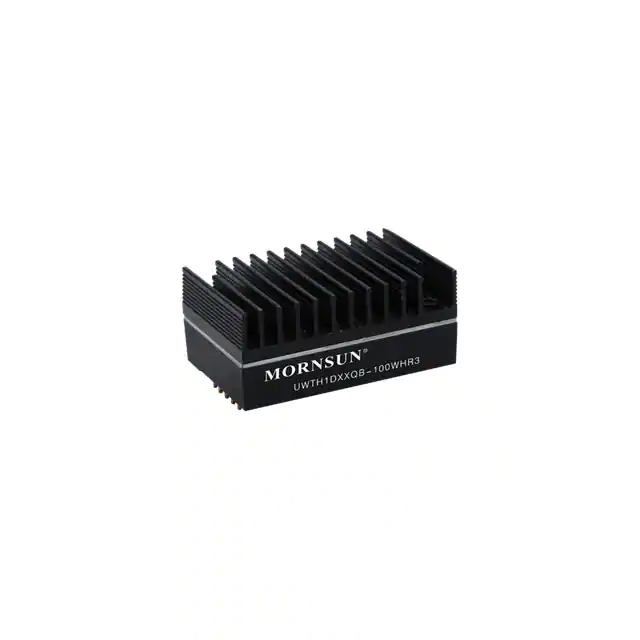

UWTH1D54QB-100WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
20 |
|
规格书 |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 54V | - | - | - | 1.85A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D12QB-100WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
15 |
|
规格书 |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 8.33A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D28QB-100WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
13 |
|
规格书 |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 28V | - | - | - | 3.57A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D24QB-100WHR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
12 |
|
规格书 |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 4.16A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|

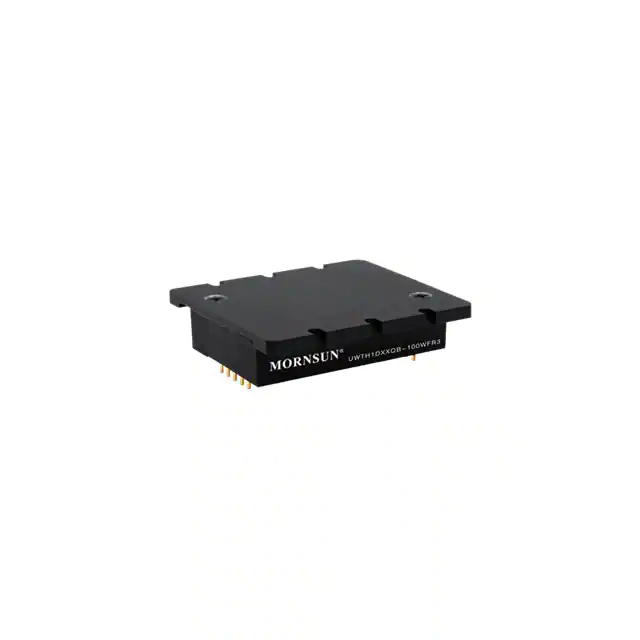

UWTH1D24QB-100WFR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
16 |
|
规格书 |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 24V | - | - | - | 4.16A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D28QB-100WFR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
16 |
|
规格书 |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 28V | - | - | - | 3.57A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D12QB-100WFR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
16 |
|
规格书 |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 12V | - | - | - | 8.33A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D15QB-100WFR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
16 |
|
规格书 |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 15V | - | - | - | 6.67A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D54QB-100WFR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
16 |
|
规格书 |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 54V | - | - | - | 1.85A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
|
|
UWTH1D48QB-100WFR3ISOLATED MODULE DC DC CONVERTER Mornsun America, LLC |
14 |
|
规格书 |
UWTH1D_QB-100W(H/F)R3 (100W) | Quarter Brick | Bulk | Not For New Designs | Isolated Module | 1 | 14V | 160V | 48V | - | - | - | 2.08A | 100 W | 3 kV | ITE (Commercial), Railway | Heat Sink | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | Quarter Brick | - | CB, CE, cCSAus, EN, IEC, UKCA | 62368-1 |
