接头、耦合器和分配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 连接方式 | 适用范围/相关产品 | 特性 | 工作压力 | 工作温度 | 螺纹尺寸 | 安装类型 | 材质 | 颜色 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QS-1/8-8-IPUSH-IN FITTING |
14 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
NPFC-E2-2G14-FMEXTENSION |
12 |
|
规格书 |
- | Bulk | Active | Straight Fitting | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-1/4-1/4-I-U-MPUSH-IN FITTING |
21 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/4" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | R1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-1/4-8-IPUSH-IN FITTING |
9 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-G1/4-6-IPUSH-IN FITTING |
6 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QBL-1/8-5/32-UPUSH-IN L-FITTING |
17 |
|
规格书 |
QB | Bulk | Active | Elbow Fitting | Push-In to Threaded | 5/32" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT1/8-27 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

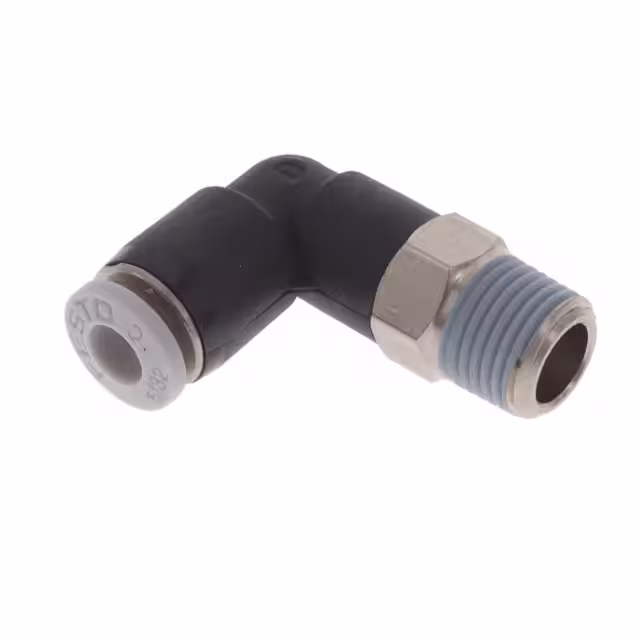

QBL-1/8-5/32-U-MPUSH-IN L-FITTING |
6 |
|
规格书 |
QB | Bulk | Active | Elbow Fitting | Push-In to Threaded | 5/32" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT1/8-27 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QSML-1/8-6PUSH-IN L-FITTING |
13 |
|
规格书 |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/8 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
|
QS-M5-1/4-I-U-MPUSH-IN FITTING |
1 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/4" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | M5 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-1/8-10PUSH-IN FITTING |
17 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 10mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-G3/8-8PUSH-IN FITTING |
7 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-G1/4-8-IPUSH-IN FITTING |
5 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

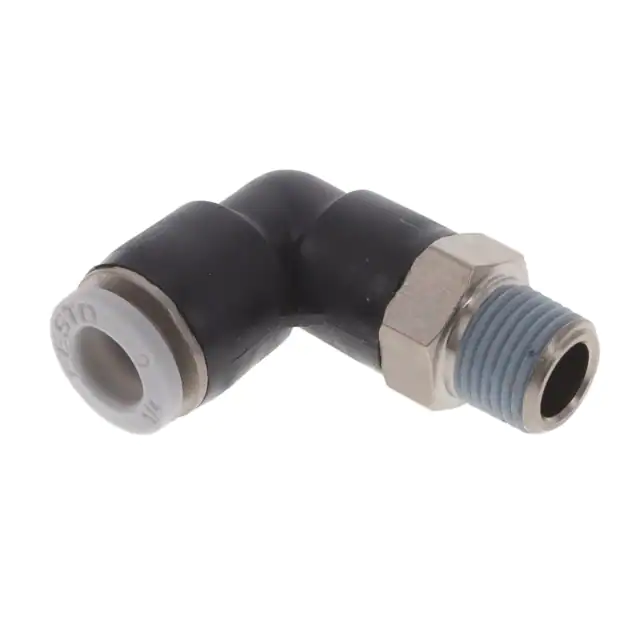

QBL-1/8-1/4-U-MPUSH-IN L-FITTING |
11 |
|
规格书 |
QB | Bulk | Active | Elbow Fitting | Push-In to Threaded | 1/4" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT1/8-27 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

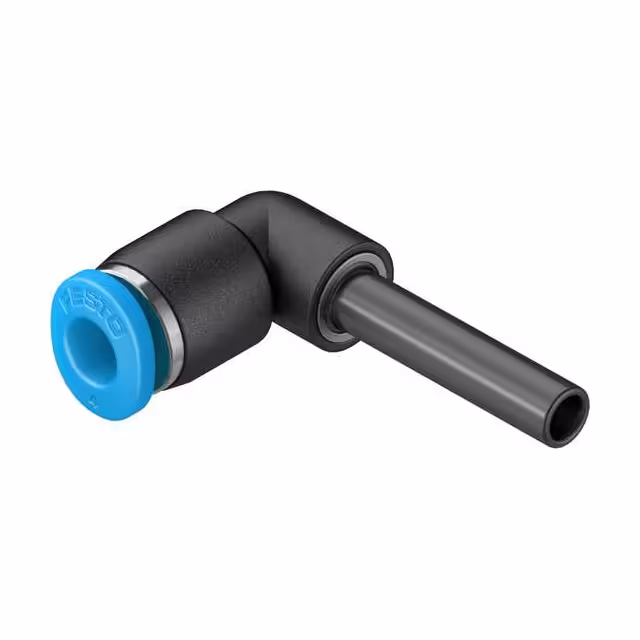

QSML-4HPUSH-IN L-CONNECTOR |
11 |
|
规格书 |
QS | Bulk | Active | Elbow Fitting | Push-In to Sleeve | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QBML-10-32-UNF-1/8-UPUSH-IN L-FITTING |
0 |
|
规格书 |
QB | Bulk | Active | Elbow Fitting | Push-In to Threaded | 1/8" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | UNF10-32 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

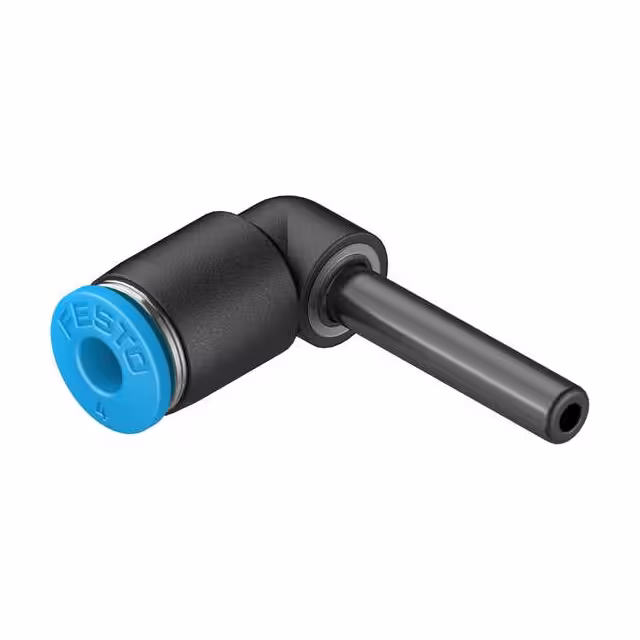

QSL-4HPUSH-IN L-CONNECTOR |
24 |
|
规格书 |
QS | Bulk | Active | Elbow Fitting | Push-In to Sleeve | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QSL-G1/8-4PUSH-IN L-FITTING |
12 |
|
规格书 |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/8 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QSM-4PUSH-IN CONNECTOR |
10 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

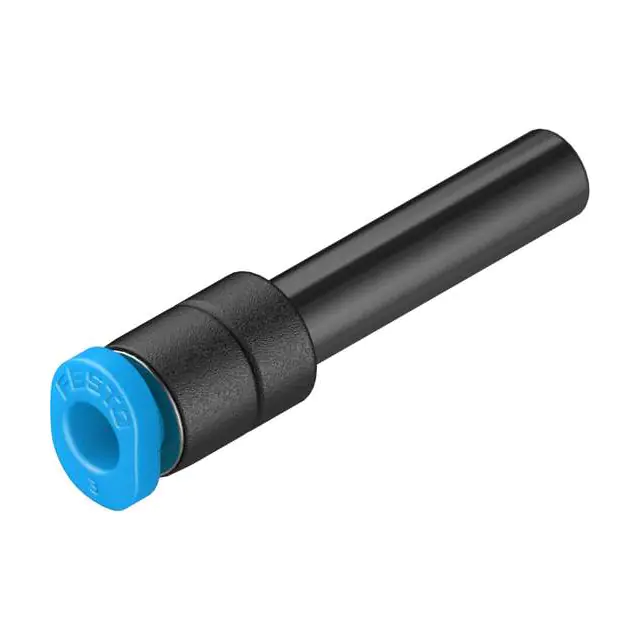

QSM-4H-3PUSH-IN CONNECTOR |
10 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Sleeve | 3mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

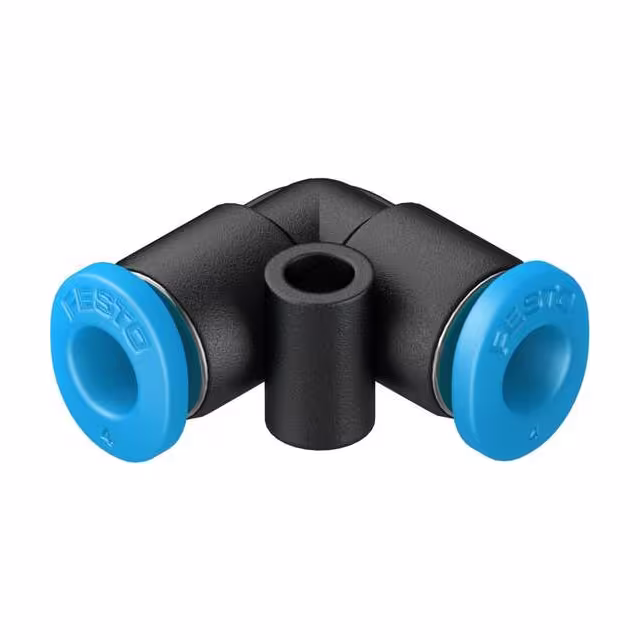

QSML-4PUSH-IN L-CONNECTOR |
9 |
|
规格书 |
QS | Bulk | Active | Elbow Fitting | Push-In | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
