计数器、计时器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 工作模式 | 计数速率 | 时间格式 | 每行字符数量 | 显示类型 | 显示字符 - 高度 | 输入类型 | 输出类型 | 电压 - 电源 | 复位 | 面板开孔尺寸 | 安装类型 | 端接样式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

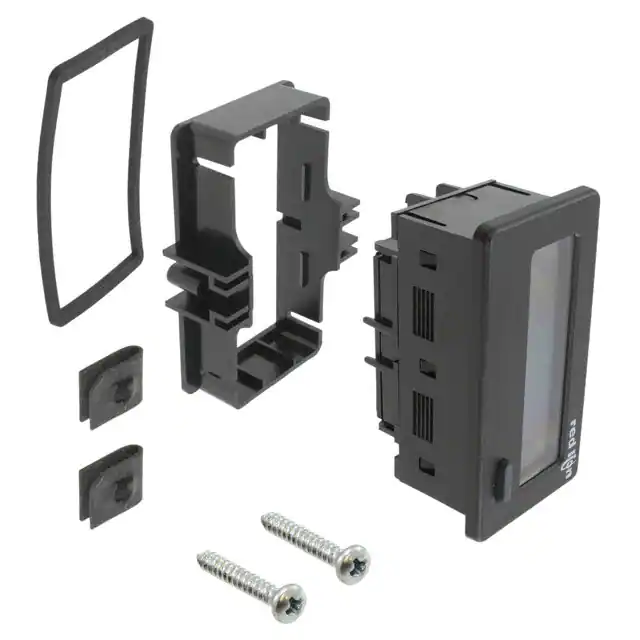

CUB4L020COUNTER LCD 6 CHAR 3.6V PANEL MT Red Lion Controls |
4 |
|
规格书 |
CUB4 | Box | Active | Totalizer | Up | 50Hz, 5kHz | - | 6 | LCD - Red Characters, Backlight | 0.480" (12.20mm) | No Voltage, Voltage | - | Battery, 3.6VDC, 6 ~ 26VDC (Backlight) | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

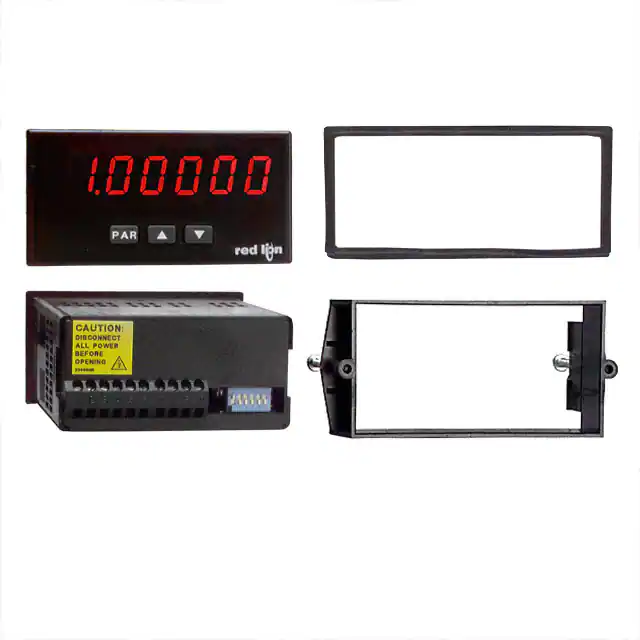

PAXLC600COUNTER LED 6 CHAR 115/230V PNL Red Lion Controls |
3 |
|
规格书 |
PAX®LITE | Bulk | Active | Totalizer | Up, Down | 25kHz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage | - | 115/230VAC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

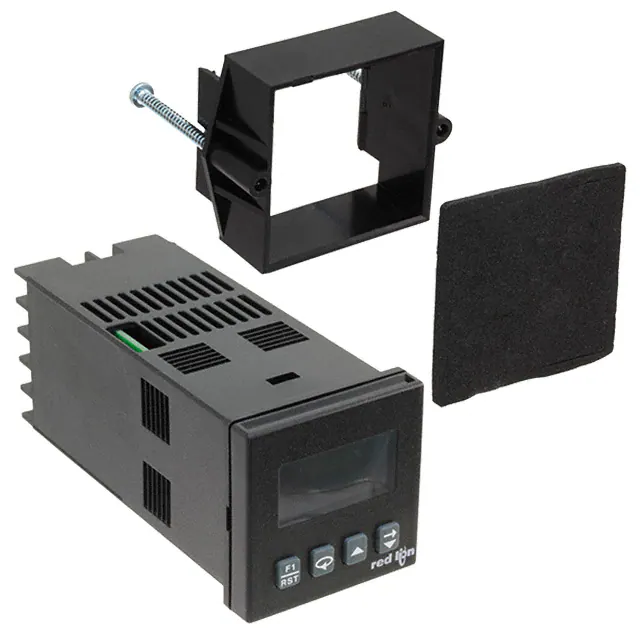

C48CS013COUNTER LCD 6 CHAR 24V PANEL MT Red Lion Controls |
3 |
|
规格书 |
C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Black Characters | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay, Solid State | 24VAC, 18 ~ 36VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXR0030TACHOMETER LED 5 CHAR 24V PNL MT Red Lion Controls |
6 |
|
规格书 |
PAX | Bulk | Active | Tachometer | Up, Down, Quadrature | 34kHz, 50Hz | - | 5 | LED - Red Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 24VAC, 11 ~ 36VDC | External, Front Panel, Programmable | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
LD200400COUNTER LED 4 CHAR 50-250V CHASS Red Lion Controls |
4 |
|
规格书 |
LD | Box | Active | Totalizer | Up, Down, Command, Individual, Quadrature | 50Hz, 25kHz | - | 4 | LED - Red Characters | 2.250" (57.00mm) | Voltage | - | 50 ~ 250VAC | External | - | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LD2T06P0LARGE DIGIT TIME COUNTER Red Lion Controls |
4 |
|
规格书 |
LD | Bulk | Active | Time Counter, Timer | Up, Down, Command, Individual, Quadrature | 50Hz, 25kHz | - | 6 | LED - Red Characters | 2.250" (57.00mm) | Voltage | Relay | Multi-Voltage | External, Front Panel, Programmable | - | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

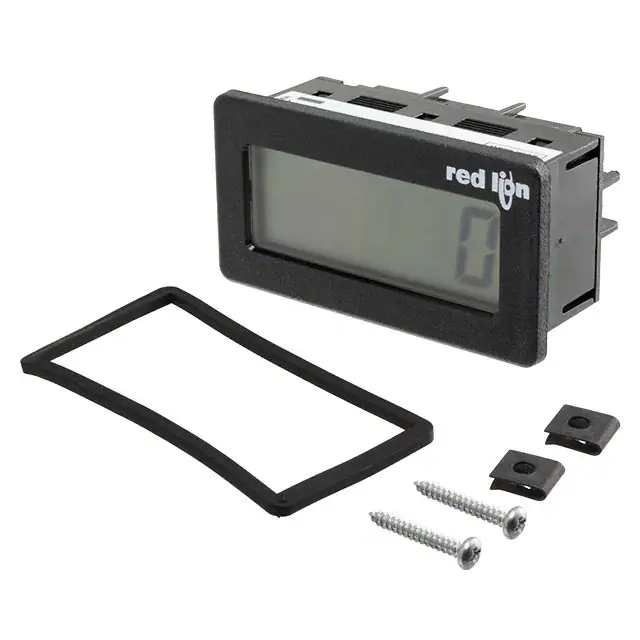

DT800000TACHOMETER LCD 5 CHAR 3.6V PANEL Red Lion Controls |
10 |
|
规格书 |
DITAK 8 | Box | Obsolete | Tachometer | Up | - | - | 5 | LCD - Black Characters | 0.600" (15.20mm) | Voltage | - | Battery, 3.6VDC | Non-Resettable | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

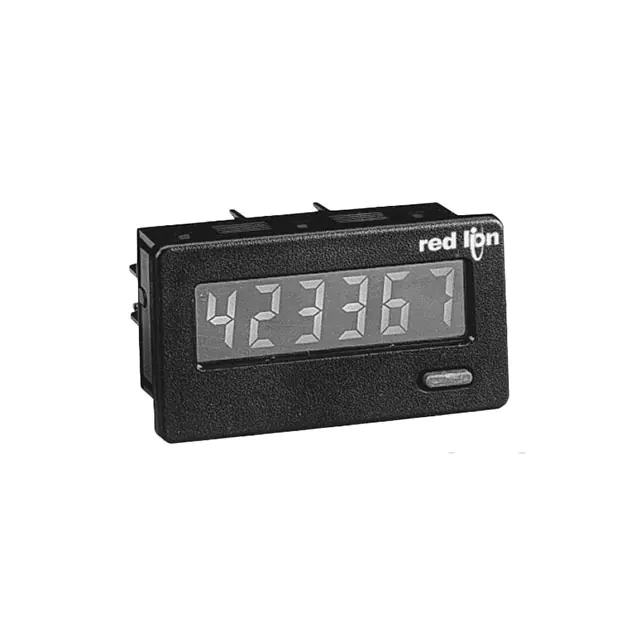

CUB4L810COUNTER LCD 8 CHAR 3.6V PANEL MT Red Lion Controls |
4 |
|
规格书 |
CUB4 | Box | Obsolete | Totalizer | Up | 50Hz, 5kHz | - | 8 | LCD - Green Characters, Backlight | 0.460" (11.70mm) | No Voltage, Voltage | - | Battery, 3.6VDC, 6 ~ 28VDC (Backlight) | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
PAXR0130TACHOMETER LED 5 CHAR 24V PNL MT Red Lion Controls |
3 |
|
规格书 |
PAX | Bulk | Obsolete | Tachometer | Up, Down, Quadrature | 34kHz, 50Hz | - | 5 | LED - Green Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 24VAC, 11 ~ 36VDC | External, Front Panel, Programmable | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

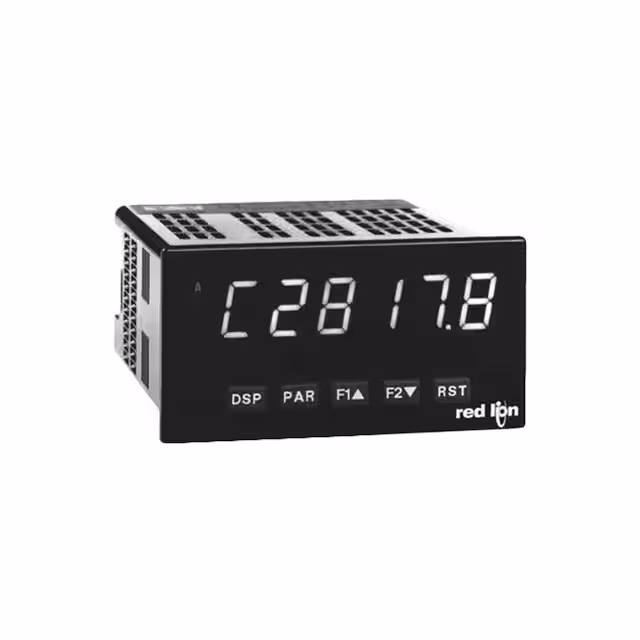

PAXDR100TACHOMETER LED 6 CHAR 85-250V Red Lion Controls |
3 |
|
规格书 |
PAXDR | Box | Obsolete | Tachometer, Totalizer | Up, Down, Command, Quadrature | 44kHz, 50Hz | - | 6 | LED - Green Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 85 ~ 250VAC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
