上传BOM
三端双向可控硅、SCR 输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOC3033SVMTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
3,443 |
|
规格书 |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 5mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
MOC3083SMTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
92,740 |
|
规格书 |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3042TVMTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
1,750 |
|
规格书 |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 4170Vrms | 400 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
|
FOD4116VTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
10,190 |
|
规格书 |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|
FOD4108STRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
1,032 |
|
规格书 |
- | 6-SMD, Gull Wing | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UL |
|
FOD410TVTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
555 |
|
规格书 |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|
|
FOD4118VTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
273 |
|
规格书 |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|

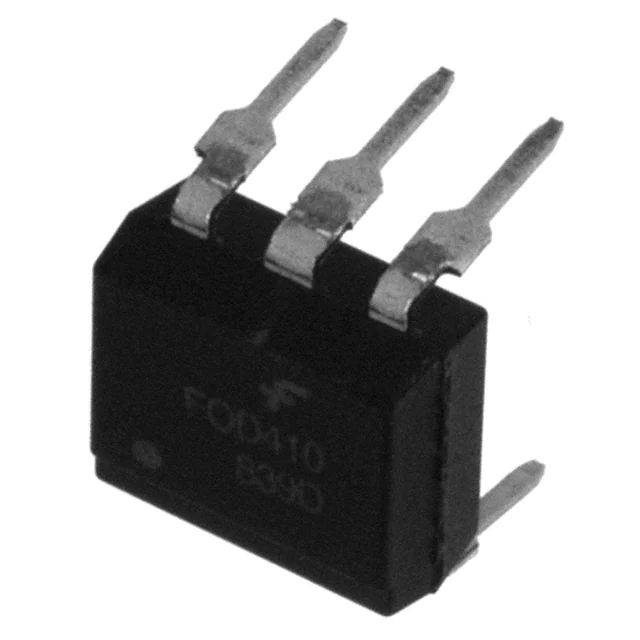

FOD410TRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
418 |
|
规格书 |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL |
|
|
FOD4116TVTRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
859 |
|
规格书 |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL, VDE |
|
|
FOD4116TRIAC OUTPUT OPTOCOUPLER WITH ZE Fairchild Semiconductor |
550 |
|
规格书 |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL |
