逻辑输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 通道数 | 输入 - 侧 1/侧 2 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 输出类型 | 电流 - 输出/通道 | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP5701(D4,EX36 PB-F DRIVER COUPLER 0.6A SO6 Toshiba Semiconductor and Storage |
500 |
|
规格书 |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 600 mA | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 25mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
TLP2710(EHI SPEED LOGIC OUTPUT OPTOCOUPLE Toshiba Semiconductor and Storage |
235 |
|
规格书 |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 13ns | 1.9V (Max) | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP5702H(D4-TP,EGATE DRIVE COUPLER; HIGH TEMP; R Toshiba Semiconductor and Storage |
4,232 |
|
规格书 |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | - | - | 200ns, 200ns | 37ns, 50ns | 1.55V | 20mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2719(TP4,EOPTOCOUPLER HI SPEED LOGIC OUTPU Toshiba Semiconductor and Storage |
6,191 |
|
规格书 |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 8 mA | 1MBd | 800ns, 800ns | - | 1.6V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO |
|
|
TLP5705H(D4-TP,EGATE DRIVE COUPLER; HIGH TEMP; R Toshiba Semiconductor and Storage |
754 |
|
规格书 |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | - | - | 200ns, 200ns | 37ns, 50ns | 1.55V | 20mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|

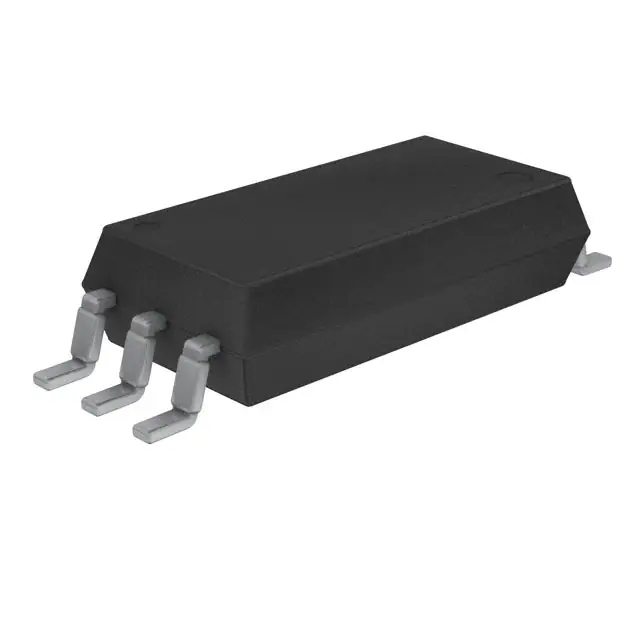

TLP2770(EOPTOISO 5KV TRI-STATE S06L Toshiba Semiconductor and Storage |
113 |
|
规格书 |
- | 6-SOIC (0.295", 7.50mm Width) | Bulk | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 60ns, 60ns | 1.3ns, 1ns | 1.5V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
.JPG)
|
TLP2367(EHIGH SPEED LOGIC OUTPUT OPTOCOUP Toshiba Semiconductor and Storage |
126 |
|
规格书 |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 50MBd | 20ns, 20ns | 2ns, 1ns | 1.6V | 15mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2362(V4-TPL,EOPTOISO 3.75KV OPEN COLL SO6-5 Toshiba Semiconductor and Storage |
3,116 |
|
规格书 |
- | - | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10MBd | 100ns, 100ns | 30ns, 30ns | 1.55V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | - | - |
|
|
TLP2358(TPR,E)X36 PB-F PHOTOCOUPLER Toshiba Semiconductor and Storage |
5,551 |
|
规格书 |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 250ns, 250ns | 15ns, 12ns | 1.55V | 20mA | 3V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2363(TPL,EHIGH SPEED PHOTOCOUPLER; 10MBD; Toshiba Semiconductor and Storage |
4,067 |
|
规格书 |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10Mbps | 80ns, 80ns | 23ns, 7ns | 1.5V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO, 5 Lead |
