上传BOM
逻辑输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 通道数 | 输入 - 侧 1/侧 2 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 输出类型 | 电流 - 输出/通道 | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFH6742-X006OPTOISO 5.3KV OPEN DRAIN 8DIP Vishay Semiconductor Opto Division |
0 |
|
规格书 |
- | 8-DIP (0.400", 10.16mm) | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 10kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
SFH6701-X009OPTOISO 5.3KV PUSH PULL 8SMD Vishay Semiconductor Opto Division |
0 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|

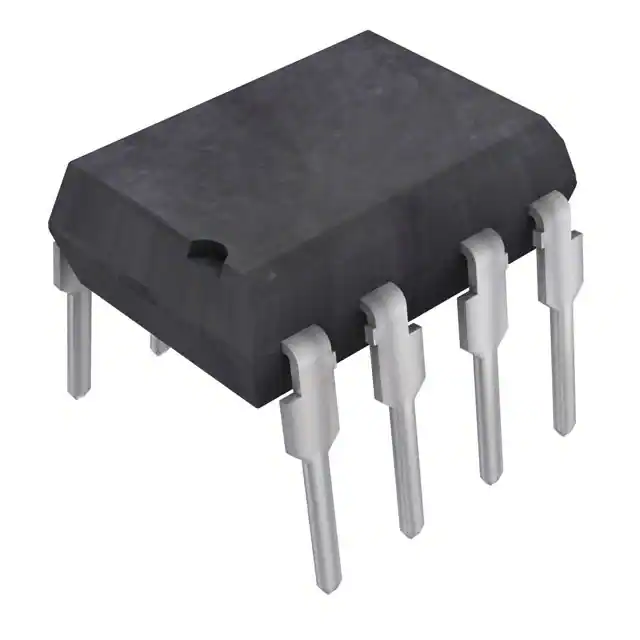

SFH6702OPTOISO 5.3KV PUSH PULL 8DIP Vishay Semiconductor Opto Division |
0 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|

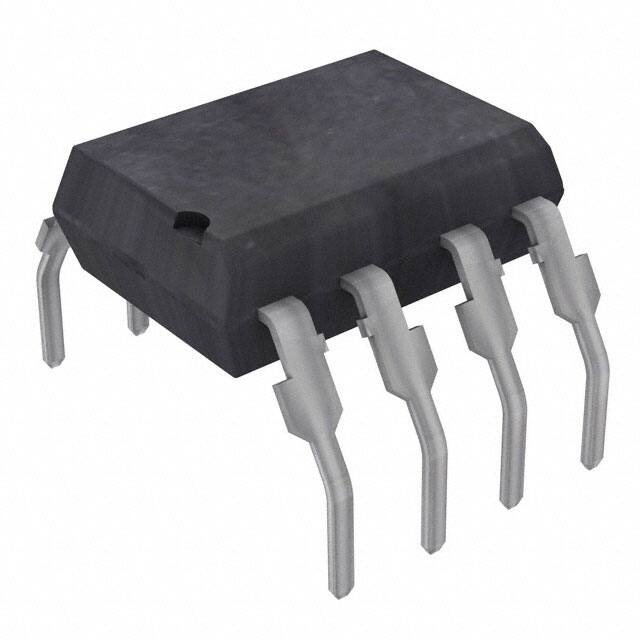

SFH6702-X006OPTOISO 5.3KV PUSH PULL 8DIP Vishay Semiconductor Opto Division |
0 |
|
规格书 |
- | 8-DIP (0.400", 10.16mm) | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
SFH6702-X007OPTOISO 5.3KV PUSH PULL 8SMD Vishay Semiconductor Opto Division |
0 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
|
SFH6702-X009OPTOISO 5.3KV PUSH PULL 8SMD Vishay Semiconductor Opto Division |
0 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
SFH6705OPTOISO 5.3KV OPN COLLECTOR 8DIP Vishay Semiconductor Opto Division |
0 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Open Collector | 25 mA | 5MBd | 300ns, 300ns | 25ns, 4ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
SFH6705-X007OPTOISO 5.3KV OPN COLLECTOR 8SMD Vishay Semiconductor Opto Division |
0 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Open Collector | 25 mA | 5MBd | 300ns, 300ns | 25ns, 4ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
|
SFH6711OPTOISO 5.3KV PUSH PULL 8DIP Vishay Semiconductor Opto Division |
0 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 2.5kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
SFH6711-X007OPTOISO 5.3KV PUSH PULL 8SMD Vishay Semiconductor Opto Division |
0 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 2.5kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
